6.

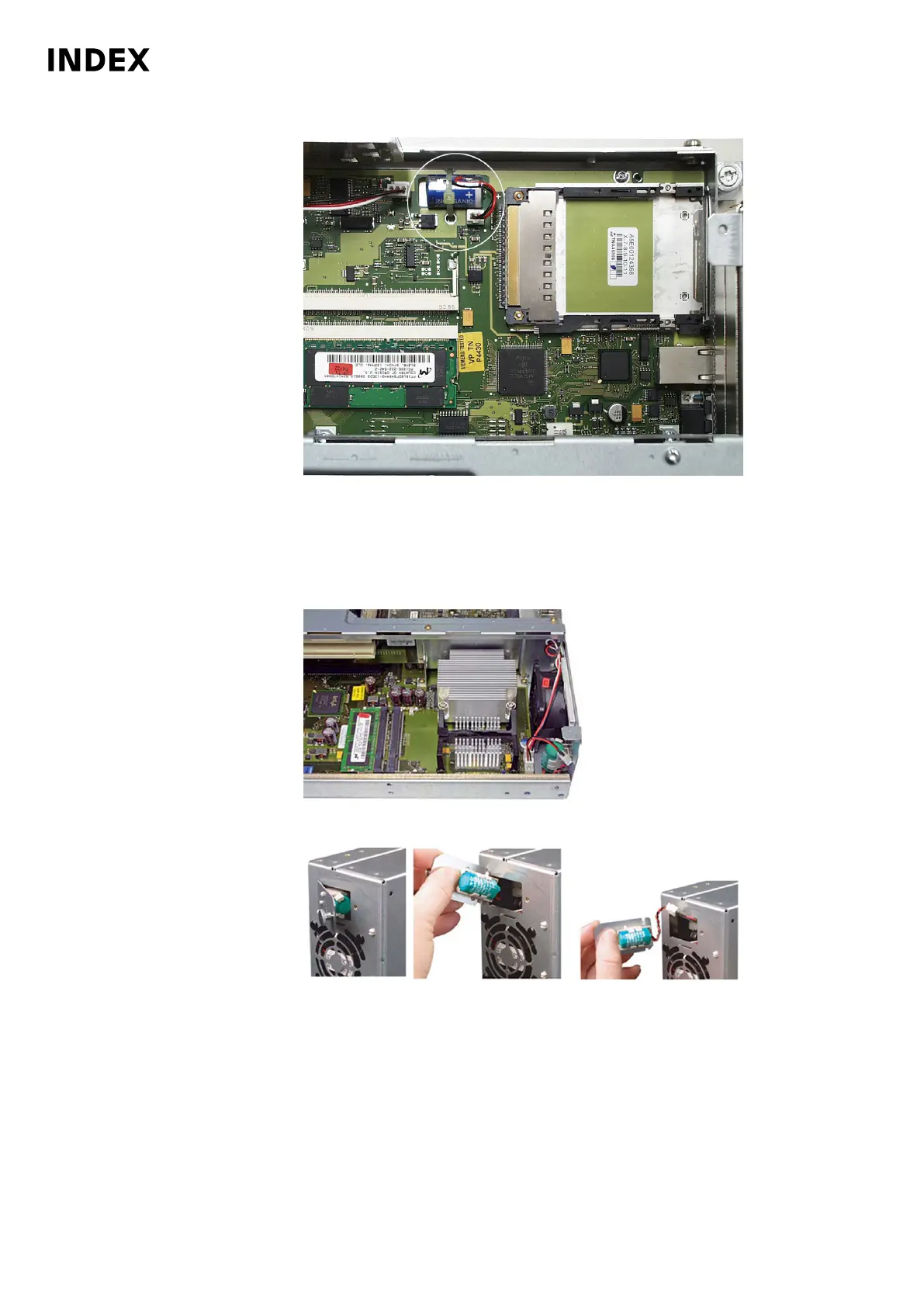

Example: PCU50.1 and PCU50.2 battery replacement
Replace battery on PCU50.1 and PCU50.2. Pull off battery connector, remove
battery and replace it with a new one. Reconnect connector. Make sure of the
correct polarity (red = +) when installing. Indicate the date of the next
interval with the appropriate inspection sticker on the battery interval label.
7.
Example: PCU 50.3 battery replacement
Replace battery on PCU 50.3. Pull off battery connector, remove battery and
replace it with a new one. Reconnect connector. Make sure of the correct
polarity (red = +) when installing. Indicate the date of the next interval with
the appropriate inspection sticker on the battery interval label.
Maintenance Summary - 4.000 Operating hours
106
Maintenance Instructions
C100
LP1602.10091 - 05.06.2019
