20.

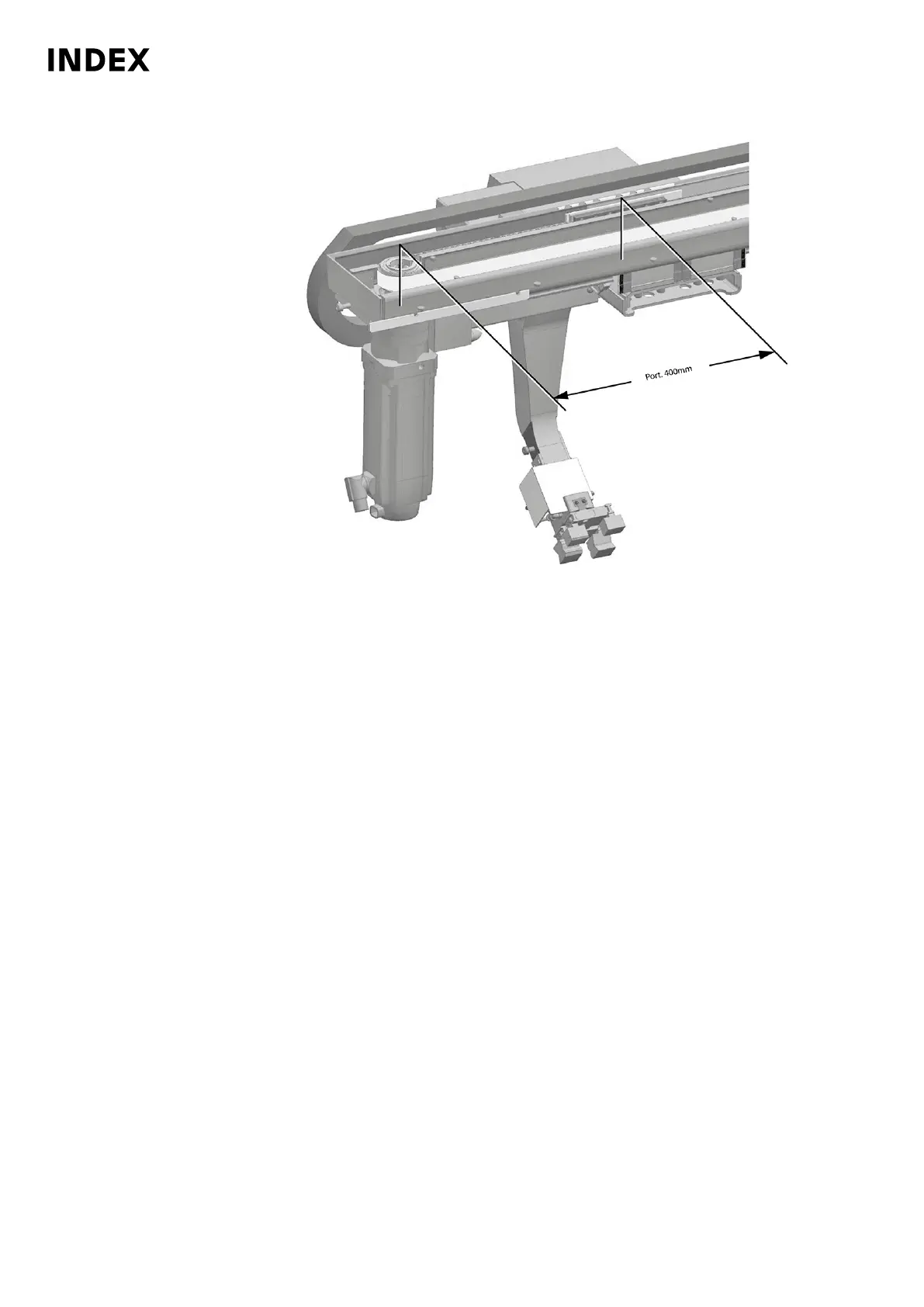

Example: Distance between guide pulley and belt clamping
1
Guide pulley at drive
2 Belt clamping
Replace Z8 gantry type receiver belt. The value of 400mm listed in the table
refers to the distance between the center of the guide pulley on drive 1 and the
center of the belt clamping of this unit 2 (see example: distance between guide
pulley and belt clamping). This value or distance is necessary to accurately
adjust the belt tension.
21. Measure belt tension (frequency meter) and adjust belt.
22. Replace Y1 belt.
23. Measure belt tension (frequency meter) and adjust belt.
24. Replace Y2 belt.
25. Measure belt tension (frequency meter) and adjust belt.
26. Replace the belt of the work area door drive.
Maintenance Summary - 4.000 Operating hours
86
Maintenance Instructions
C100
LP1602.10091 - 05.06.2019
