infaco F3020 - Blade Replacement and Cutting Head Cleaning; Changing the Blade; Cutting Head Cleaning

33
Always disconnect the pruning shears from the power cord when handling
for other purposes than pruning.

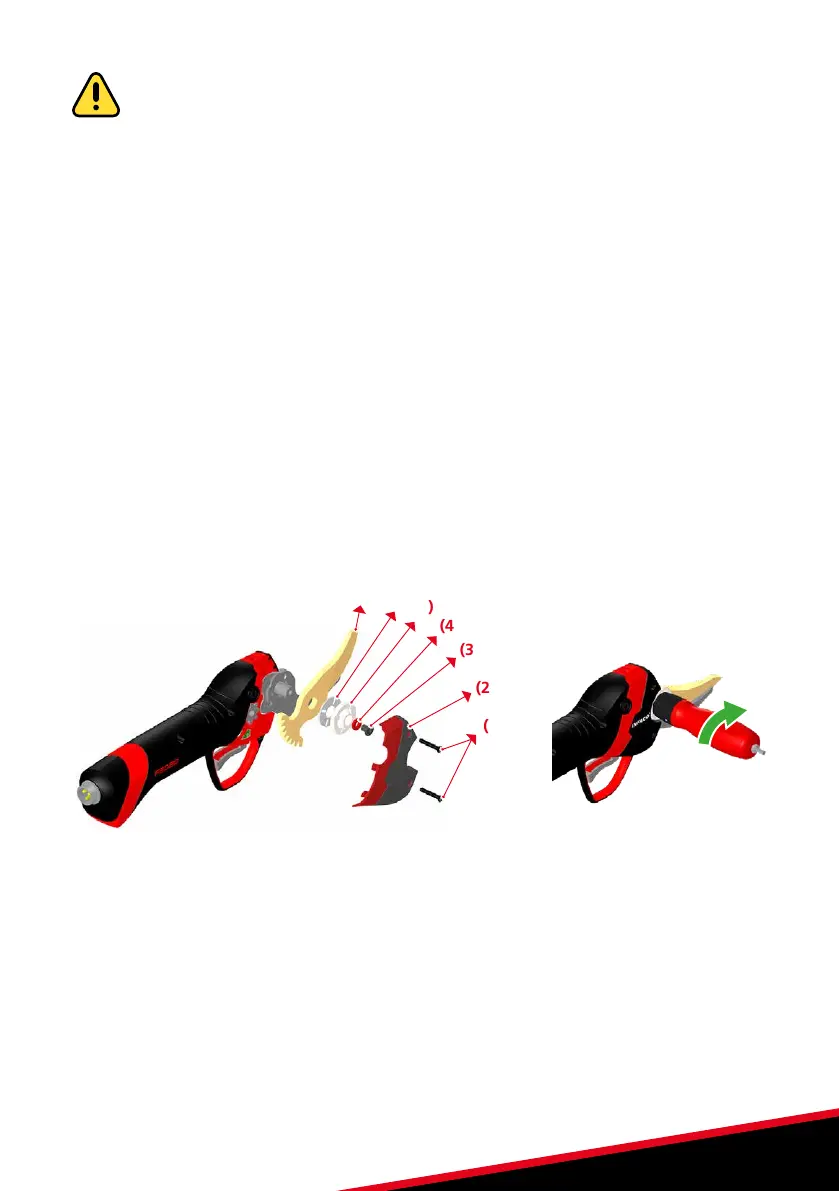

Changing the blade
1. Using the tool cross tip, unscrew the 2 screws (1) and remove the cover (2).
2. Using the tool hex tip, remove the screw (3) and the elastomer washer (4).
3. Using the tool, remove the nut (5) and the needle stop (6).
4. Remove the blade (7). Replace the blade.
5. If necessary, clean around the pinion (warning: do not use chemicals).
6. Fit the new blade on the pruning shears in the closed position.
7. Fit the needle stop (6) then screw and adjust the nut (5) tightening until the tool is
triggered (see page 30).
8. Fit the elastomer washer (4) on the screw (3) and screw in the screw (3).
9. If necessary, lubricate the blade teeth using graphite grease.
10. Fit the cover (2) on the pruning shears and screw in the 2 screws (1).
11. Adjust the blade overlap if necessary (see "Blade overlap" section on page 18).
12. Lubricate as indicated on p32.
Cleaning and disinfecting the cutting head
It is also possible to clean and/or disinfect the cutting head to prevent any diseases spreading
on the wood. To do that, we recommend avoiding the use of corrosive products that could
damage the device. Do not hesitate to contact INFACO for the choice of products to be
used.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
CLICK!
