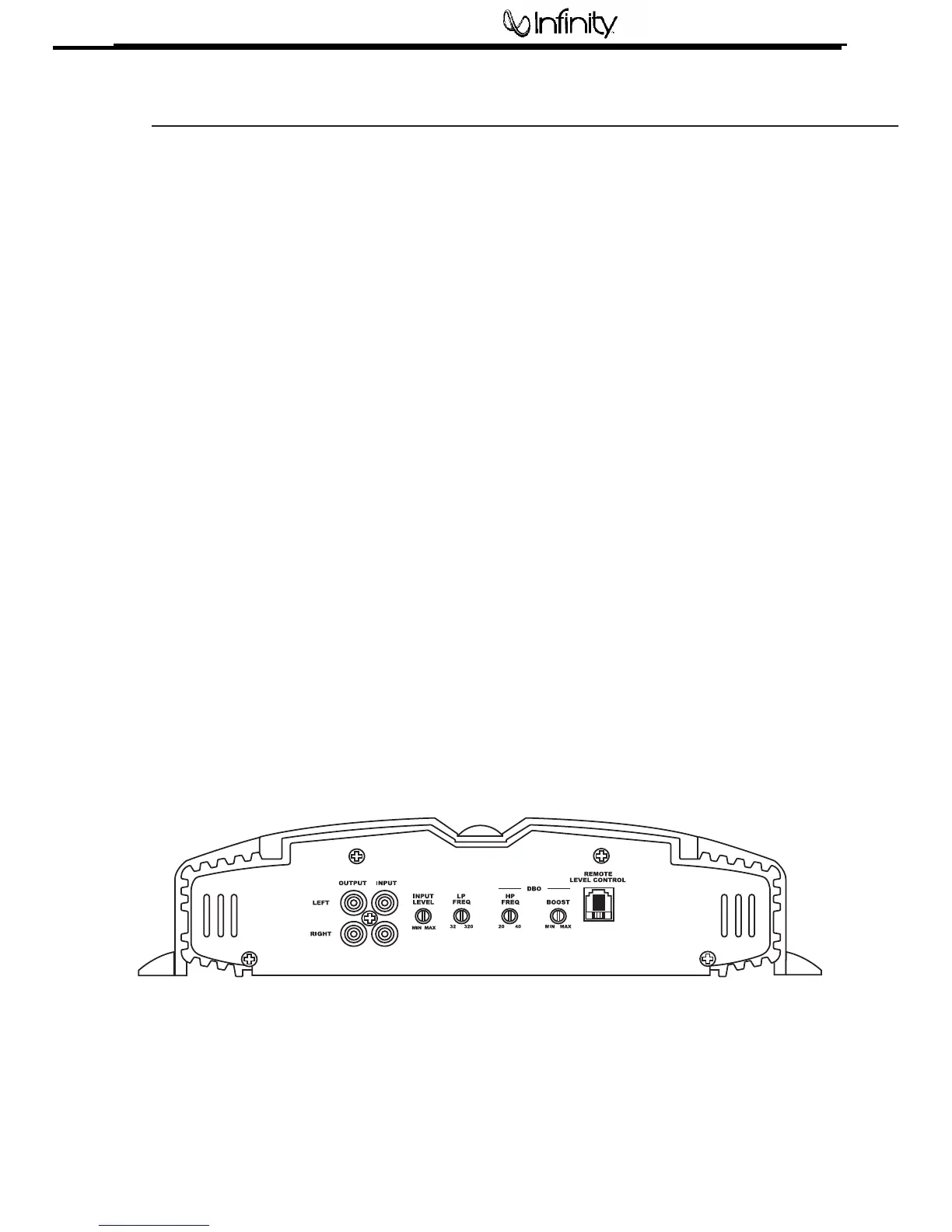

Figure 13. Control end panel.
SETTING INPUT SENSITIVITY
1. Initially turn the INPUT LEVEL control(s) to
minimum (counterclockwise).
2. Reconnect the (–) negative lead to the vehi-
cle’s battery. Apply power to the audio system
and play a dynamic music track.
3. On the source unit, increase the volume
control to 3/4 volume. Slowly increase the
INPUT LEVEL control(s) toward three o’clock
until you hear slight distortion in the music.
Then reduce the INPUT LEVEL slightly until
distortion is no longer heard.
NOTE: After the source unit is on, blue LEDs (on
the top panel) will light, indicating the amplifier
is on. If not, check the wiring, especially the
remote connection from the source unit. Also
refer to “Troubleshooting” on the page 7.
REMOTE LEVEL CONTROL (OPTIONAL)
All three Reference subwoofer amplifiers and
the 5760a amplifier have inputs for an optional
remote level control (100rc). This will allow the
subwoofer level to be adjusted from the listening
position. Connect the optional remote level
control using the RJ-11 jack on the side of the
amplifier. Install the control module in the front
of the vehicle within easy reach of the driver.
Both the underside of the dash and the center
console are suitable locations. Refer to the
mounting instructions accompanying the 100rc.
AUX OUTPUT
Reference amplifiers are equipped
with full-range outputs that can be used to
connect additional amplifiers.
NOTE: When using the low- or high-level inputs,
the AUX outputs can be used to pass a full-range
line-level signal to another amplifier.
Power Amplifier
Reference 610a/611a
