890 HD BF INSTALLATION INSTRUCTIONS

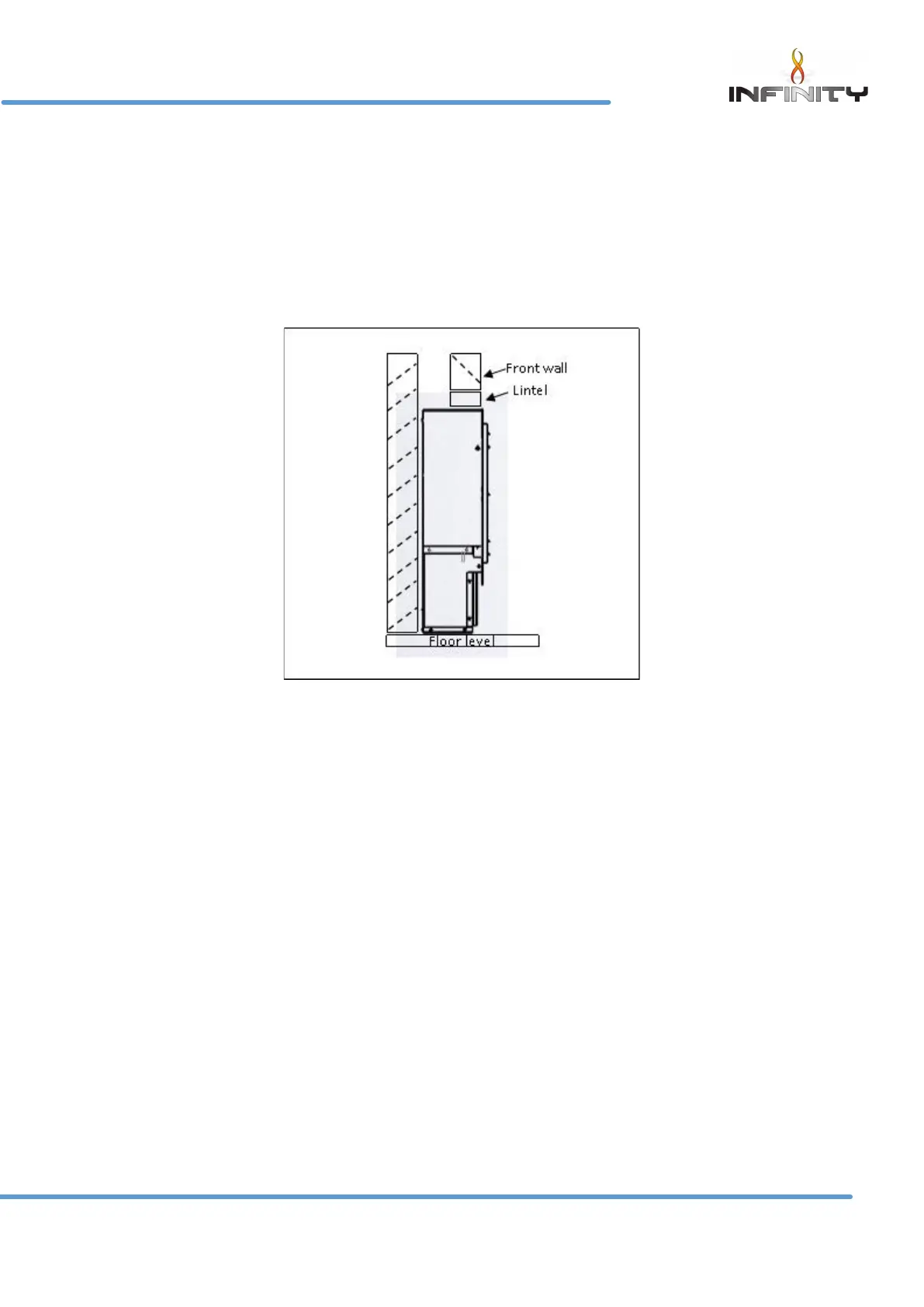

Open the firebox aperture as of the sizes stipulated in the previous section. Please note the firebox height
from the floor may well vary dependent on the finished height the customer wishes to achieve or the
fireplace that it is being installed with. The minimum finished height from the bottom of the trim to floor level
is 187mm. Slide the firebox back into the chamber and secure the firebox in place.
The 890 HD can be installed using three different methods when going hole in the wall and can also be
installed within a fireplace.
A- Hole in the wall using non-combustible slips or heat resistant plaster edge finish,
B- Within a 25mm rebated fireplace.
C- Hole in the wall Zero Clearance Kit.
