890 HD BF INSTALLATION INSTRUCTIONS

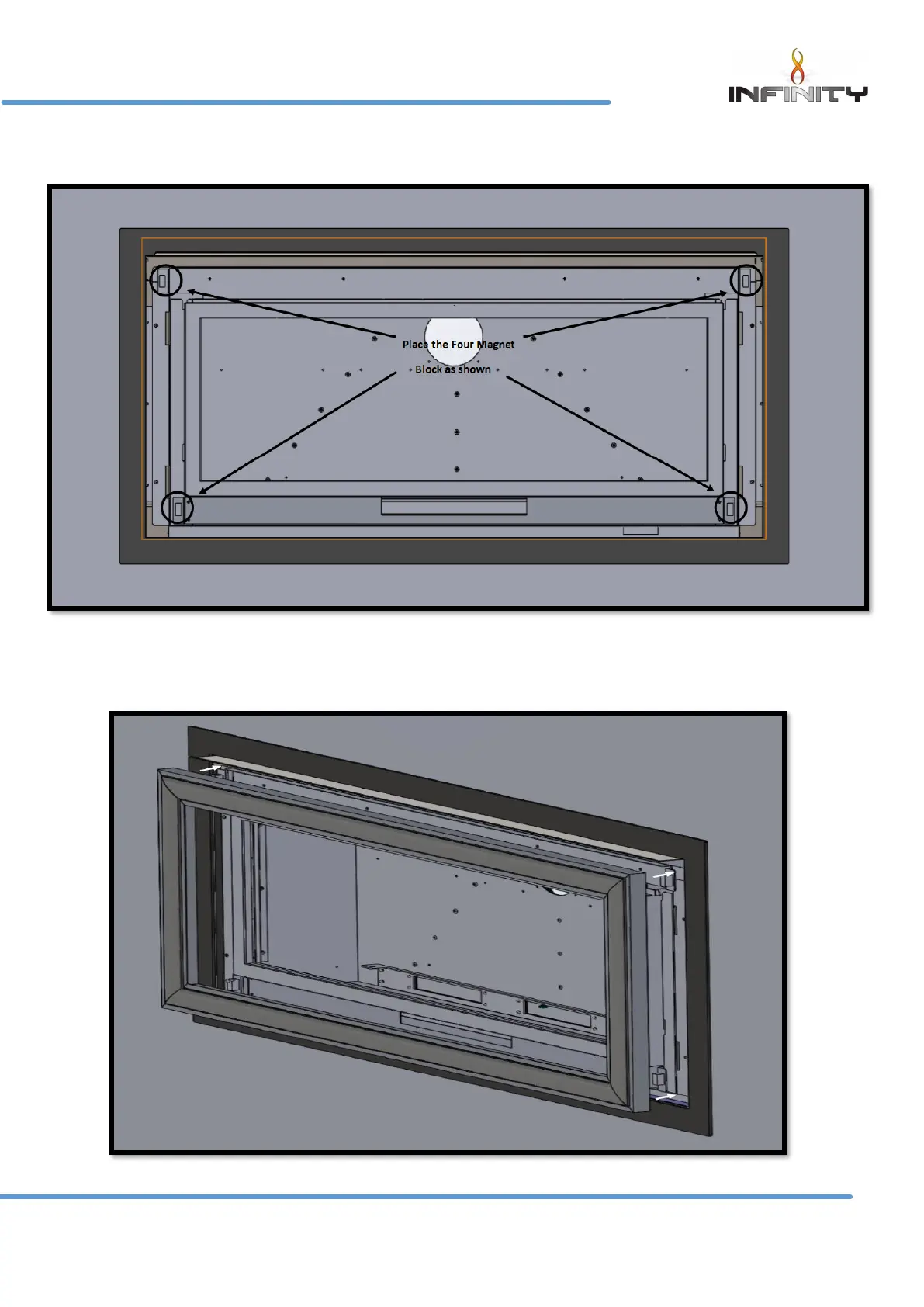

Position the four block magnets upon the trim top bracket and the bottom cover plate with the raised areas
as shown below.
Locate the inner fascia below the deflector plate and within the outer trim assembly.
