2
CHOOSING A MOUNTING LOCATION
Choose a mounting location that doesn’t interfere
with cargo, fold-down rear seats, or the trunk lid.
The best location is usually a corner of the trunk
or cargo area, as shown in Figures 1 and 2.
These locations, in addition to being out of the
way, will provide the best sonic reproduction in
the 60Hz to 100Hz range because the woofer out-
put will be “corner loaded”against the vehicle’s
walls. In any case, BassLink must not interfere
with the safe operation of the vehicle.

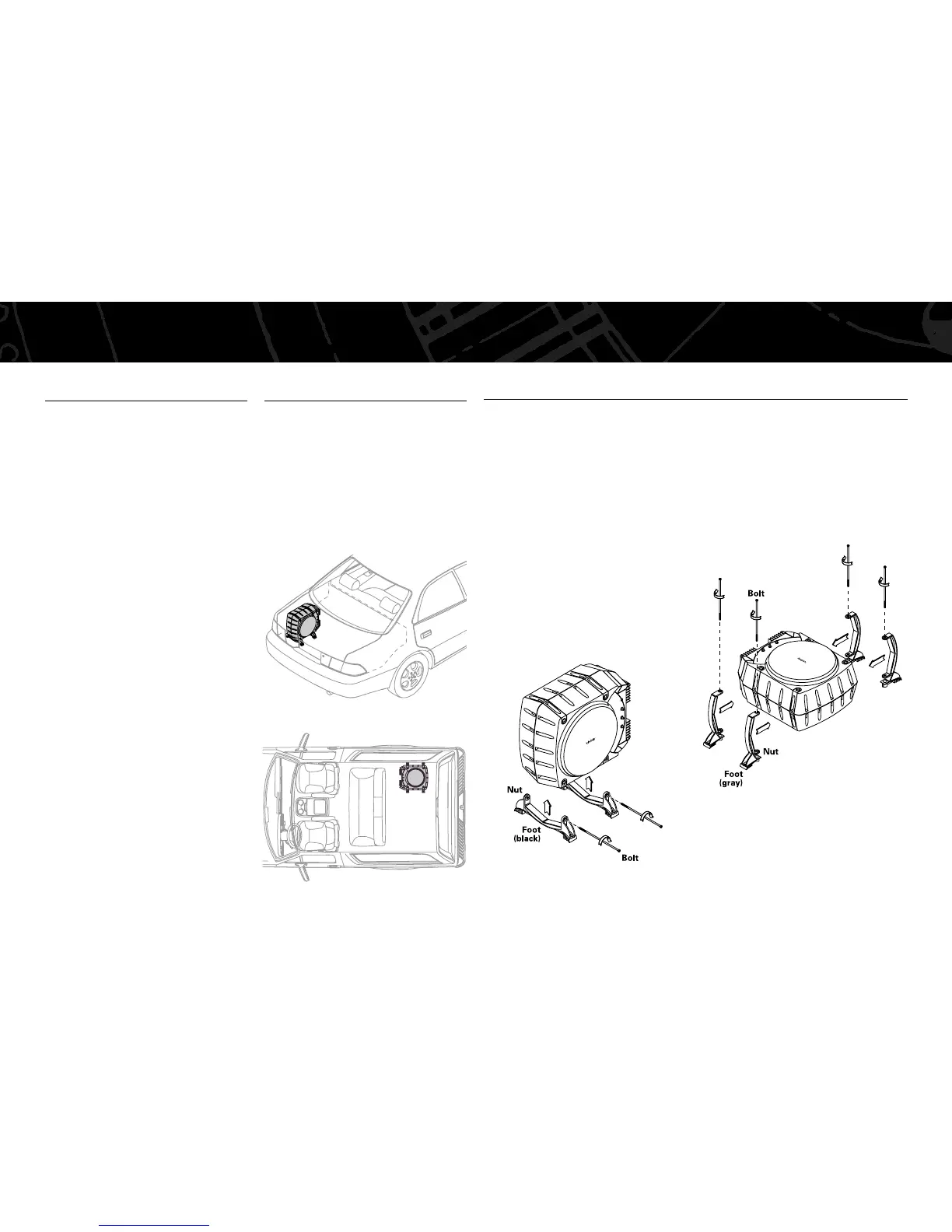

Figure 1. BassLink in a car’s trunk.
Figure 2. BassLink in an SUV’s cargo area.
INTRODUCTION
HEARING WARNING!
Playing loud music in a vehicle can permanently
damage your hearing, as well as hinder your
ability to hear traffic. We recommend using low
volume levels while driving. Infinity accepts no
liability for hearing loss, bodily injury or property
damage resulting from the use or misuse of
this product.
YOUR CAR AND BASS REPRODUCTION
Depending on the interior volume of your
vehicle and the dimensions of the passenger
compartment and cargo area, reproduced
frequencies below 80Hz may be boosted by
nearly 12dB per octave as frequency decreases.
This effect, known as the vehicle’s “transfer
function” or “cabin gain,” plays an important
part in shaping the overall in-car response of
the BassLink.
BassLink is designed to work with your vehicle’s
other speakers to reproduce frequencies below
100Hz. Moreover, depending on orientation and
mounting location, BassLink may be “in phase” or
“out of phase” with those speakers. The resulting
conditions, known as constructive and destructive
interference, also play a role in shaping the total
frequency response of your system.
Fortunately, BassLink has controls to optimize
both of these conditions and their adjustment is
explained later in the manual.
CAUTION: Make sure mounting screws will not
puncture wiring harnesses, brake or fuel lines, or
the vehicle’s fuel tank. Some or all of these may
be located behind or under the mounting surface.
Note: Each enclosed mounting foot has a captive
nut for foot attachment to BassLink. Orient each
foot so its nut faces BassLink’s back. Enclosed
bolts may then be passed through BassLink using
front or top holes and fastened to the nuts in the
back or bottom. See Figures 3 and 4 for details.
VERTICAL MOUNTING
Slide the two (black) vertical mounting feet over the
bottom of BassLink until they snap into the indenta-
tions, as shown in Figure 3. Place BassLink (with its
feet) so the controls face the trunk or cargo interior
for easy adjustment. At each foot, insert a supplied
bolt through holes and tighten with a screwdriver.
Securely mount BassLink to the mounting surface
with the four enclosed tapping screws.
Figure 3. Vertical mounting of BassLink.
HORIZONTAL MOUNTING
Slide the four (gray) horizontal mounting feet over
the sides of BassLink until they snap into the
indentations, as shown in Figure 4.
Place BassLink (with its feet) so controls face up
for easy adjustment. At each foot, insert a supplied
bolt through holes and tighten with a screwdriver.
Securely mount BassLink to the mounting surface
with the four enclosed tapping screws.
Figure 4. Horizontal mounting of BassLink.
MOUNTING BASSLINK
