Infinity BU-2 - Page 7

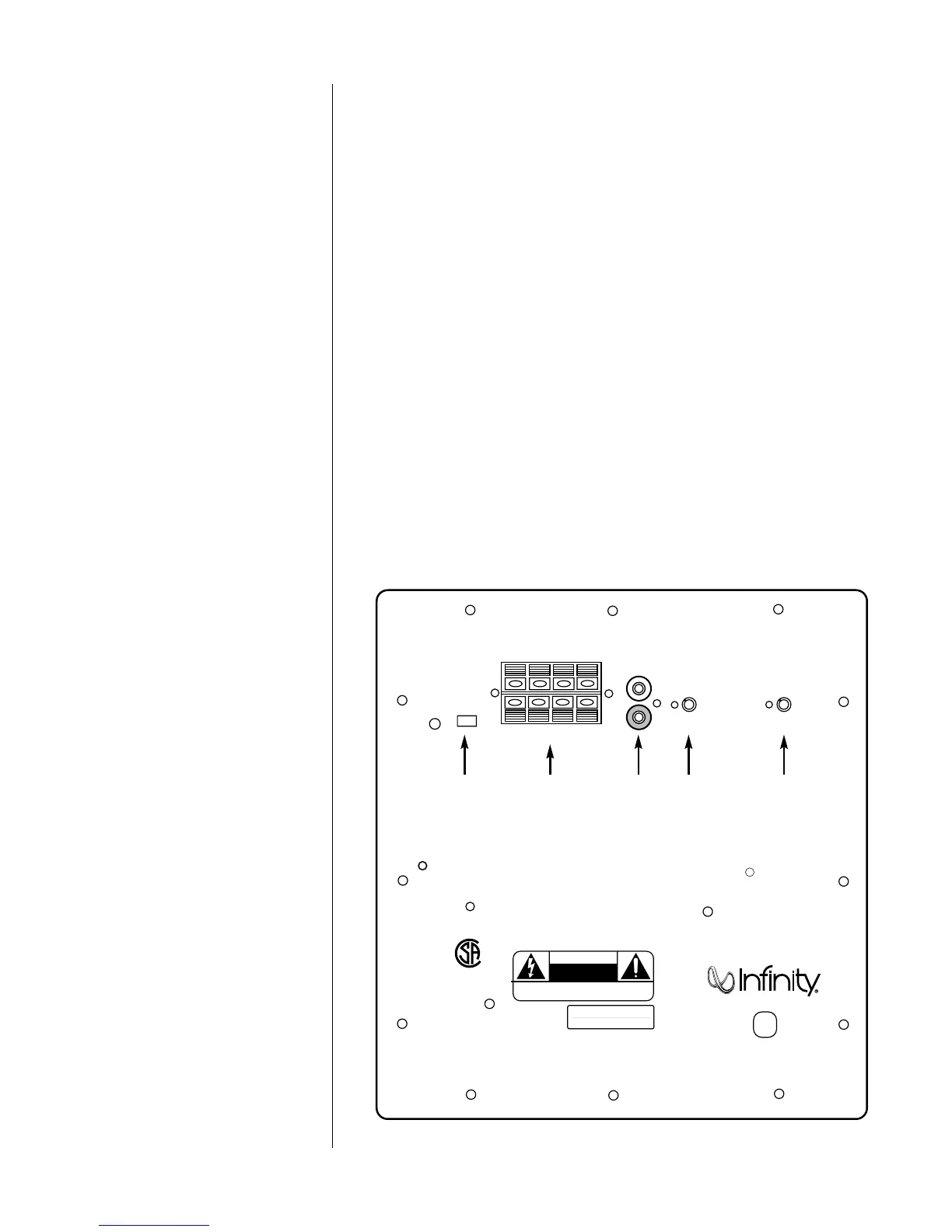

The BU-2 subwoofer may be connected to your system
using the HIGH LEVEL INPUTS (4) on the plate located on
the rear panel of the subwoofer. Use ordinary lamp cord
maintaining proper polarity (+ to + and - to -). Attach the
lamp cord to the left and right HIGH LEVEL INPUTS on
the subwoofer and the other ends to the proper left and right
OUTPUTS on your amplifier or receiver (see Figure 5).
If you plan to use two subwoofers (one for the left and _e
other for the right channel) connect wires from the left and
right OUTPUT on your power amplifler or receiver and- ....
attach the other ends to the corresponding HIGH LEVEL
INPUTS on each subwoofer. Observe polarity (see Figure 6).
AMPLIFIER
"" OUTPUTS
" RIGHT LEFT
r+ -r-<+7
. :,e_e
@
BU-2SUBWOOFER
Figure 5
AMPLIFIER
OUTPUTS
RIGHT LEFT
r+ -IF-< +l
Figure 6
@
m
0
0 IR .m- °,.
IIIIIIIIIIIIIIIiIIIIIIIIII
LEFTBU-2SUBWOOFER
AMPLIFIER
OUTPUTS
RIGHT LEFT
f+ -IF-< +l
Depending on whether you are using one or two BU-2
subwoofers, connecting your satellites can be accomplished in
one of two ways. If you are using a single BU-2 with a pair of
satellites, connect them as shown in Figure Z
@
n
.'-.o
_ lr
° 13
BU-2
SUBWOOFER
@
RIGHTSATELLITE
Figure 7
LEFTSATELLITE
