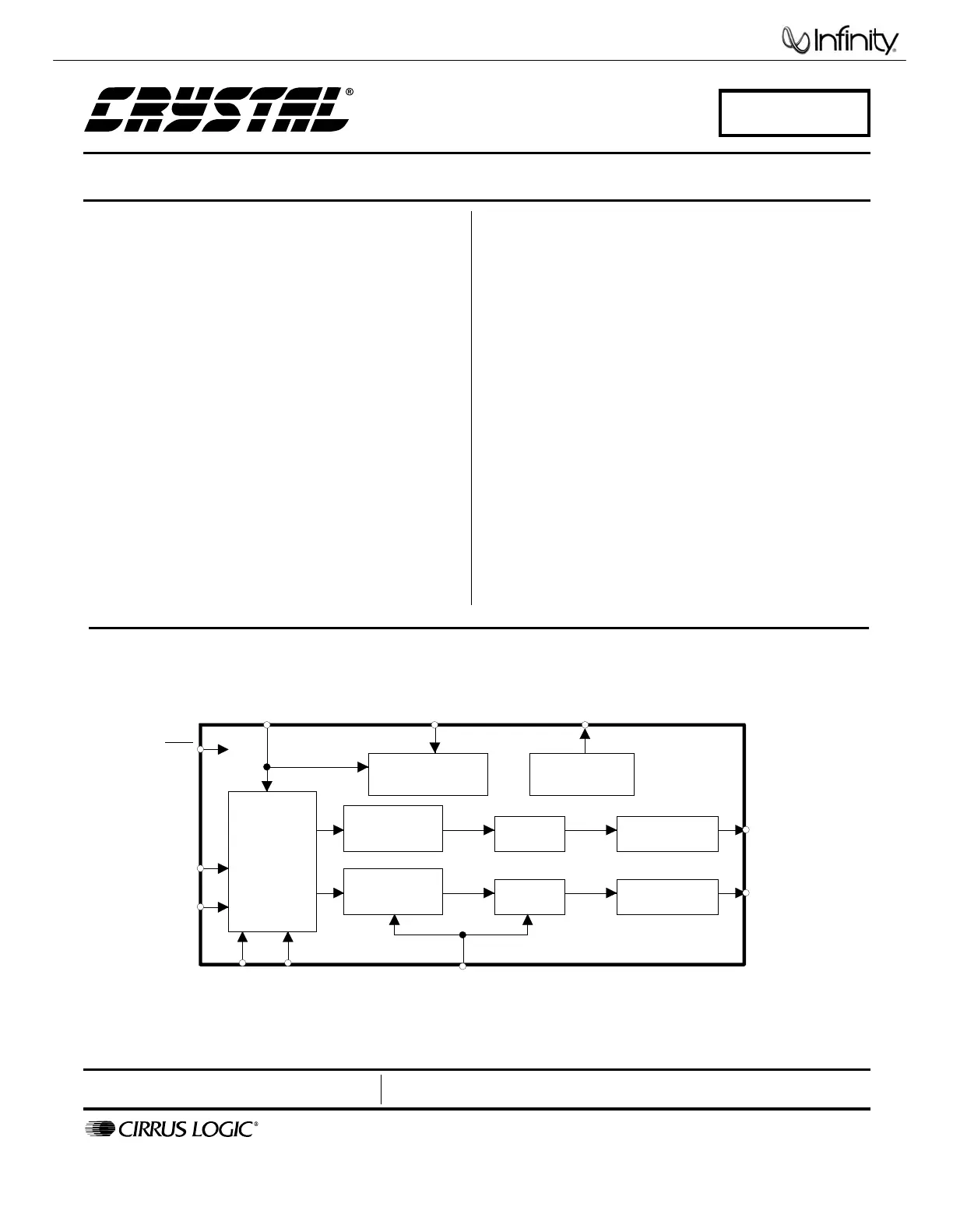

CS4340
24-Bit, 96 kHz Stereo DAC for Audio
Features
l Complete Stereo DAC System: Interpolation,
D/A, Output Analog Filtering
l 101 dB Dynamic Range
l 91 dB THD+N
l Low Clock Jitter Sensitivity
l +3 V to +5 V Power Supply
l Filtered Line Level Outputs
l On-Chip Digital De-emphasis for 32, 44.1,
and 48 kHz
l 30 mW with 3 V supply
l Popguard
®
Technology for Control of Clicks
and Pops
Description
The CS4340 is a complete stereo digital-to-analog sys-
tem including digital interpolation, fourth-order delta-
sigma digital-to-analog conversion, digital de-emphasis
and switched capacitor analog filtering. The advantages
of this architecture include: ideal differential linearity, no
distortion mechanisms due to resistor matching errors,
no linearity drift over time and temperature and a high
tolerance to clock jitter.
The CS4340 accepts data at audio sample rates from
2 kHz to 100 kHz, consumes very little power, and oper-
ates over a wide power supply range. The features of the
CS4340 are ideal for DVD players, CD players, set-top
box and automotive systems.
ORDERING INFORMATION
CS4340-KS 16-pin SOIC, -10 to 70 °C
CS4340-BS 16-pin SOIC, -40 to 85 °C
CDB4340 Evaluation Board
I
∆Σ
DAC
Analog Filter
Serial
Input
Interface
Interpolation
Filter
Analog Filter
MUTEC
AOUTL
AOUTR
RST
LRCK
SDATA
MCLK
∆Σ
External
Mute Control
SCLK/DEM1
DAC
Interpolation
Filter
De-emphasis
DEM0
DIF0 DIF1
NOV ‘00
DS297PP3
