CS4340
DS297PP3 13

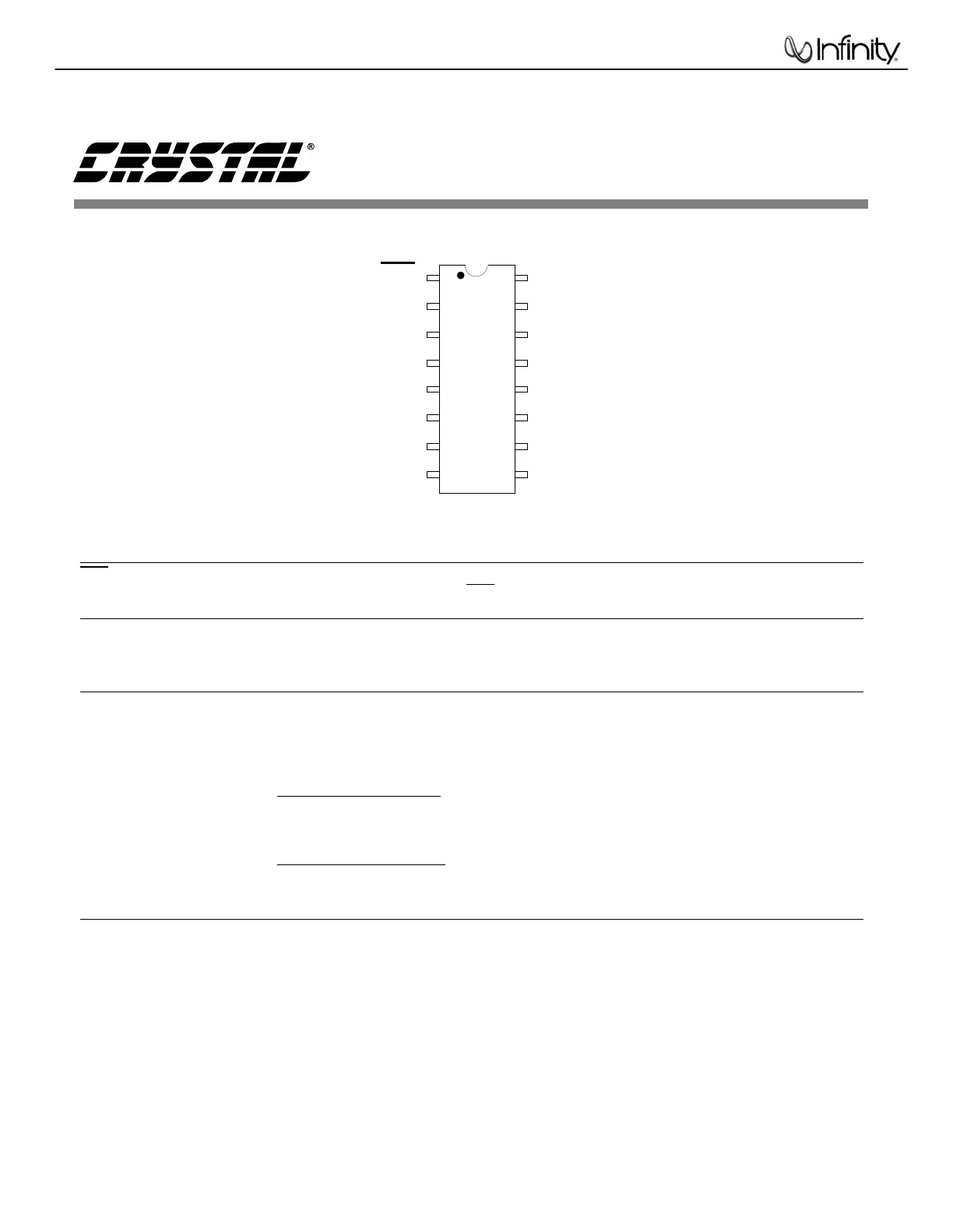

3. PIN DESCRIPTION
RST 1 Reset (
Input
) - The device enters a low power mode and all internal state machines are reset to
the default settings when low. RST
should be held low during power-up until the power supply,
master and left/right clocks are stable.
SDATA 2 Serial Audio Data (
Input
) - Two’s complement MSB-first serial data is input on this pin. The
data is clocked into SDATA via the serial clock and the channel is determined by the Left/Right
clock. The required relationship between the Left/Right clock, serial clock and serial data is
defined by the DIF1-0 pins. The options are detailed in Figures 16-19.
SCLK 3 Serial Clock (
Input
) - Clocks the individual bits of the serial data into the SDATA pin. The
required relationship between the Left/Right clock, serial clock and serial data is defined by the
DIF1-0 pins. The options are detailed in Figures 16-19.
The CS4340 supports both internal and external serial clock generation modes. Internal SCLK
mode is used to gain access to extra de-emphasis modes.
Internal Serial Clock Mode
- In the Internal Serial Clock Mode, the serial clock is internally
derived and synchronous with the master clock and left/right clock. The SCLK/LRCK frequency
ratio is either 32, 48, or 64 depending upon the DIF1-0 pins as shown in Figures 16-19. Opera-
tion in this mode is identical to operation with an external serial clock synchronized with LRCK.
External Serial Clock Mode
- The CS4340 will enter the External Serial Clock Mode whenever
16 low to high transitions are detected on the SCLK pin during any phase of the LRCK period.
The device will revert to Internal Serial Clock Mode if no low to high transitions are detected on
the SCLK pin for 2 consecutive periods of LRCK.
152
143
134
161
116
107
98
125
Reset RST MUTEC Mute Control
Serial Data SDATA AOUTL Left Analog Output
Serial Clock / De-emphasis SCLK/DEM1 VA Analog Power
Left/Right Clock LRCK AGND Analog Ground
Master Clock MCLK AOUTR Right Analog Output
Digital Interface Format DIF1 REF_GND Reference Ground
Digital Interface Format DIF0 VQ Quiescent Voltage
De-emphasis DEM0 FILT+ Positive Voltage Reference
