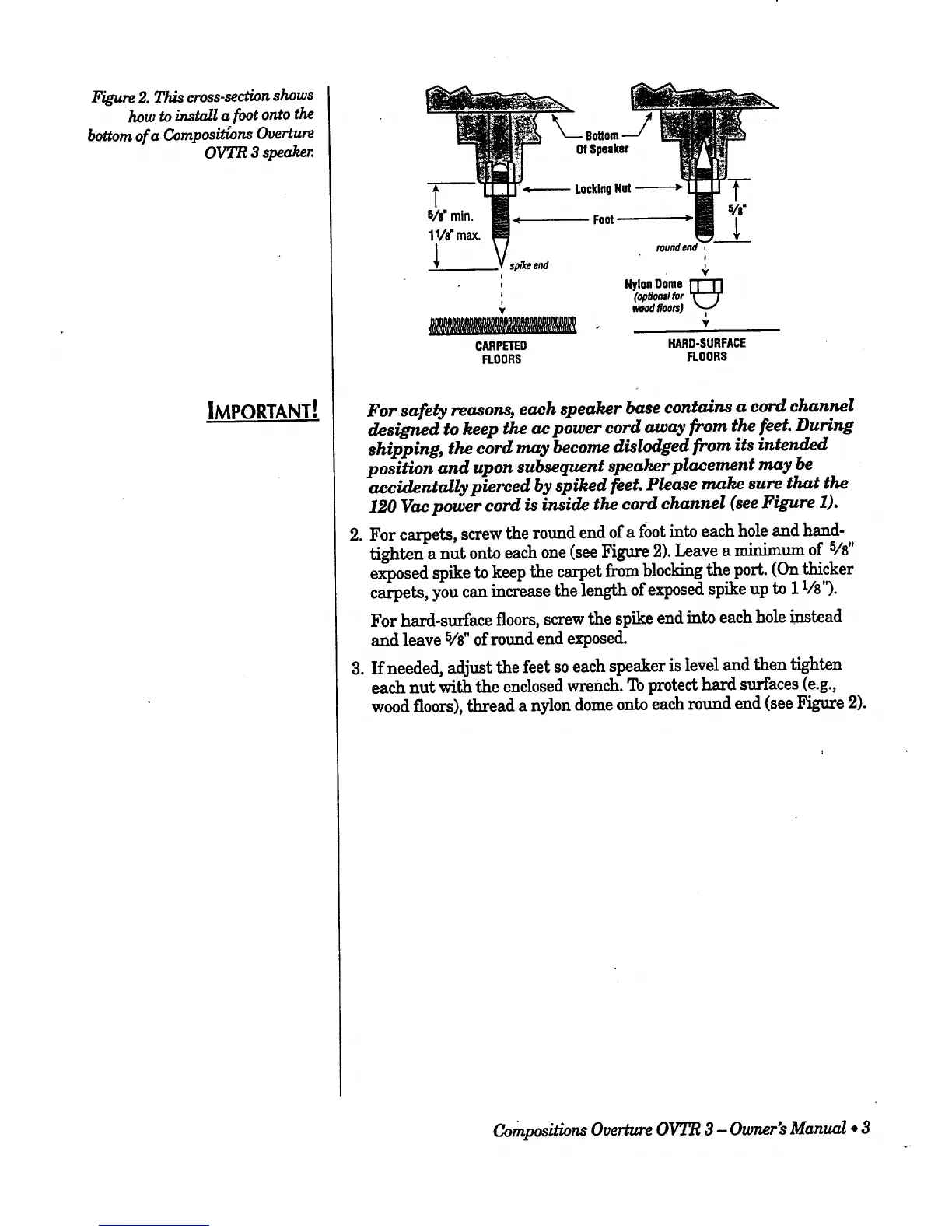

Figure 2. This cross-section shows
how to install a foot onto the
bottom of a Compositions Overture
OVTR 3 speaker.
IMPORTANT!
k_- BottomJ
OfSpeaker
•<_1___ LockingNut _ t
5/e"min. < Foot • 5/8"
11/a"max. _,
roundend ,
spikeend e
,
!
NylonDome_
' (op_onalfor
_oo_j ,
CARPETED HARD-SURFACE
FLOORS FLOORS
.
For safety reasons, each speaker base contains a cord channel
designed to keep the ac power cord away from the feet. During
shipping, the cord may become dislodged from its intended
position and upon subsequent speaker placement may be
accidentally pierced by spiked feet. Please make sure that the
120 Vac power cord is inside the cord channel (see Figure 1).
For carpets, screw the round end of a foot into each hole and hand-
tighten a nut onto each one (see Figure 2). Leave a minim:Im of 5/8"
exposed spike to keep the carpet from blocking the port. (On thicker
carpets, you can increase the length of exposed spike up to 1 z/8").
For hard-surface floors, screw the spike end into each hole instead
and leave 5/8" of round end exposed.
If needed, adjust the feet so each speaker is level and then tighten
each nut with the enclosed wrench. To protect hard surfaces (e.g.,
wood floors), thread a nylon dome onto each round end (see Figure 2).
Compositions Overture OVTR 3 - Owner's Manual • 3
