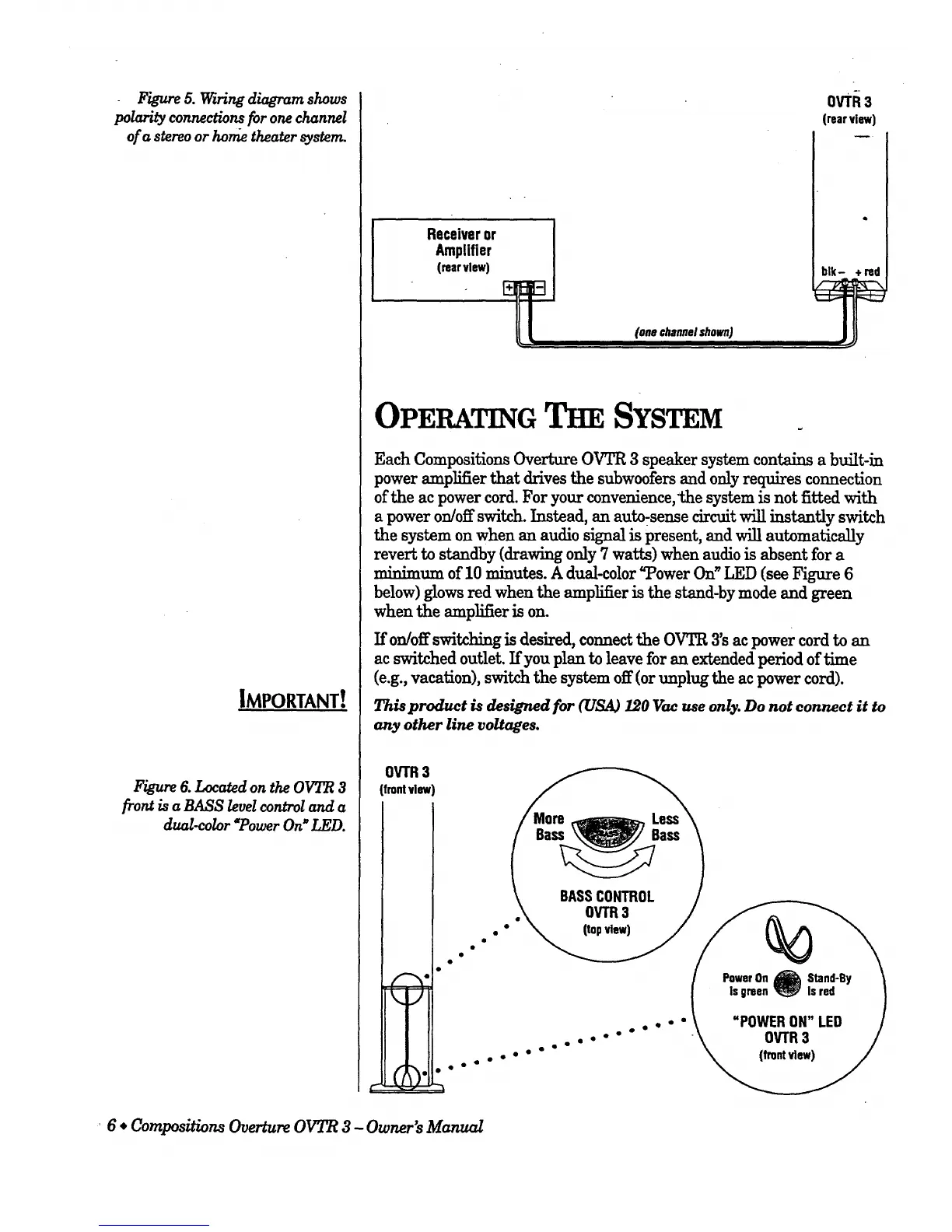

Figure 5. Wiring diagram shows
po!arity connectmne for one channel
of a stereo or hort_e theater system.
|MPORTANT!
Figure 6. Located on the OVTR 3
front is a BASS level control and a
dual-color "Power On" LED.
Receiveror
Amplifier
(rear view)
(ene channel shown)
ovT 3
(rear view}
OPERATING THE SYSTEM
Each Compositions Overture OVTR 3 speaker system contains a built-in
power amplifier that drives the subwoofers and only requires connection
of the ac power cord. For your convenience, he system is not fitted with
a power on/off switch. Instead, an auto-sense circuit will instantly switch
the system on when an audio signal is present, and will automatically
revert to standby (drawing only 7 watts) when audio is absent for a
minimnm of 10 minutes. A dual-color _Power On" LED (see Figure 6
below) glows red when the amplifier is the stand-by mode and green
when the amplifier is on.
If on/off switching is desired, connect the OVTR 3's ac power cord to an
ac switched outlet. If you plan to leave for an extended period of time
(e.g., vacation), switch the system off (or unplug the ac power cord).
This product is designed for (USA) 120 Vac use only. Do not connect it to
any other line voltages.
OVTR3
(frontview
Less
Bass
ooOOQO0 oo°°°°°°
Q • •
6 * Compositions Overture OVTR 3-Owner's Manual
