CONNECTING YOUR SUBWOOFER (Continued)

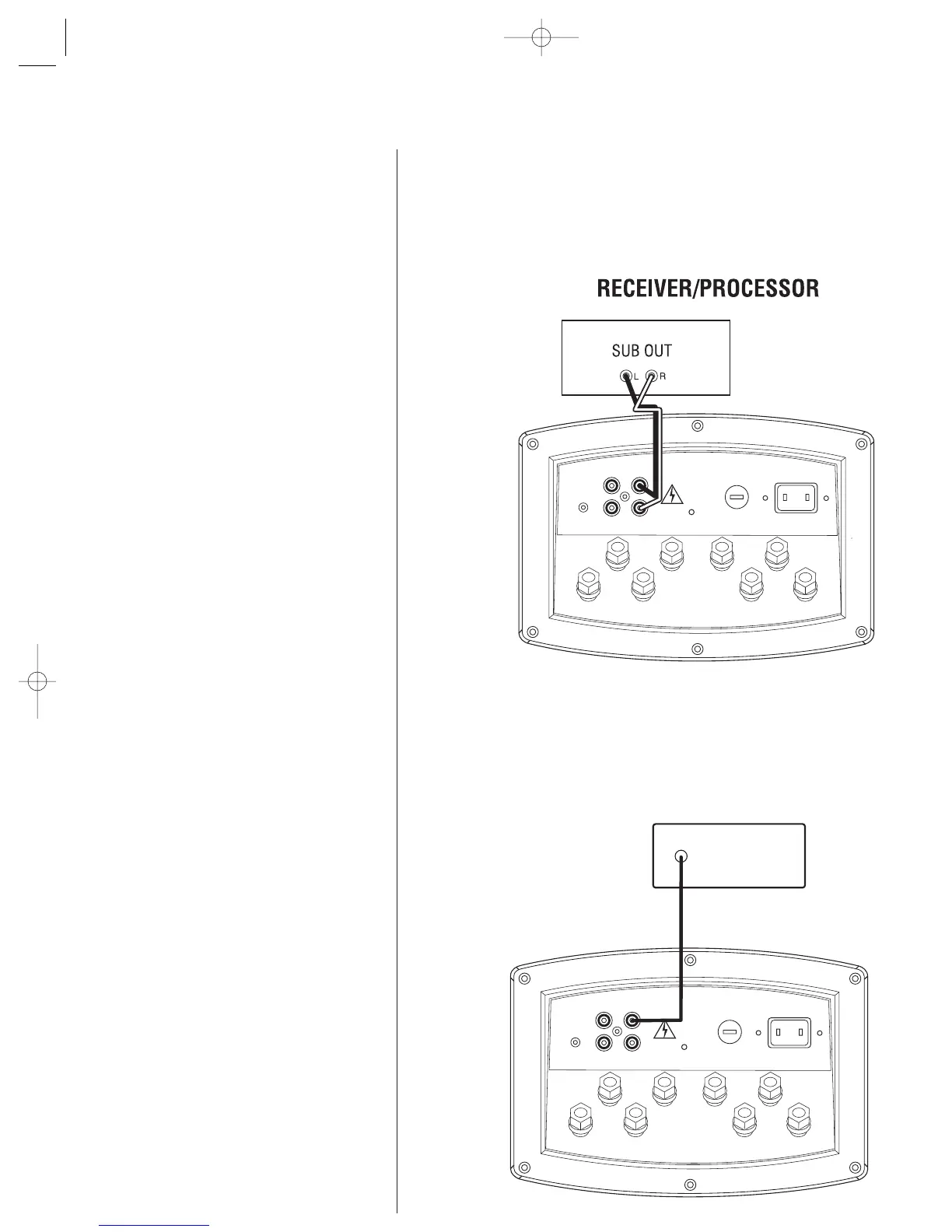

If your receiver/processor has subwoofer outputs for the left and right channels:
If you have a Dolby* Digital or DTS
®
receiver/processor with a low-frequency-effect
(LFE) output:
NOTE: Some receivers have a single
subwoofer output (do not confuse this
with a single LFE output as described
below). In that case, it is recommended
that you use a Y connector (not included)
to maximize performance.
LOW
LEVEL
OUT
LOW
LEVEL
IN
L
R
120Hz
160Hz
80Hz
HIGHPASS
OUTPUT
LOW
LEVEL
OUT
LOW
LEVEL
IN
L
R
SUBWOOFER OR
LFE OUTPUT
120Hz
160Hz
80Hz
HIGHPASS
OUTPUT
NOTE: In this case, you do not need to
use a Y connector. Simply connect the
LFE output on your receiver/processor
to either the left or right input on
the subwoofer.
