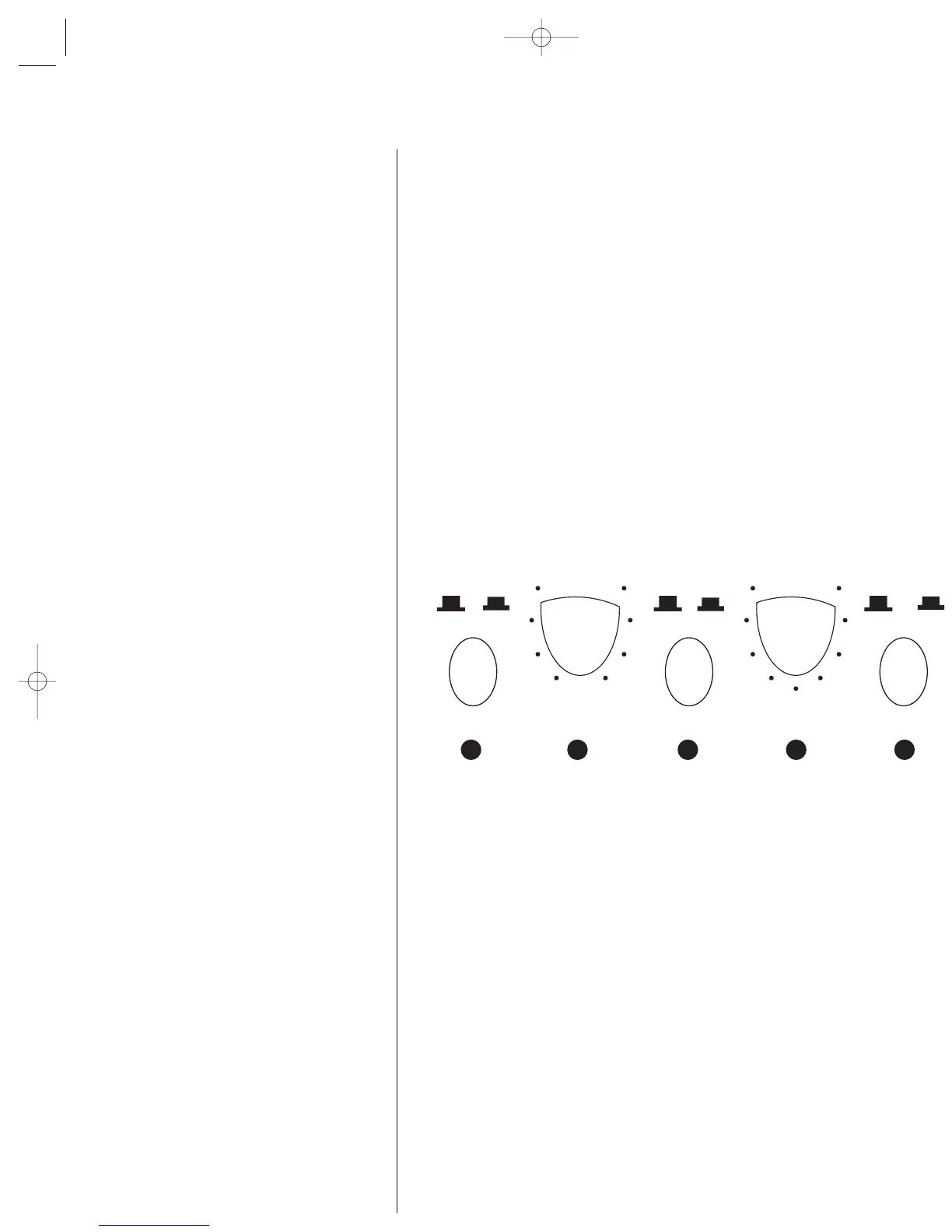

Figure 2.
IDENTIFICATION OF FRONT PANEL CONTROL
(Refer to Figure 2.)
1. EQ: Optimizes subwoofer performance for audio or video playback.
2. Crossover: Controls the frequency below which the subwoofer will begin working.
3. Phase: Reverse/normal switch changes audio-signal polarity.
4. Gain: Controls subwoofer volume level.
5. Input: Switches between the normal line/speaker inputs and the direct-LFE input.
