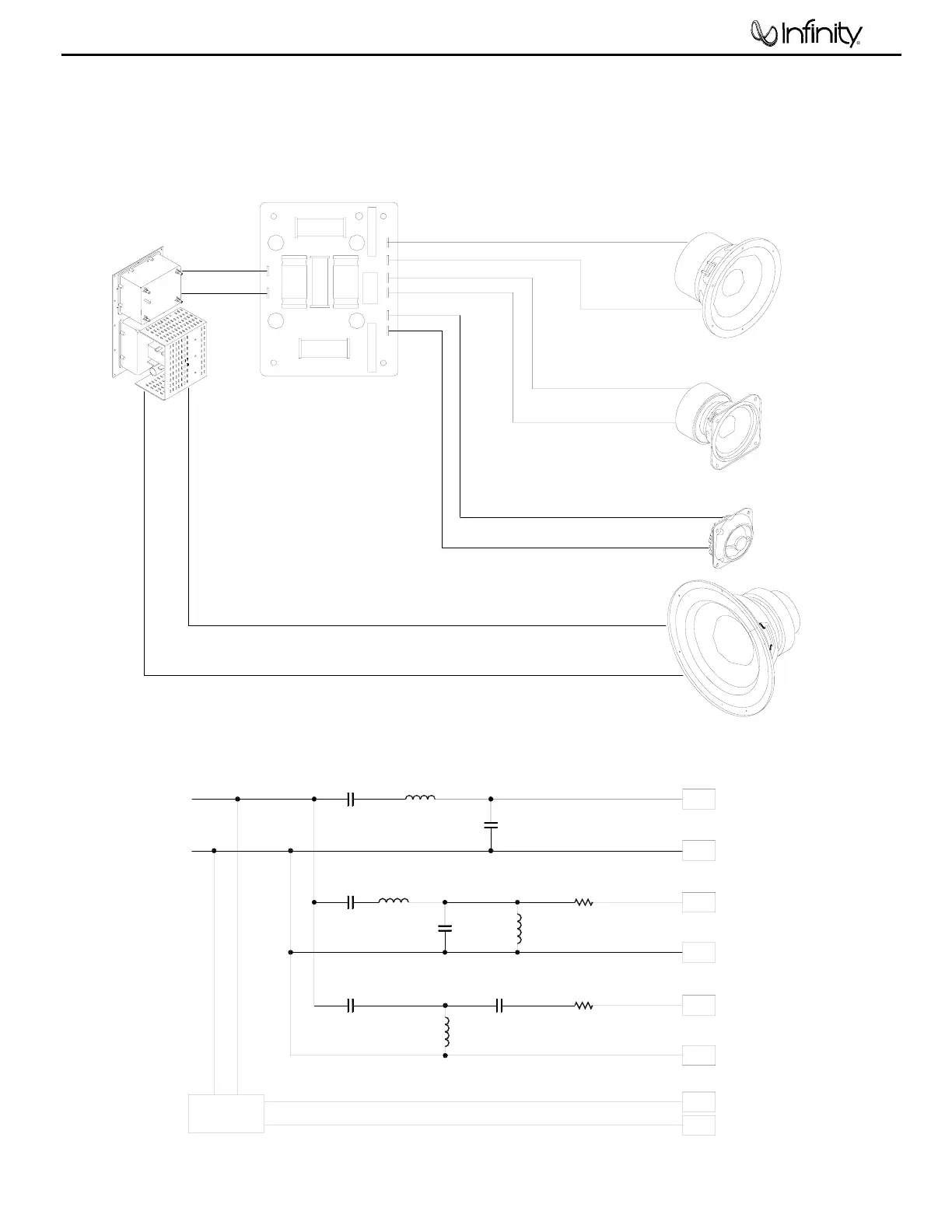

Infinity Interlude IL60 - Wiring Diagram Crossover Network Schematic

Wiring Diagram/Crossover Network
+ INPUT
- INPUT
C1
470 mF
100V
L1
2.4 mH
C2
80 mF
100V
GRN
GRN/BLK
250 +MB
205
-MB
C3
14 mF
100V
L2
0.75 mH
C4
8 mF
100V
L3
1.5 mH
R1
3.3 ohms
10W
+MR
250
WHT
WHT/BLK
-MR
205
C5
2 mF
100V
L4
0.18 mH
C6
14 mF
100V
R2
1.8 ohms
10W
YEL
+HF
187
YEL/BLK
-HF
110
AMPLIFIER
BLK
RED
.250
+LF
.205
-LF
W-
W+
M-
M+
Y-
T+
IN+
IN-
GRN
GRN/BLK -
+
WHT/BLK
WHT
-
+
YEL/BLK
-
YEL
+
MIDBASS
TRANSDUCER
335741-001
WOOFER
336056-001
TWEETER
335225-002
MIDRANGE
TRANSDUCER
335812-002
AMPLIFIER
NETWORK
336500-001
CROSSOVER NETWORK
SCHEMATIC
WIRING DIAGRAM
BLK
-
RED
+
00419
IL60
34
