Infinity Intermezzo 4.1t User Manual

7
INTERMEZZO 4.1t
120V – 60HZ 6A
INPUTS
POWER
ON
HIGH-PASS
FILTER
BASS
MODE
AC FUSE
6A 250V
OFF
– +
LOW-
LEVEL
INPUT
LOW-
LEVEL
OUTPUT
3
2
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
®
INTERMEZZO 4.1t
RECEIVER
SUBWOOFER
OUTPUTS
L
R
SPEAKER
OUTPUTS
RIGHT
(ONE CHANNEL SHOWN)
– +

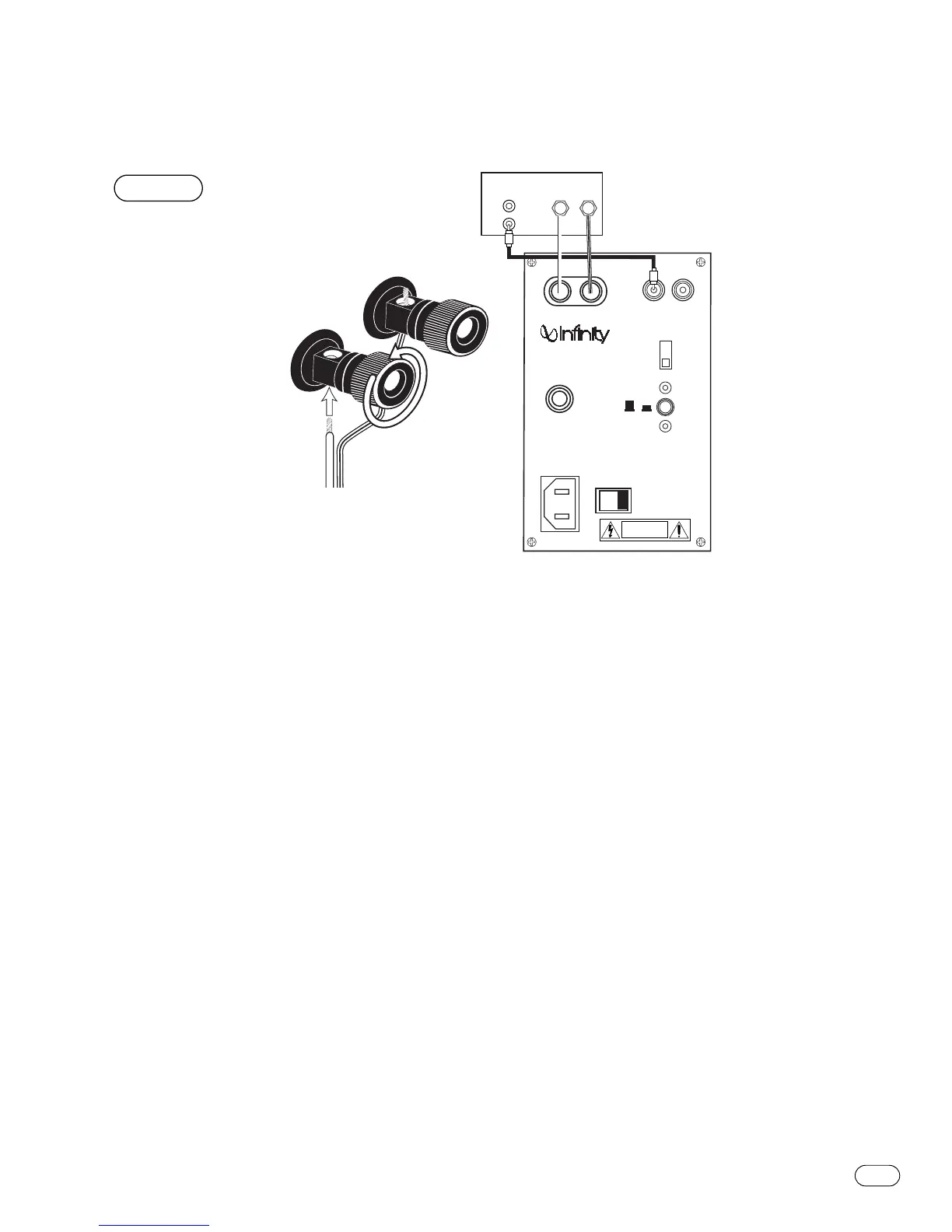

BLACK = –
NO STRIPE = – STRIPE = +
RED = +
LOOSEN TERMINAL
INSERT BARE
END; TIGHTEN
TERMINAL
SET BASS MODE
4
TO POSITION 2
SET HIGH-PASS SWITCH
5
TO ON
1.
2.
3.
4.
Method 4
Final Positioning
After correctly connecting the Intermezzo 4.1t and verifying that
both the subwoofer and main section portions are playing,it is
time to optimize the system for your particular listening room.
Earlier,you placed the loudspeakers in their general location.
Finding the exact location for optimum performance sometimes
only involves moving the speakers up to a few inches in any
direction.We urge you,therefore,to experiment with placement
until your speakers deliver their full potential.When the speakers
are moved inward (toward each other) there is generally better
focus of instruments and vocalists;however,moving the speakers
too close together can reduce the spaciousness of the stage
effect and you may need to experiment with the trade-off between
focus and imaging.If your listening room is larger than average
and your listening position is relatively far from the speakers,
wider placement of the speakers may be required.
