CONNECTING THE AMPLIFIER
The Kappa 100.9w and 120.9w subwoofer
connectors are compatible with bare wire
up to 8 AWG (tinned or untinned) and wire
that is terminated with pin connectors.
Although single banana connectors will fit
into the connector openings,the connection
may not be secure.
1. Use the included 3mm hex wrench to
open the connectors, as shown in the
illustration to the left.
2. Insert the wire ends into the connector
openings, as shown in the illustration to
the left.
NOTE: If using untinned bare wire,
be sure that no stray “+” and “–”strands
touch each other.Touching strands can
cause a short-circuit, which can damage
your amplifier.
3. Use the hex wrench to secure the
wires in the connectors, as shown in
the illustration to the left.

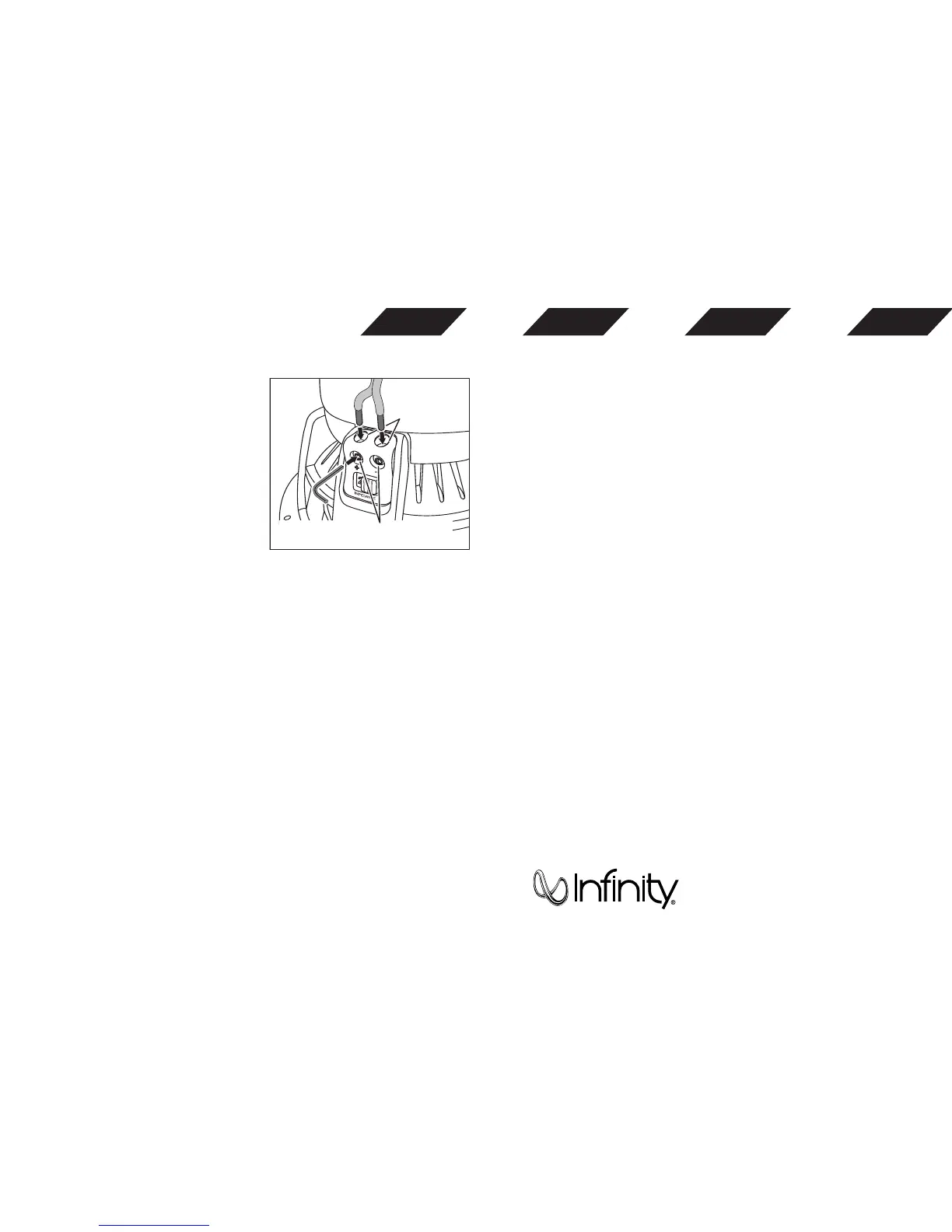

1. Use hex wrench to open connectors
3. Use hex wrench to secure connectors
2. Insert wires
into connector
openings
