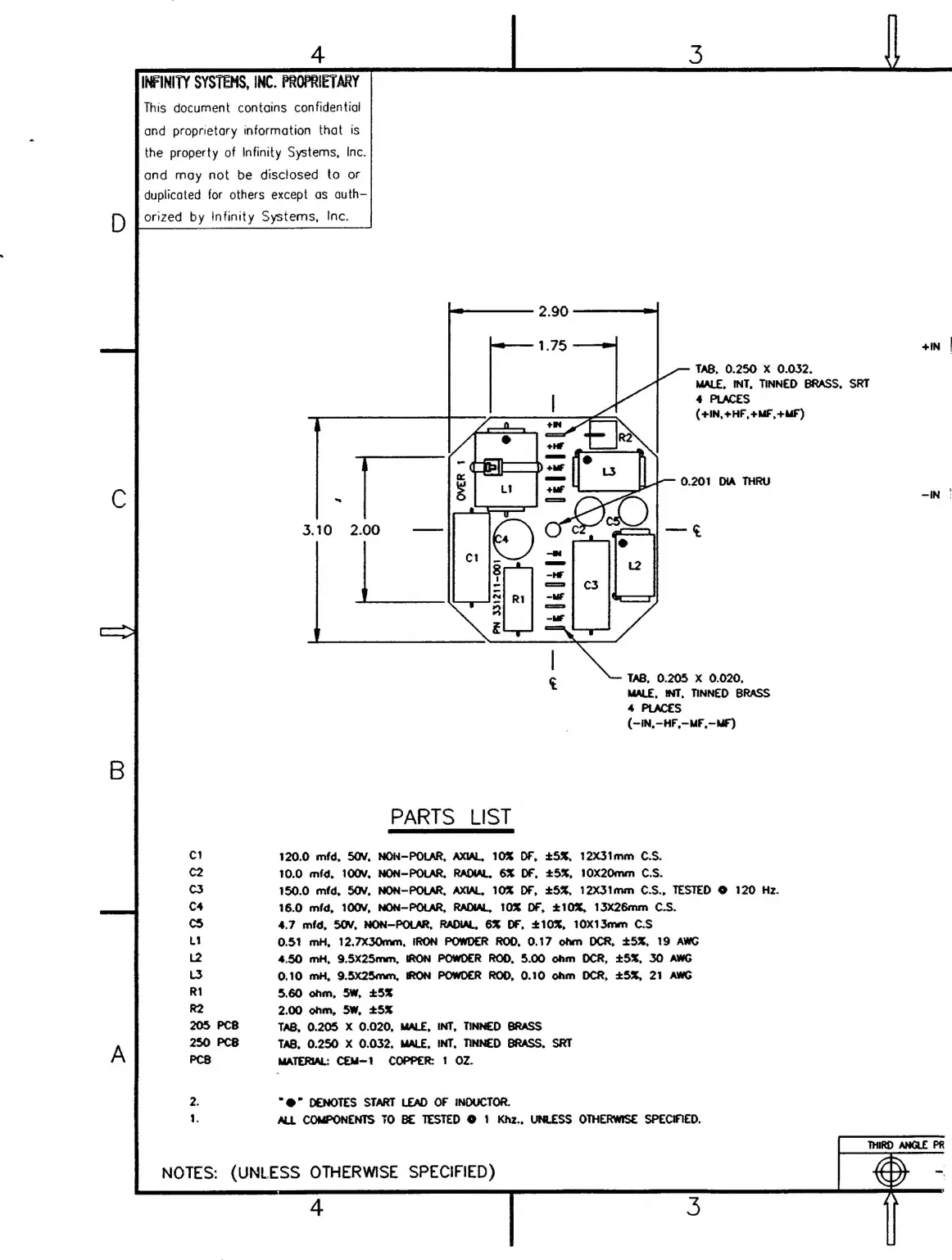

Infinity Overture 1 - 230 V Electrical Parts List (Resistors)

INFINITY SYSTEMS, INC. PROPRIETARY
This document contains confidential
and proprietary information that is
the property of Infinity Systems, Inc.
and may not be disclosed to or
duplicated for others except as auth—
orized by infinity Systems, inc.
a ° Y re) a)
4 PLACES
0.201 DIA THRU
wae 2
8
LS
“
a
E
¢ TAB, 0.205 X 0.020,
MALE, INT, TINNED BRASS
4 PLACES
(-IN,-HF,—MF,—MF)
PARTS LIST
cI 120.0 mfd, 5OV, NON-POLAR, AXIAL, 10% OF, +5%, 12X3imm C.S.
C2 10.0 mfd, 100V, NON-POLAR, RADIAL, 6% DF, +5%, 10X20mm C.S.
cS 150.0 mfd, 50V, NON-POLAR, AXIAL, 10% DF, +5%, 12X31mm C.S., TESTED @ 120 Hz.
c4 16.0 mfd, 100V, NON-POLAR, RADIAL, 10% DF, £10%, 13x26mm C.S.
cS 4.7 mfd, 50V, NON-POLAR, RADIAL, 6% DF, £10%, 10X13mm CS
Li 0.51 mH, 12.7X30mm, IRON POWDER ROD, 0.17 ohm OCR, +5%, 19 AWG
L2 4.50 mH, 9.5X25mm, IRON POWDER ROD, 5.00 ohm DCR, +5%, 30 AWG
3 0.10 mH, 9.5X25mm, BRON POWDER ROD, 0.10 ohm OCR, +5%, 21 AWG
R1 5,60 ohm, 5W, +5%
R2 2.00 ohm, 5W, +5%
205 PCB TAB, 0.205 X 0.020, MALE, INT, TINNED BRASS
250 PCB TAB, 0.250 X 0.032. MALE, INT, TINNED BRASS, SRT
PCS MATERIAL: CEM—t COPPER: 1 OZ.
2. “@” DENOTES START LEAD OF INDUCTOR.
1. ALL COMPONENTS TO BE TESTED © 1 Khz., UNLESS OTHERWISE SPECIFIED.
NOTES: (UNLESS OTHERWISE SPECIFIED)
4
TAS, 0.250 X 0.032.
MALE, INT, TINNED BRASS, SRT
(+1N,+HF,+MF,+MF)
+IN |
THIRD ANGLE PR
