Infinity PRELUDE MTS User Manual

8
PRELUDE MTS
The Infinity Prelude MTS offers unprecedented flexibility for
connecting the system to any type of audio or home-theater system.
Consult the table at right to determine which system description
most closely matches your own,then follow the hook-up method
corresponding to that system.
If none of these system configurations seem to match yours,
consult your dealer or Infinity customer service for direction on
how best to hook up your system.
For Methods 2,3a,3b and 4,make sure all bass-management
features are properly set.The Audio channels should all be set to
“Small”or “High-Pass” and the subwoofer set to “On.”
PRELUDE MTS SUBWOOFER
AMPLIFIER/RECEIVER
IN OUT 1 2 3
AC FUSE
6A 120V
120V – 60 HZ 6A
CAUTION
ATTENTION
BASS MODE
SPEAKER
OUTPUTS
(ONE CHANNEL SHOWN)
LINE LEVEL
––
LOOSEN TERMINALS
INSERT BARE END;
TIGHTEN TERMINALS
SET BASS MODE
TO POSITION 3
SET SWITCH ON BOTTOM
OF TOWER TO HIGH PASS
++
– INPUT +
SPEAKER
LEVEL
1
2
3
4
BLACK =
–
NO STRIPE = – STRIPE = +
RED = +
SPEAKER
OUTPUTS
PRELUDE MTS SUBWOOFER
IN OUT 1 2 3
AC FUSE
6A 120V
120V – 60 HZ 6A
CAUTION
ATTENTION
BASS MODE
LINE LEVEL
– +
PREAMP OUTPUTS
L
R
(ONE CHANNEL SHOWN)
L
R
AMPLIFIER INPUTS
+–
BLACK = –
STRIPE = +
RED = +
NO STRIPE = –
LOOSEN TERMINALS
INSERT BARE END;
TIGHTEN TERMINALS
SET BASS MODE
TO POSITION 2
SET SWITCH ON
BOTTOM OF TOWER
TO FULL RANGE
1
2
3
4
– INPUT +
SPEAKER
LEVEL
LEFT RIGHT
AMPLIFIER/RECEIVER
SPEAKER OUTPUTS
2-Channel receiver or integrated amplifier
that has no subwoofer output or
Pre-out/Main-In connectors 1
2-Channel receiver or integrated amplifier
with preamp output and input connectors 2
2-Channel system with separate preamplifier
and power amplifier 2
Dolby Pro Logic with THX,Dolby Digital,
or DTS
®
receiver with a filtered subwoofer
(or LFE) output connector 3a
Dolby Digital or DTS processor with separate
power amplifiers or multichannel amplifier 3b
Non-THX certified Dolby Pro Logic receiver
with full-range subwoofer outputs 4
System Type Connection Methods

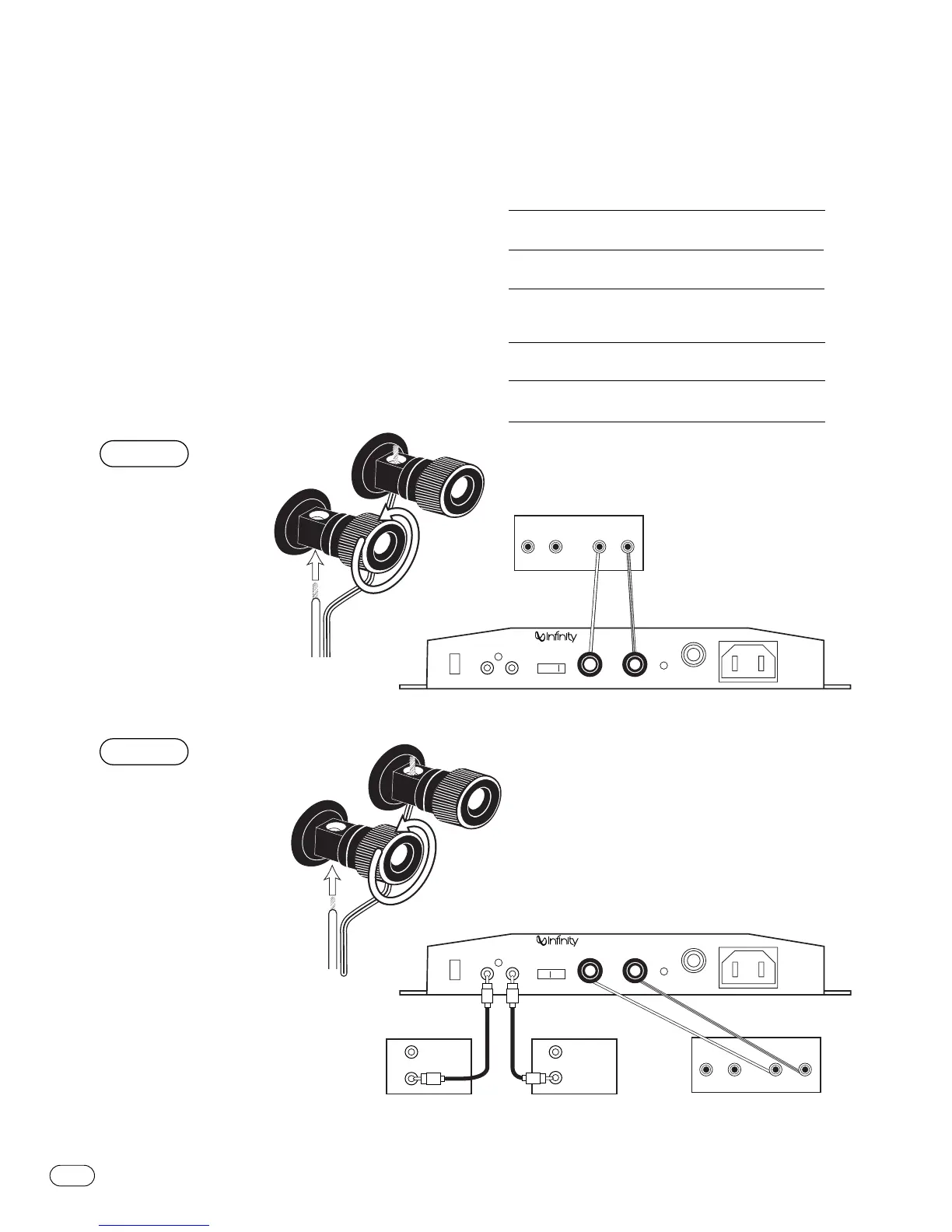

Method 1
Method 2
