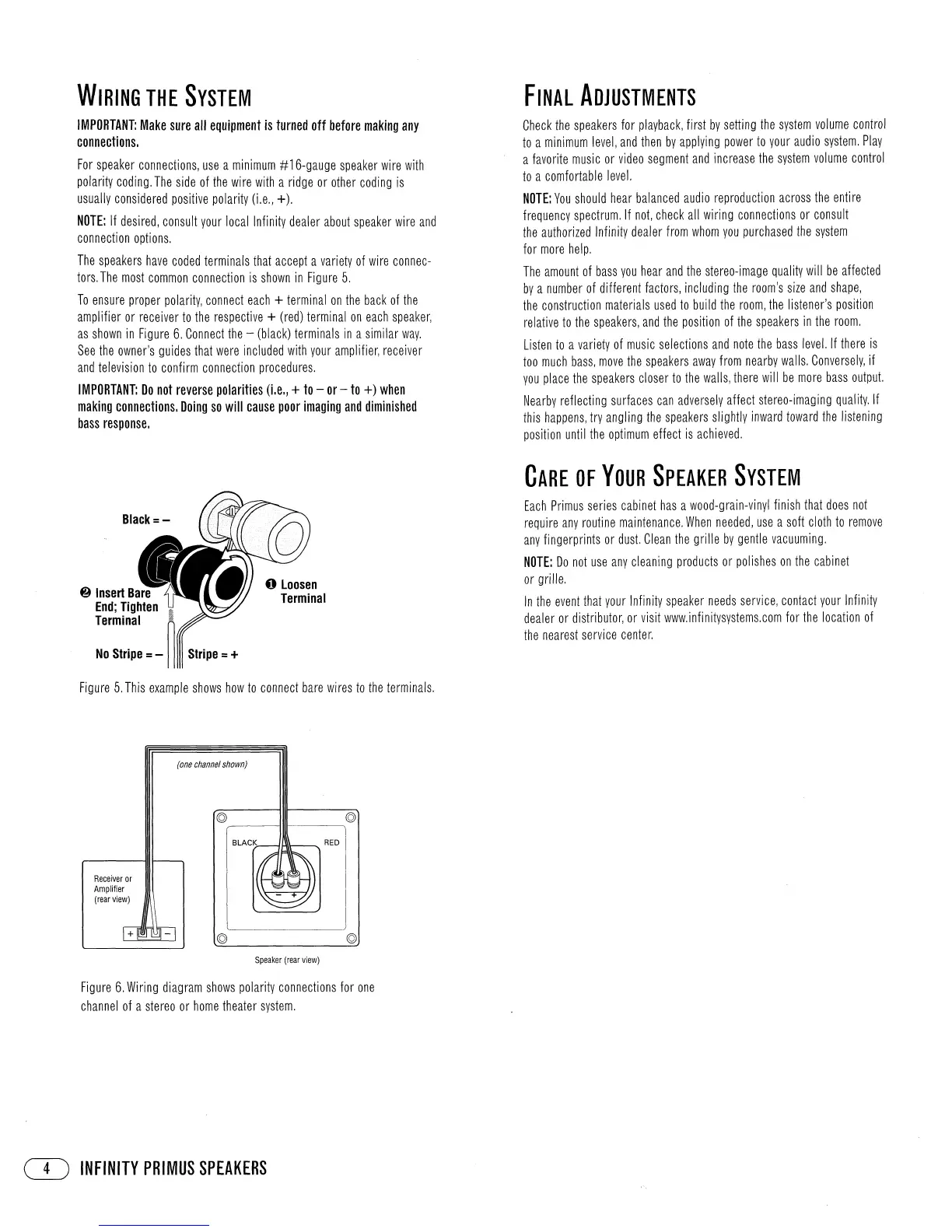

WIRING THE SYSTEM
IMPORTANT: Make sure all equipment is turned off before making any
connections.
For speaker connections, use a minimum #16-gauge speaker wire with
polarity coding. The side of the wire with a ridge or other coding is
usually considered positive polarity (i .e., +).
NOTE: If desi red, consult your local Infi nity dealer about speaker wi re and
connection options.
The speakers have coded terminals that accept a variety of wire connec-
tors. The most common connection is shown in Figure 5.
To ensure proper polarity, connect each + terminal on the back of the
ampl ifier or receiver to the respective + (red) terminal on each speaker,
as shown in Figure 6. Connect the - (black) terminals in a similar way.
See the owner's gu ides that were included with your ampl ifier, receiver
and television to confirm connection procedures.
IMPORTANT: Do not reverse polarities (i.e., + to - or - to +) when
making connections. Doing so will cause poor imaging and diminished
bass response.
Figure 5. This example shows how to connect bare wires to the terminals.
(one channel shown)
© ©
~--IIIII----~
FINAL ADJUSTMENTS
Check the speakers for playback, fi rst by setti ng the system vol ume control
to a minimum level, and then by applying power to your audio system. Play
a favorite music or video segment and increase the system volume control
to a comfortable level.
NOTE: You should hear balanced audio reproduction across the entire
frequency spectrum. If not, check all wiring connections or consult
the authorized Infinity dealer from whom you purchased the system
for more help.
The amount of bass you hear and the stereo-image quality will be affected
by a number of different factors, including the room's size and shape,
the construction materials used to build the room, the listener's position
relative to the speakers, and the position of the speakers in the room.
Listen to a variety of music selections and note the bass level. If there is
too much bass, move the speakers away from nearby walls. Conversely, if
you place the speakers closer to the walls, there will be more bass output.
Nearby reflecting surfaces can adversely affect stereo-imaging quality. If
this happens, try angling the speakers slightly inward toward the listening
position until the optimum effect is achieved.
CARE OF YOUR SPEAKER SYSTEM
Each Primus series cabinet has a wood-grain-vinyl finish that does not
require any routine maintenance. When needed, use a soft cloth to remove
any fingerprints or dust. Clean the grille by gentle vacuuming.
NOTE: Do not use any cleaning products or polishes on the cabinet
or grille.
In the event that you r I nfi n ity speaker needs servi ce
l
contact you r Infi n ity
dealer or distributor, or visit www.infinitysystems.com for the location of
the nearest service center.
Receiver or
Amplifier
(rear view)
©
>--~ 1-\\1..--_ RED
©
Speaker (rear view)
Figure 6. Wiring diagram shows polarity connections for one
channel of a stereo or home theater system.
