Infinity PS-10 - Exploded View

14
6
17
11 x4
16 x4
9 x4
10
x10
12 x6
18
13 x6
1
15
8

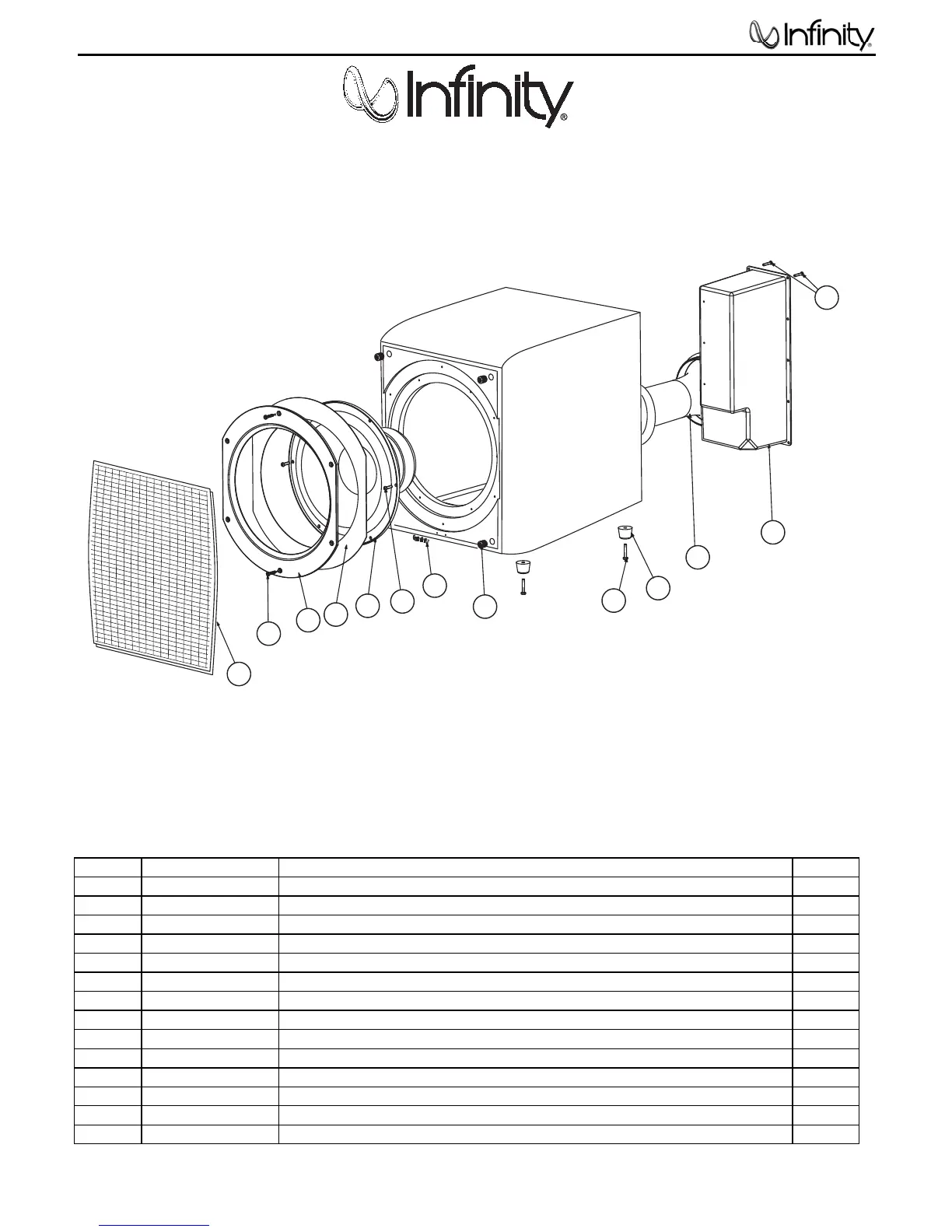

PS-10 Exploded View
Ref. # Part Number Description Qty
6 Not For Sale PS-10 AMPLIFIER 1 EA
7 Not For Sale PS-10 CABINET 1 EA
8 351650-001 TRIM RING, 10"-PS10 1 EA
9 333249-001 CUP, GRILLE 4 EA
10 351781-001 LOGO - PS10/PS12 1 EA
11 330163-001 FOOT, PLASTIC, 1" x 3/4 4 EA
12 883-41110-12 SCR, 8 X 3/4, PAN,PH,PB,BLK ZINC,LCS WFR 6 EA
13 9412730 SCR,TORX HD,3.9X30mm PLATE 6 EA
14 882-41110-12 SCR, 6 X 3/4,PAN,PH,PB,BLK ZINC,LCS AMP 10 EA
15 336649-001 WOOFER, 10” (254mm)C.M.M.D. SHIELDED DCR = 3.3 ohms ±10% 1 EA
16 883-31116-16 SCR, 8 X 1,TR,PH,PB,BLK ZINC,SS FEET 4 EA
17 336079-001 ASY,PORT TUBE 1 EA
18 351515-001 GASKET,FACEPLATE - PS10 1 EA
13
PS-10/PS-12
