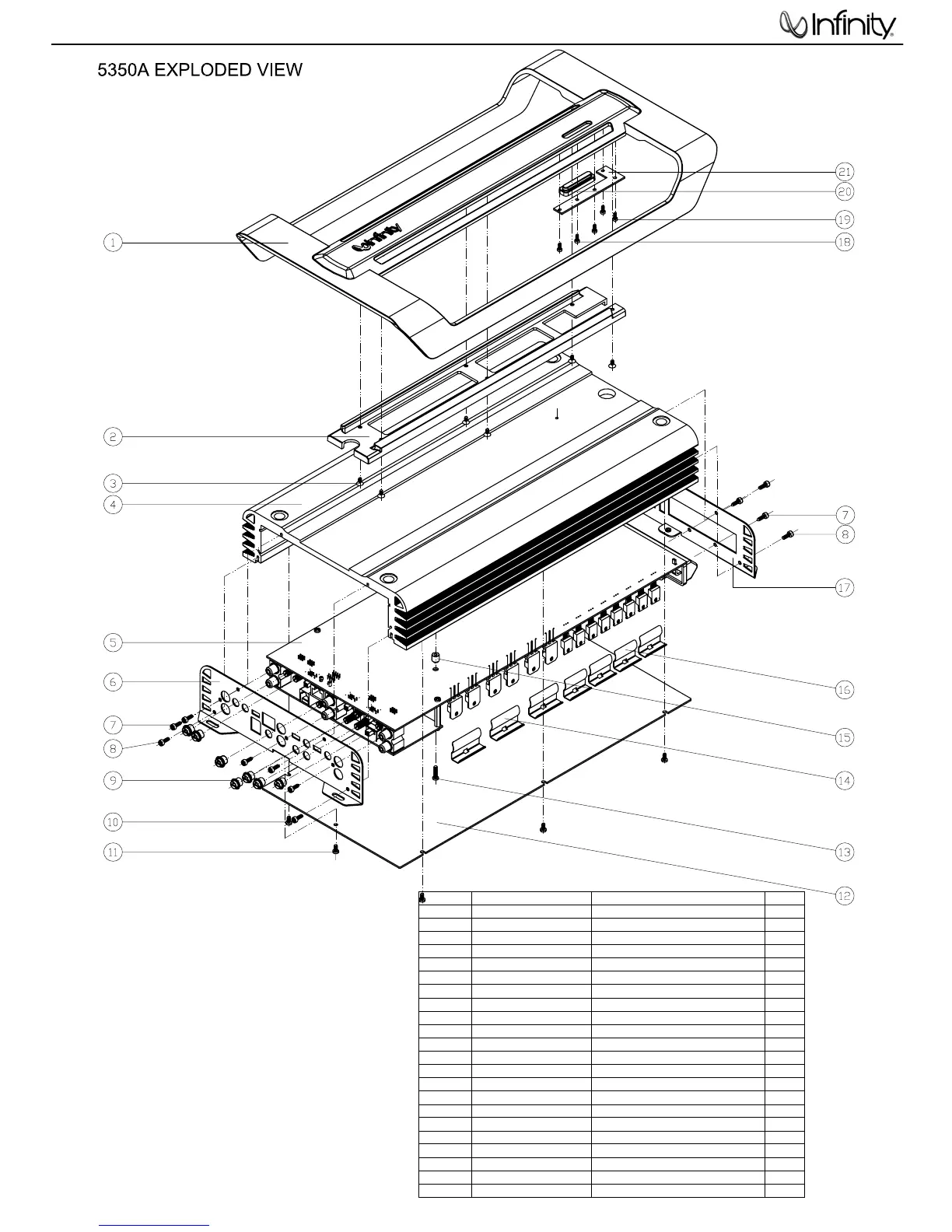

Infinity Reference 5350A Service Manual

Item# Part Number Description Qty
1 SG-0017-2601 Top cover 1
2 GD-600021400 Light panel 1
3 LSIFM0300011 Screw 6
4 SR-F555-0117 Main heat sink 1
5 Main PCB 1
6 MK-0006-2601 Front panel 1
7 LS5KJ0301007 Screw for terminal, RCA jacks 7
8 LS5KP0300807 Screw for F/RP 8
9 XN-10500-012 Knob 7
10 LSIAP0300607 Screw 6
11 LSIAM0300607 Screw 2
12 XG-0018-2601 Bottom plate 1
13 LSIAY0301201 Screw 2
14 PL-L0007-000 Transistor spring clip (2) 8
15 ZL-10037A-15 Space Pole 2
16 PL-L0006-000 Transistor spring clip (1) 6
17 HG-0007-2601 Rear panel 1
18 LSIAA0200501 Screw 1
19 LS1AM0250401 Screw 4
20 CP-B00011400 LED lens 1
21 LED PCB 1
6
5350a Reference Series

Infinity Reference 5350A Specifications

General

Bass boost	0 - 6 dB
Damping factor	6.3
Amplifier class	D
Frequency range	10 - 100000 Hz
Built-in crossover	Yes
Crossover frequency	200 Hz
Audio output channels	5.1 channels
Peak power per channel	332 W
Signal-to-Noise Ratio (SNR)	85 dB
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (2 Ohm)	89 W
RMS power output per channel (2 Ohm)	60 W
RMS power output per channel (4 Ohm)	50 W
XLR in	No
Audio (L/R) in	2
USB 2.0 ports quantity	0
Speakers connectivity type	Clamp terminals
Purpose	Car
Material	Aluminum
Cooling type	Passive
Product color	Aluminium, Grey
Volume control	Rotary
Remote control type	W
Connectivity technology	Wired
Maximum current	75 A
DC input voltage	10 - 14 V

Weight and Dimensions

Depth	421 mm
Width	229 mm
Height	68 mm
