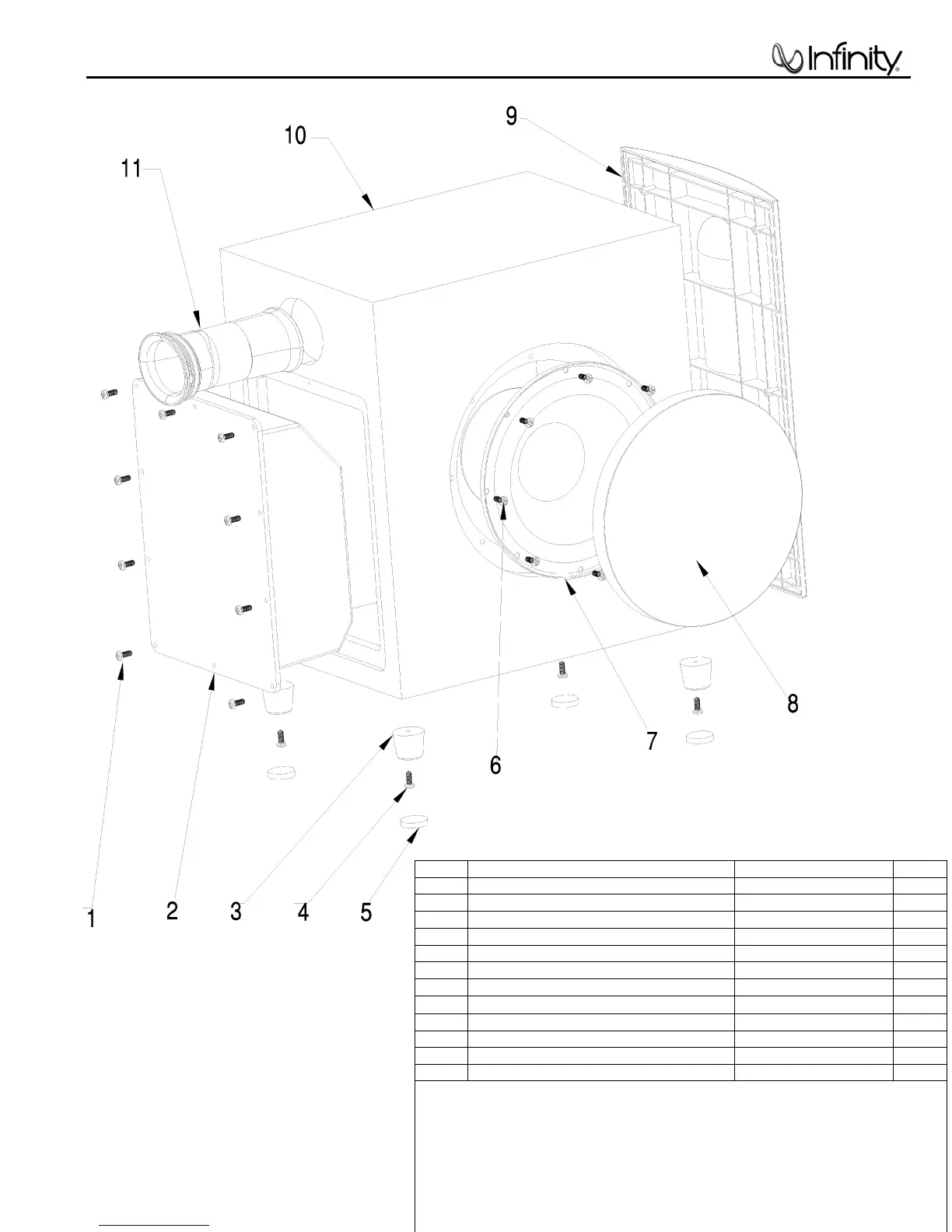

Ref# Description Part Number Qty
1 Screw, Amplifier 352-AM04020D210 10
2 SUB450 Amplifier Ass’y Not for Sale 1
3 Feet 320-RUB-00195 4
4 Screw, Foot 352-CM04025D604 4
5 Foot Pad 320-RUB-00199 4
6 Screw, Woofer 352-FM04020D605 8
7
8” (203mm) Woofer DCR = 3.3Ω ±10%
20MF10DAG-DW01 1
8 Grille 329-080-00736B/S 1
9 Front Faceplate Not for Sale 1
10 SUB450 cabinet Not for Sale 1
11 Port Tube 249-HIPS-00172B/S 1
SERVICE NOTE
Access to woofer:
1) Carefully pry metal grille out of its recess with a sharp pointed instrument
such as an awl – USE CAUTION. Work evenly around the perimeter
until the grill can be removed.
2) Remove the (8) Phillips screws holding the woofer to the cabinet.
3) After service, replace the woofer and re-insert the grille back into its
recess until it’s fully seated.
