Installing the Backup Battery Unit
For the Infoblox-2000-A Appliance 13
Mid-Mount
To mid-mount the appliance:
1. Remove the screws from the brackets at the front of the appliance.
2. Secure the brackets in the middle of each side of the appliance.
3. With one person on each side, lift the appliance and position it in front of the equipment rack.
4. Secure the left and right brackets to the rack.

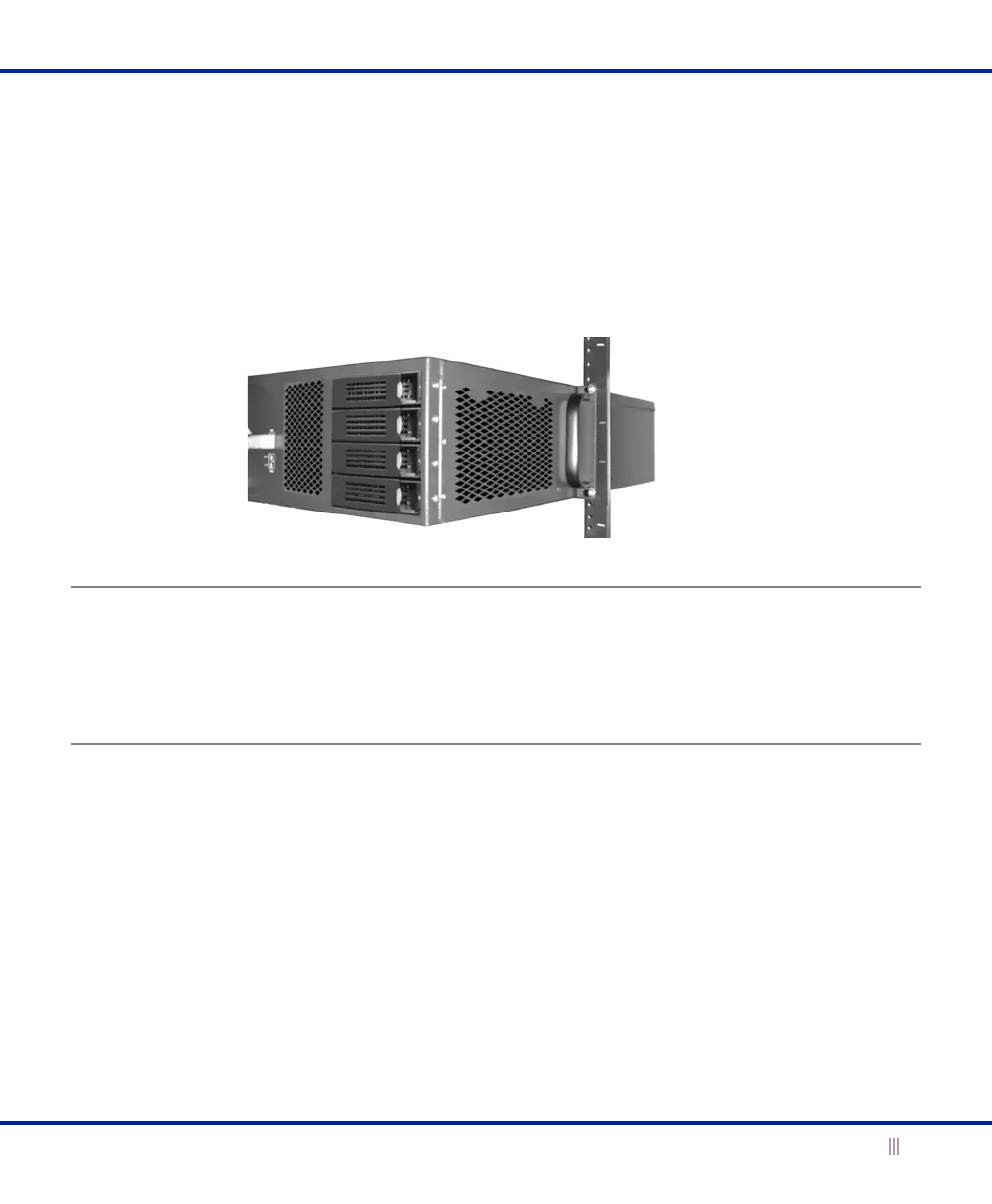

Figure 10 Infoblox-2000-A Mid-Mount
Installing the Backup Battery Unit
The appliance ships with a backup battery unit that you must install before powering the appliance.
1. Take the battery tray and slide it into the bay on the rear panel of the appliance.
2. Turn the thumbscrew locks clockwise to lock the battery tray.
Powering the Appliance
The Infoblox appliance ships with two power supply modules (PS1 and PS2). Use the power cables shipped with the
appliance to connect it to separate power circuits if possible. In the event of a power failure on one circuit, the
appliance can operate on the other.
1. Make sure that both power switches are off.
2. For each power supply, connect a power cable between the power connector on the back of the appliance and
a properly grounded and rated power circuit that meets the provisions of the current edition of the National
Electrical Code, or other wiring rules that apply to your location. Make sure that the outlet is near the appliance
and is easily accessible.
3. Turn on both power switches.
