Infoblox Trinzic Reporting 1400

System, Environmental, and Power Specifications
For the Trinzic Reporting 1400 Appliance 11

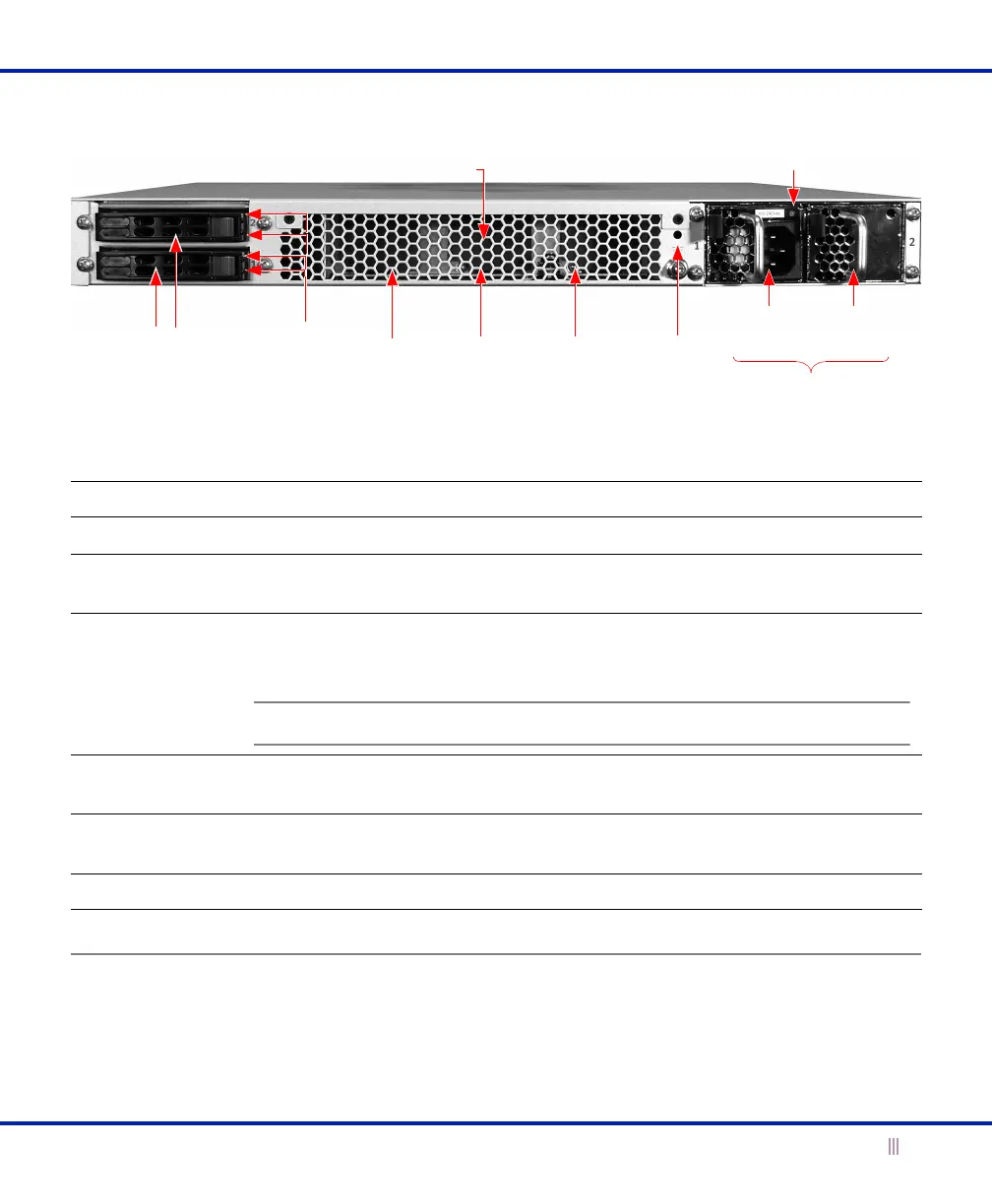

Figure 5 Trinzic Reporting 1400, Rear View
Table 2 Rear Panel Components
System, Environmental, and Power Specifications
System specifications describe the physical characteristics of each appliance. Environmental specifications
describe the temperature and moisture limits it can withstand. Power specifications describe the electrical range
within which the appliance circuitry can operate.
Component Description
Hard Disk Drives Two (2) Infoblox data storage devices in a RAID array.
Drive Indicators LEDs that flash green to indicate the hard drive is processing data.
Fans A fan system (5 fans total) to help maintain optimum operating temperature. Do not
obstruct.
UID LED Blue = UID is activated through pressing the UID button on the appliance
Blinking Blue = UID is activated through the Infoblox GUI or CLI command
Dark = UID is deactivated
Note: When UID is activated, the LCD on the front panel blinks at the same time.
Power Supply Each power supply has a power outlet for connecting the appliance to a standard AC
power source.
Power LED The power indicator is green if the power supply has power and is dark if it does not
have power.
Air Vent An air vent that allows warm air to flow out of the appliance. Do not obstruct.
Air Vent
Hard Disk
Drives
Fan
Power
Supply
Optional
Power
Supply
Redundant Power Outlets
Fan Fan
UID LED
Drive
Indicators
Power
LED
