Infoblox Trinzic Reporting 1400 User Manual

For the Trinzic Reporting 1400 Appliance 13
Installing an Appliance
Follow these instructions to rack mount the Trinzic Reporting 1400 appliance, connect it to a power source, and
cable it to a network. Before proceeding, review the Infoblox Safety Guide and follow the necessary precautions.
Rack Mounting
The Trinzic Reporting 1400 appliance mounts into a standard 19” (48 cm) equipment rack. The appliance ships with
accessory kits that contain the following: a pair of rack slide brackets and chassis slide rails, a pair of rack ears,
eight (8) 10-32 screws, and eight (8) 8-32 screws. To mount the appliance to an equipment rack, you also need a
#2 screwdriver with a cross-headed tip. There are two ways to rack mount the Trinzic Reporting 1400:
• Two-post rack mount
• Four-post rack mount
Two-Post Rack Mount
To mount the appliance to an equipment rack and secure it at the rear rack posts:
1. Align the mounting holes on the rack ears with the rear-most mounting holes on each side of the chassis.
2. Attach each rack ear on each side of the chassis with two (2) 8-32 screws, as shown in Figure 6.

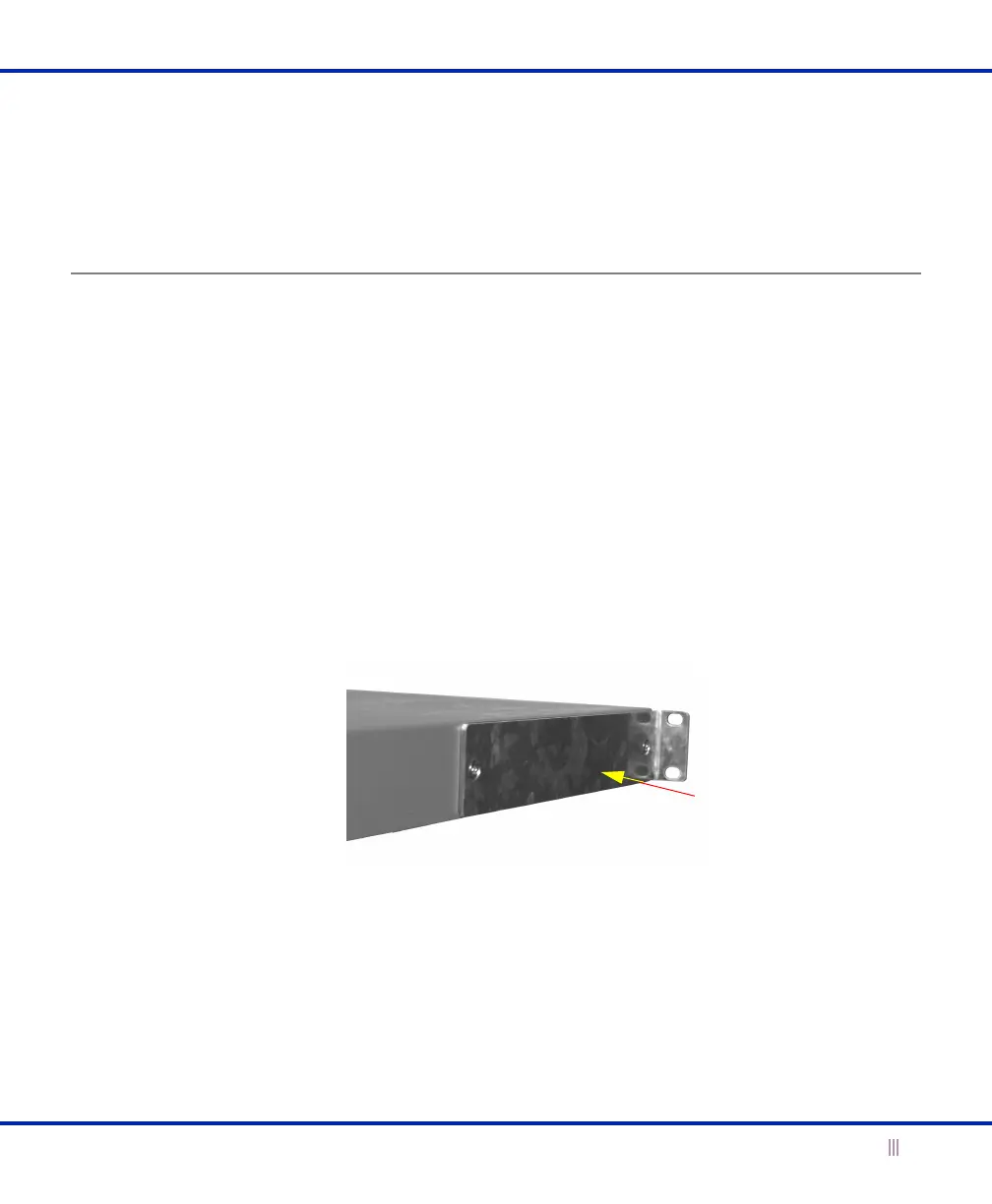

Figure 6 Rack Ears in Two-Post Rack Mount
3. With one person on each side, lift the appliance and position it in the equipment rack.
4. Attach each rack ear to the equipment rack with two (2) 10-32 screws on each side.
Rack Ear
