Installing an Appliance
14 Infoblox Installation Guide
Four-Post Rack Mount
To mount the appliance to an equipment rack and secure it at the front and rear rack posts:
1. Align the mounting holes on the rack ears with the front-most mounting holes on each side of the chassis.
2. Attach the rack ears to each side of the chassis with two (2) 8-32 screws, as shown in Figure 8.
3. Slide the inner chassis slide rails out of the rack slide brackets, as shown in Figure 7.

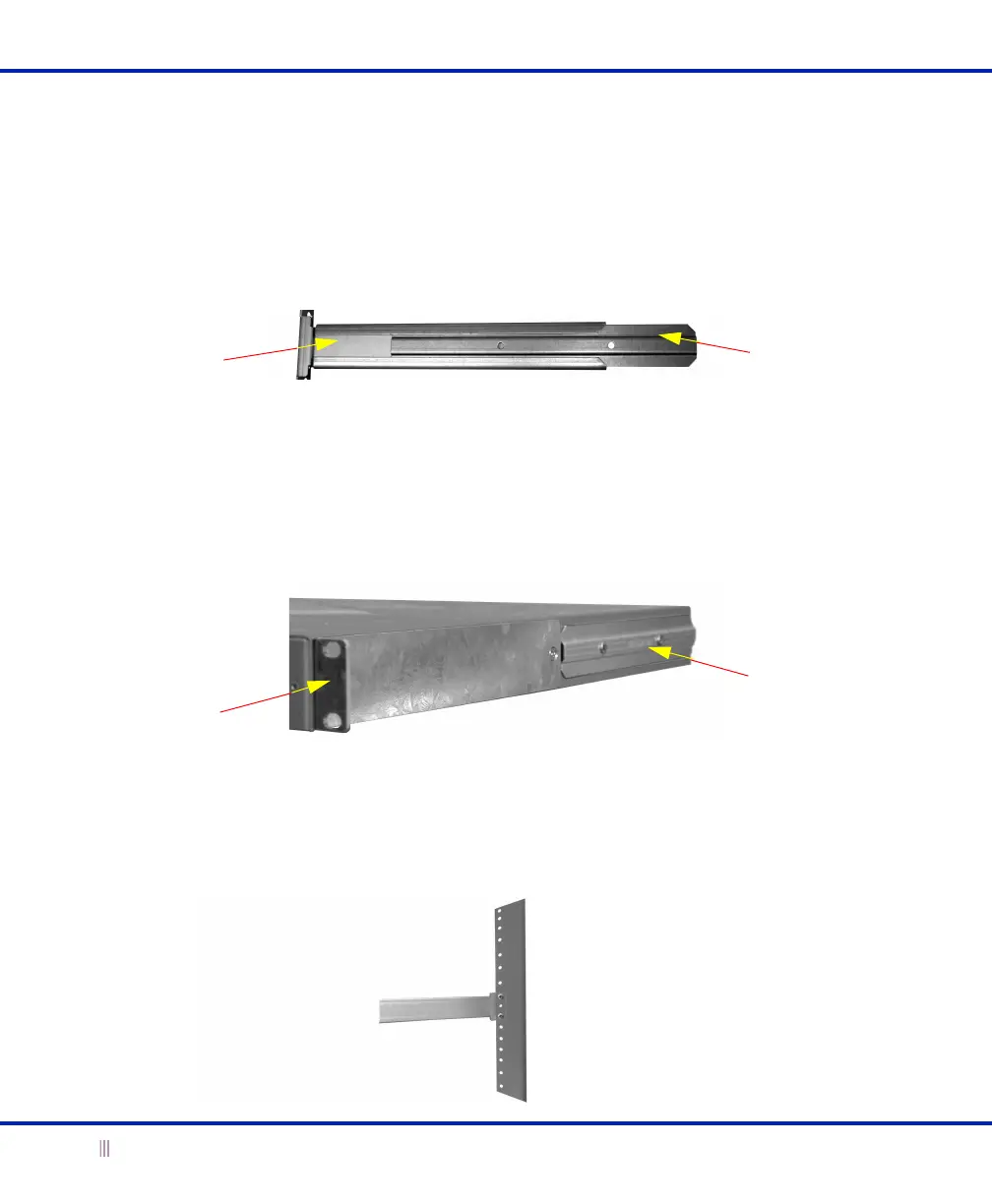

Figure 7 Chassis Slide Rail and Rack Slide Bracket
4. Align the mounting holes on the chassis slide rails with the rear-most mounting holes on each side of the
chassis. Ensure that you place the chassis slide rails in the correct orientation. Otherwise, the mounting holes
do not align properly.
5. Attach the chassis slide rails to each side of the chassis with two (2) 8-32 screws, as shown in Figure 8.
Figure 8 Rack Ears and Chassis Slide Rails in Four-Post Rack Mount
6. Select a desired location and secure the rack slide brackets to the rear posts of the equipment rack with two
(2) 10-32 screws on each side of the rack, as shown in Figure 9
Figure 9 Rack Slide Bracket Attached to the Rear Post of the Rack
Chassis Slide Rail
Rack Slide Bracket
Rack Ear
Chassis Slide Rail
