InFocus IN122A User Manual

6

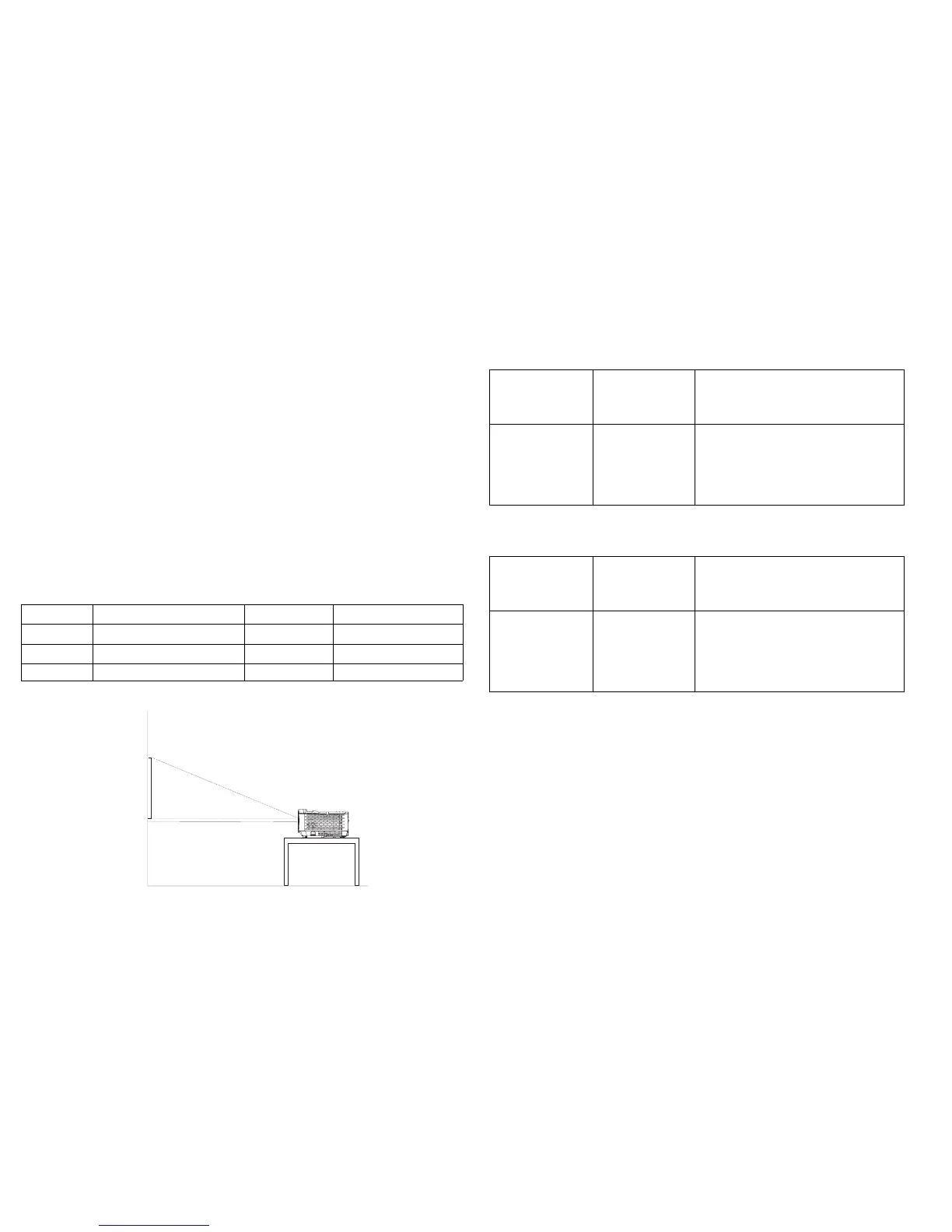

Positioning the projector
To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the
projector and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. IN122a
and IN124a must be at least 45.3” (1.2m) from the projection screen, and
IN126a must be at least 55.4” (1.4m) from the projection screen.
• If you are installing the projector on the ceiling, we strongly recommend using
InFocus approved ceiling mounts for proper fitting, ventilation and installation.
Refer to the installation guide that comes with the InFocus Ceiling Mount Kit
(p/n PRJ-MNT-UNIV) for more information. The warranty does not cover
any damage caused by use of non-approved ceiling mount kits or by installing
in an improper location. To turn the image upside down, see “Ceiling mount”
on
page 27. We recommend using an InFocus authorized ceiling mount.
• Position the projector the desired distance from the screen. The distance
from the lens of the projector to the screen and the video format determine
the size of the projected image.
Model Minimum Distance to Screen Offset Offset for 60in. Image
IN122a 45.3"/1.2m 15%+-5% 9"/22.9cm
IN124a 45.3"/1.2m 15%+-5% 9"/22.9cm
IN126a 55.4"/1.4m 13%+-5% 7.8"/19.8cm
60 inches
high image
bottom of image 9
inches above center
of lens
Projection angle
lens center
Table 1: IN122a (SVGA)/IN124a (XGA) Screen size
Throw Ratio = 1.9 to 2.2
Diagonal Screen
Size (inches/m)
Size of the
Projected Image
Width
(inches/m)
Distance to screen
Minimum distance
(inches/m)
Maximum distance
(inches/m)
40”/1.0m 32”/0.8m 62”/1.6m 69”/1.7m
60”/1.5m 48”/1.2m 94”/2.4m 103”/2.6m
80”/2.0m 64”/1.6m 125”/3.2m 137”/3.5m
100”/2.5m 80”/2.0m 156”/4.0m 172”/4.4m
150”/3.8m 120”/3.0m 234”/5.9m 257”/6.5m
Table 2: IN126a (WXGA) Screen size
Throw Ratio = 1.5 to 1.8
Diagonal Screen
Size (inches/m)
Size of the
Projected Image
Width
(inches/m)
Distance to screen
Minimum distance
(inches/m)
Maximum distance
(inches/m)
45”/1.1m 38”/1.0m 55.4”/1.4m 69.3”/1.8m
60”/1.5m 51”/1.3m 74.5”/1.9m 92.9”/2.4m
80”/2.0m 68”/1.7m 100.0”/2.5m 124.4”/3.2m
100”/2.5m 85”/2.2m 125.5”/3.2m 155.8”/4.0m
150”/3.8m 128”/3.2m 189.2”/4.8m 234.6”/6.0m

InFocus IN122A Specifications

General

White Brightness	3500 lumens
Native Resolution	800 x 600
Contrast Ratio	15, 000:1
Aspect Ratio	4:3
Throw Ratio Range	1.9 to 2.2
3D	yes
Minimum Distance	2.5 feet
Maximum Distance	25 feet
Video Input	vga, hdmi, s-video, composite video
Inputs	composite video, hdmi, s-video, usb, vga
OS Compatibility	android, apple ios, mac, windows

Weight and Dimensions

Depth	8.7 inches
Height	4.3 inches
Width	11.5 inches
Net Weight	7 pounds
