InFocus in124st User Manual

9
Adjusting the image
If necessary, adjust the height of the projector by rotating the elevator foot to extend the
foot.
If necessary, rotate the leveling foot located at the rear of the projector.
Avoid placing your hands near the hot exhaust vent at the front of the projector.
Position the projector the desired distance from the screen at a 90 degree angle to the
screen.
See page 6 for a table listing screen sizes and distances.
Adjust the focus.
If the image is not square, first make sure that the projector is perpendicular to the screen. If
the image is larger or smaller on the top or bottom edge of the screen, press the top
Keystone button to reduce the upper part of the image, and press the bottom Keystone
button to reduce the lower part.
If the left or right side of the screen is larger or smaller the other, you can turn the projector
to the left or to the right a few degrees to square the image.
Adjust the Contrast or Brightness in the Basic Menu. See page 25 for help with these menu
adjustments.

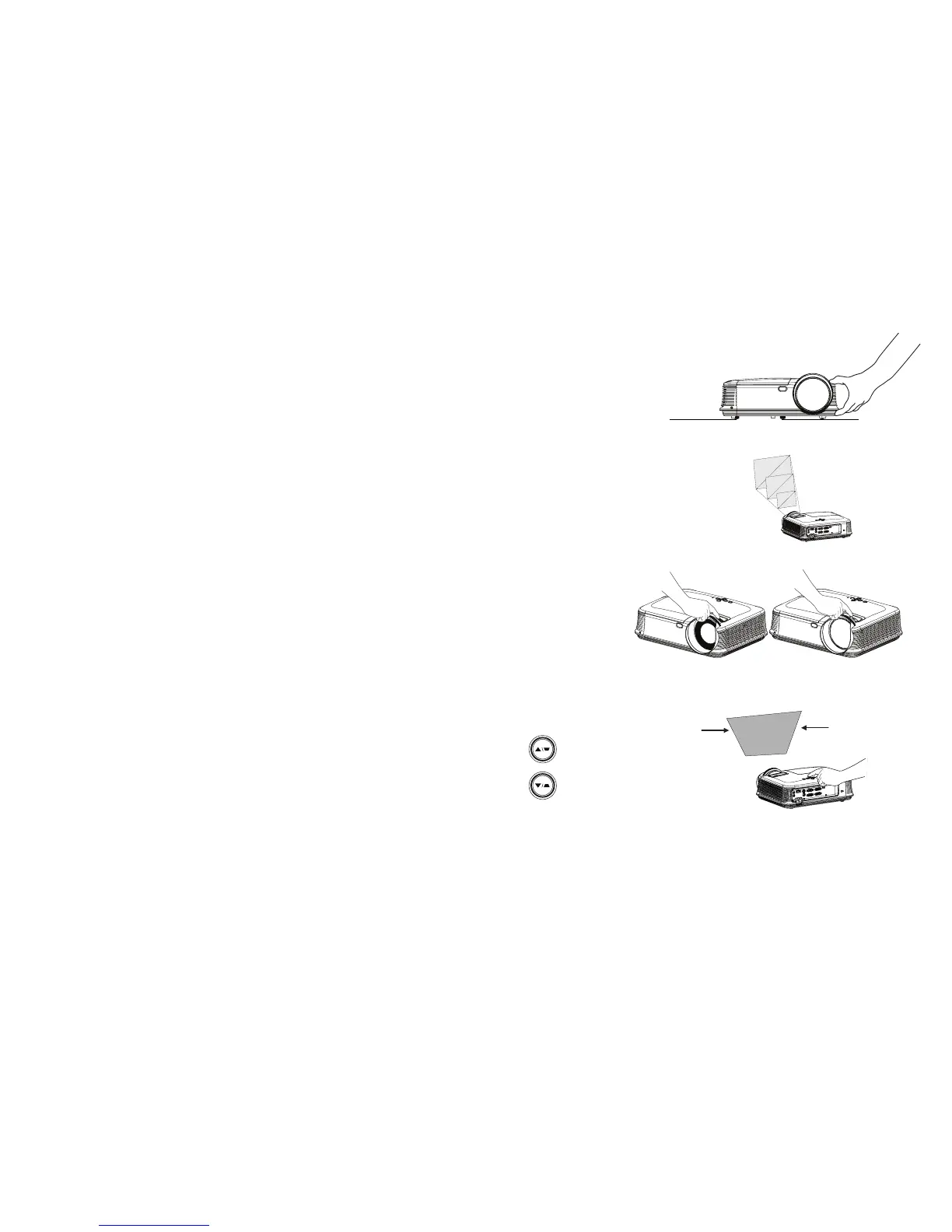

adjust distance
adjust focus
IN126ST
adjust keystone
adjust height
leveling foot
elevator foot
IN122ST/IN124ST

InFocus in124st Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	4000:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	31 kHz
Projector brightness (economic mode)	2500 ANSI lumens
Focus	Manual
Offset	10 %
Throw ratio	0.6 - 0.6:1
Focal length range	- mm
Lamp type	UHP
Lamp power	230 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Full HD	No
HD-Ready	Yes
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	176 x 144, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
RMS rated power	2 W
Number of built-in speakers	1
USB connector type	Mini-USB B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Connectivity technology	Wired
Noise level	30 dB
Preset modes	Cinema, Custom, Presentation
Certification	UL, c-UL, FCC, CE
Noise level (economic mode)	28 dB
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR
Placement	Desktop, Ceiling
Product type	Short throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	260 W
Operating altitude	0 - 3048 m
Operating temperature (T-T)	5 - 35 °C
Cables included	AC, VGA

Weight and Dimensions

Depth	230 mm
Width	327 mm
Height	133 mm
Weight	2720 g
