InFocus in124st User Manual

32
1 Turn off the projector and unplug the power cord.
2 Wait 60 minutes to allow the projector to cool thoroughly.
3 Remove the lamp door, located on top of the projector, by removing the screw
on the side of the lamp door, sliding the door to the left, and lifting the lamp
door off.
4 Loosen the captive screws that attach the lamp housing to the projector.
NOTE: If the projector is installed on a ceiling mount, be careful not to drop
the lamp module once the captive screws are loosened.
5 Carefully lift the lamp straight up, off of the alignment pins; being careful not to
pinch the lamp connector. Dispose of the lamp in an environmentally proper
manner.
6 Install the new lamp module, aligning the pins properly. Be careful not to pinch
the lamp connector.
7 Tighten the screws. (NOTE: If the pins have not been aligned properly, the
screws will not tighten securely.)
8 Replace the lamp door by (a) aligning the hinges, (b) putting the lamp door
down and (c) locking it back into place.
9 Replace the lamp door screw and tighten securely.
10 Plug in the power cord and press the Power button to turn the projector back
on.
11 To reset the lamp hour timer, navigate to the Advanced Menu > Status/
Service menu and select Reset Lamp Hours....

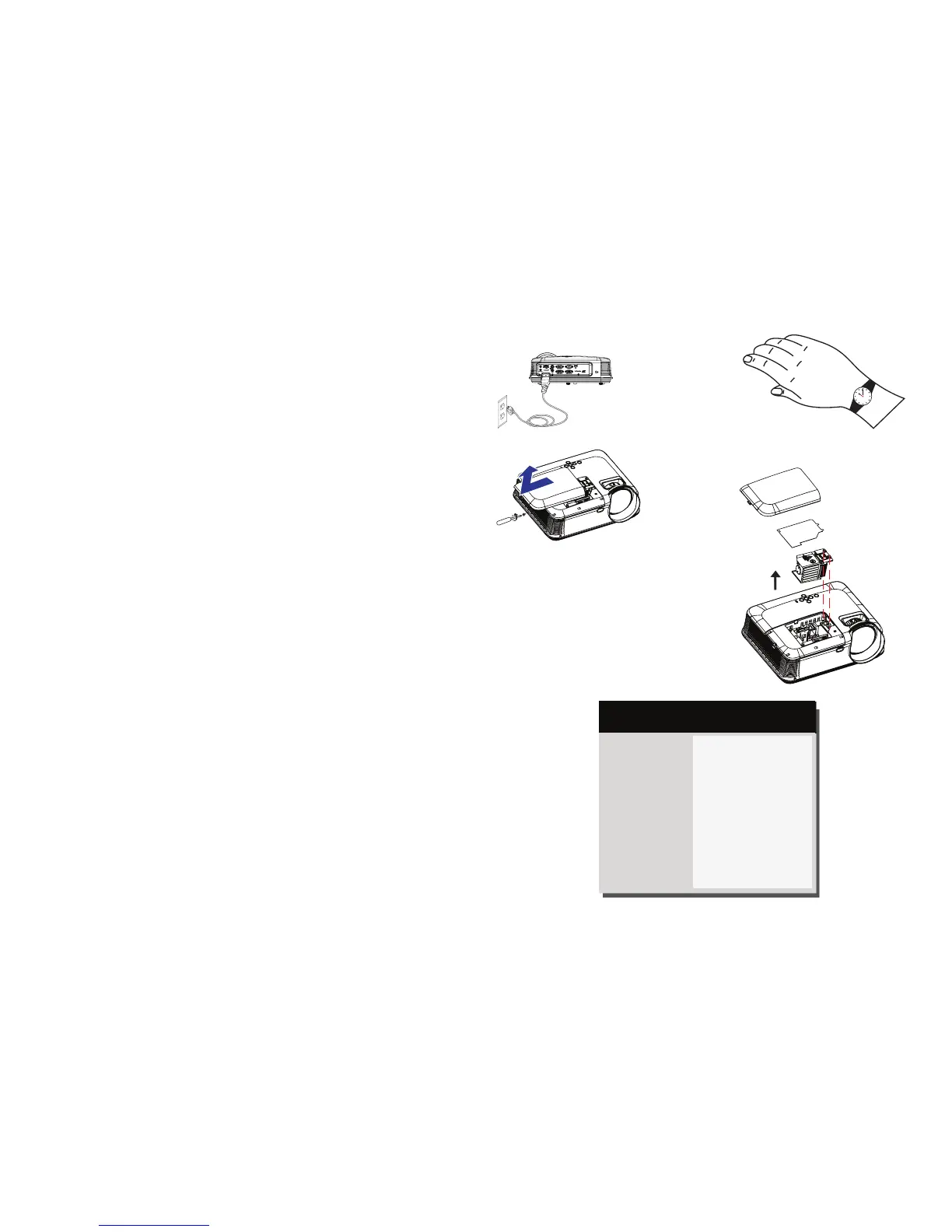

turn off and unplug
projector
wait 60 minutes
loosen screw
Setup
Status/Service
Basic Menu
Source Info...
Projector Info...
Reset Lamp Hours...
Factory Reset...
Service Code...
( Advanced Menu )
MDL: IN122ST
FW: 1.28

InFocus in124st Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	4000:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	31 kHz
Projector brightness (economic mode)	2500 ANSI lumens
Focus	Manual
Offset	10 %
Throw ratio	0.6 - 0.6:1
Focal length range	- mm
Lamp type	UHP
Lamp power	230 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Full HD	No
HD-Ready	Yes
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	176 x 144, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
RMS rated power	2 W
Number of built-in speakers	1
USB connector type	Mini-USB B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Connectivity technology	Wired
Noise level	30 dB
Preset modes	Cinema, Custom, Presentation
Certification	UL, c-UL, FCC, CE
Noise level (economic mode)	28 dB
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, KOR, NOR, POL, POR, RUS, SWE, TUR
Placement	Desktop, Ceiling
Product type	Short throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	260 W
Operating altitude	0 - 3048 m
Operating temperature (T-T)	5 - 35 °C
Cables included	AC, VGA

Weight and Dimensions

Depth	230 mm
Width	327 mm
Height	133 mm
Weight	2720 g
