Appendix

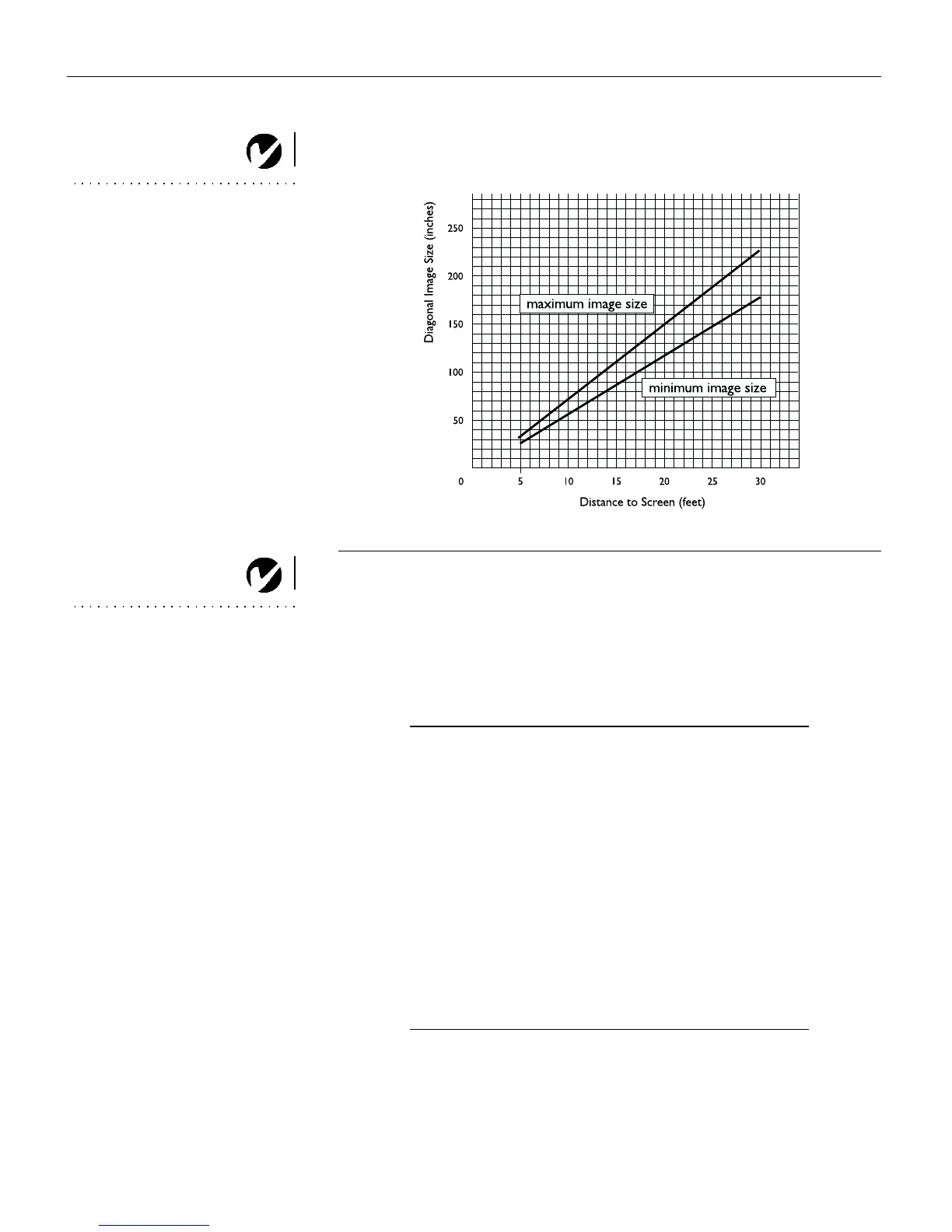

Projected Image Size
NOTE: Use the graph and tables
to help you determine projected
image sizes.
F
IGURE 24
Projected image size
NOTE: Visit our website at
www.infocus.com for an interactive
image size calculator. It is located
in the Technical Library in the
Service and Support section.
Ta b l e 1 :
Image Size, Width and Height for LP335-maximum image size
Distance to
Screen (feet)
Diagonal
(feet)
Width
(feet)
Height
(feet)
4.9 3.2 2.6 1.9
85.24.23.1
12 7.8 6.3 4.7
16 10.4 8.3 6.3
20 13.0 10.4 7.8
30 19.5 15.6 11.7
Ta b l e 2 :
Image Size, Width and Height for LP335-minimum image size
Distance to
Screen (feet)
Diagonal
(feet)
Width
(feet)
Height
(feet)
4.9 2.5 2.0 1.5
84.13.32.5
12 6.2 4.9 3.7
16 8.2 6.6 4.9
20 10.3 8.2 6.2
30 15.4 12.3 9.2
