connector panel may vary from actual product
Apple iMac G4 Connector Panel
NOTE: There are several variations of the iMac G4. If your panel
does not look like this, see next page.
Projector Connector Panel
M1-DA
Composite
S-video
L
R
RS-232
connector panel may vary from actual product
Video
ProjectorNet
Setup Requirements

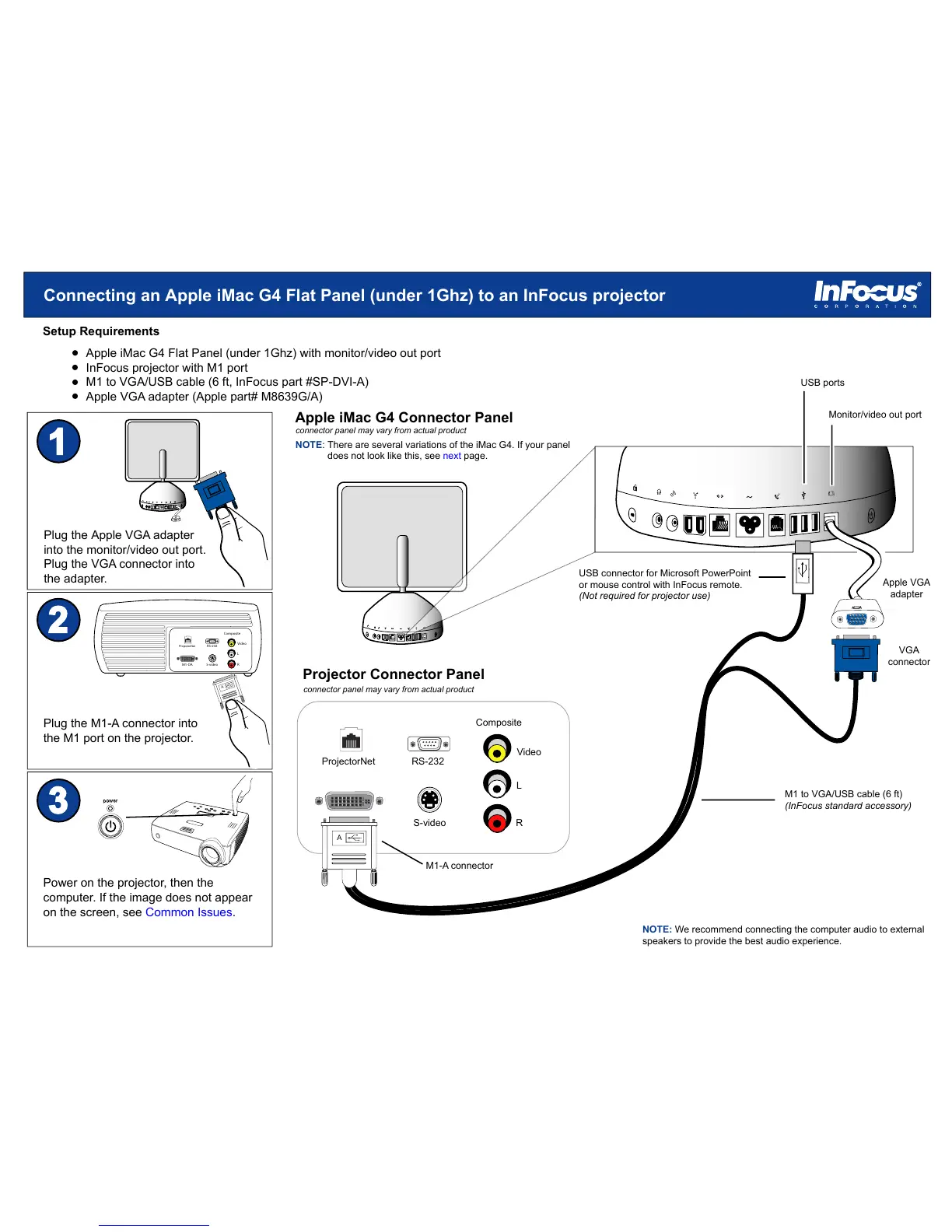

Connecting an Apple iMac G4 Flat Panel (under 1Ghz) to an InFocus projector
1
2
3
Power on the projector, then the
computer. If the image does not appear
on the screen, see Common Issues.
Apple iMac G4 Flat Panel (under 1Ghz) with monitor/video out port
InFocus projector with M1 port
M1 to VGA/USB cable (6 ft, InFocus part #SP-DVI-A)
Apple VGA adapter (Apple part# M8639G/A)
M1 to VGA/USB cable (6 ft)
(InFocus standard accessory)
NOTE: We recommend connecting the computer audio to external
speakers to provide the best audio experience.
A
M1-A connector
ProjectorNet
A
VGA
connector
Apple VGA
adapter
Plug the Apple VGA adapter
into the monitor/video out port.
Plug the VGA connector into
the adapter.
Plug the M1-A connector into
the M1 port on the projector.
USB connector for Microsoft PowerPoint
or mouse control with InFocus remote.
(Not required for projector use)
Monitor/video out port
USB ports
To Next Page
