2. INSTALLATION AND SETUP
NOTE: Before the installation of the unit, please inspect it. Be sure that nothing inside the
package is damaged. Please keep the original package in a safe place for future use.

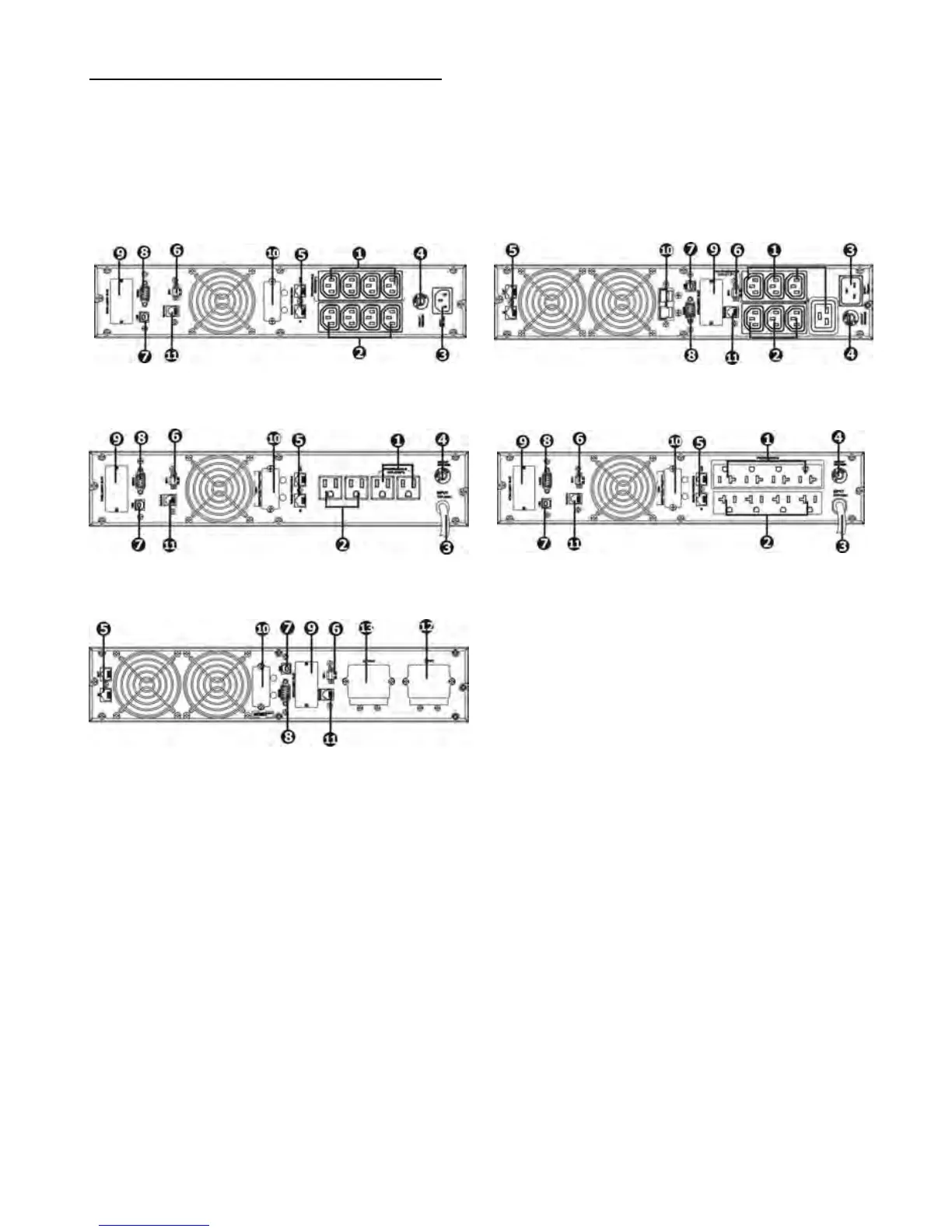

2.1 Rear panel view
E3 LCD RT IEC
800/1000/1500(S)/2000/2500(S)
E3 LCD RT IEC
3000/3500(S)
E3 LCD RT NEMA
800/1000/1500(S)/2000
E3 LCD RT NEMA
2500(S)
E3 LCD RT NEMA
3000/3500(S)
1 - Programmable outlets: connect to non-critical loads.
2 - Output receptacles: connect to mission-critical loads.
3 - AC input.
4 - Input circuit breaker.
5 - Network/Fax/Modem surge protection.
6 - Emergency Power Off function connector (EPO).
7 - USB communication port.
8 - RS-232 communication port.
9 - SNMP intelligent slot.
10 - External battery connector.
11 - External battery number detection port.
12 - Input terminal.
13 - Output terminal.
