PLACING TOOL IN SERVICE
NEW GRINDER TO ACCESSORY COLOR MATCHING GUIDE
Ingersoll–Rand has pioneered a new color code system
designed to:
1. Simplify the identification of rated tool speed via a
unique corresponding color match.
2. Easily communicate the appropriate backing pads and
accessories for each tool through a matching color
code system on the backing pads and/or other
corresponding Grinder accessories.

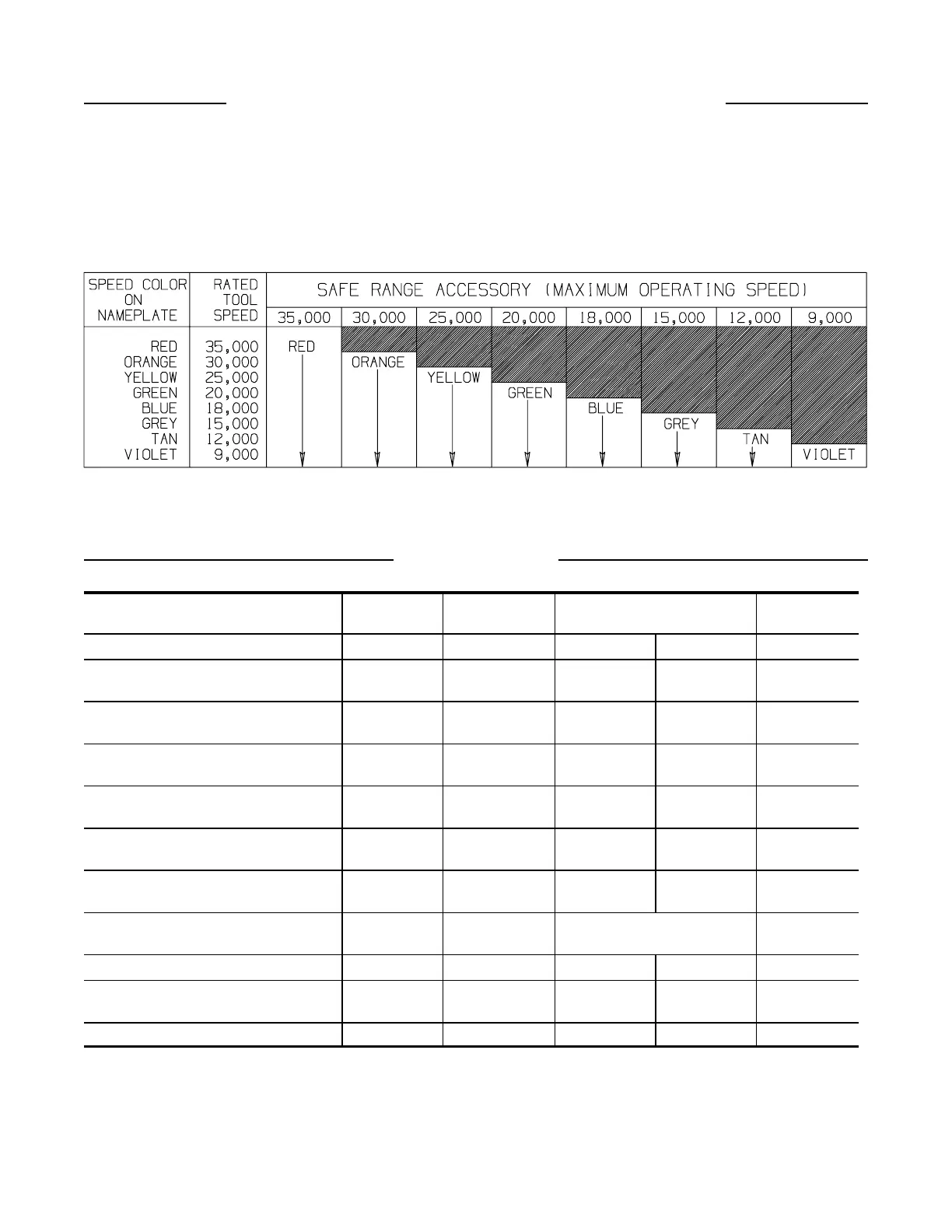

3. The chart below demonstrates the color code system
between the Grinder and the accessory.
(READ FROM LEFT TO RIGHT)
(Dwg. TPD1146–1)
SPECIFICATIONS
Model Free Speed
rpm
Collet
HSound Level
dB (A)
♦Vibrations
Level
Pressure Power m/s
2
TD250RG4MC–EU,
TD250RG4ML–EU
25,000 1/4” 82.0 – – – 2.5
TD200RG4MC–EU,
TD200RG4ML–EU
20,000 1/4” 81.0 – – – 3.8
TD180RG4MC–EU,
TD180RG4ML–EU
18,000 1/4” 81.2 – – – 2.7
TD120RG4MC–EU,
TD120RG4ML–EU
12,000 1/4” 78.0 – – – 3.5
TX250RG4MC–EU,
TX250RG4ML–EU
25,000 1/4” 81.0 – – – 0.9
TX180RG4MC–EU,
TX180RG4ML–EU
18,000 1/4” 81.0 – – – 1.4
Model Free Speed
rpm
Wheel Guard
HSound Level
dB (A)
♦Vibrations
Level
Pressure Power m/s
2
TX180RH63MC–EU,
TX180RH63ML–EU
18,000 3” – – – – – – – – –
TXD180RH63ML–EU 18,000 3” 78.5 – – – 8.6
H Tested in accordance with ANSI S5.1–1971 at free speed
♦ Tested in accordance with ISO8662–1 with artificial unbalanced load at 50% of rated speed for ungoverned tools and at
80% rated free speed for governed tools.
