Ingersoll-Rand Thermo King V-520 MAX 30 Maintenance Manual

Compressor Maintenance
68
Clutch Removal and Replacement
Clutch Removal
Armature Nut Removal – Wobble
Compressor
1. If armature dust cover is present, remove the 3
or 6 bolts holding it in place and remove
cover.
2. Insert pins of armature plate spanner into
threaded holes of armature assembly.
3. Hold armature assembly stationary while
removing retaining nut with 3/4 in., 19 mm, or
14 mm socket wrench.

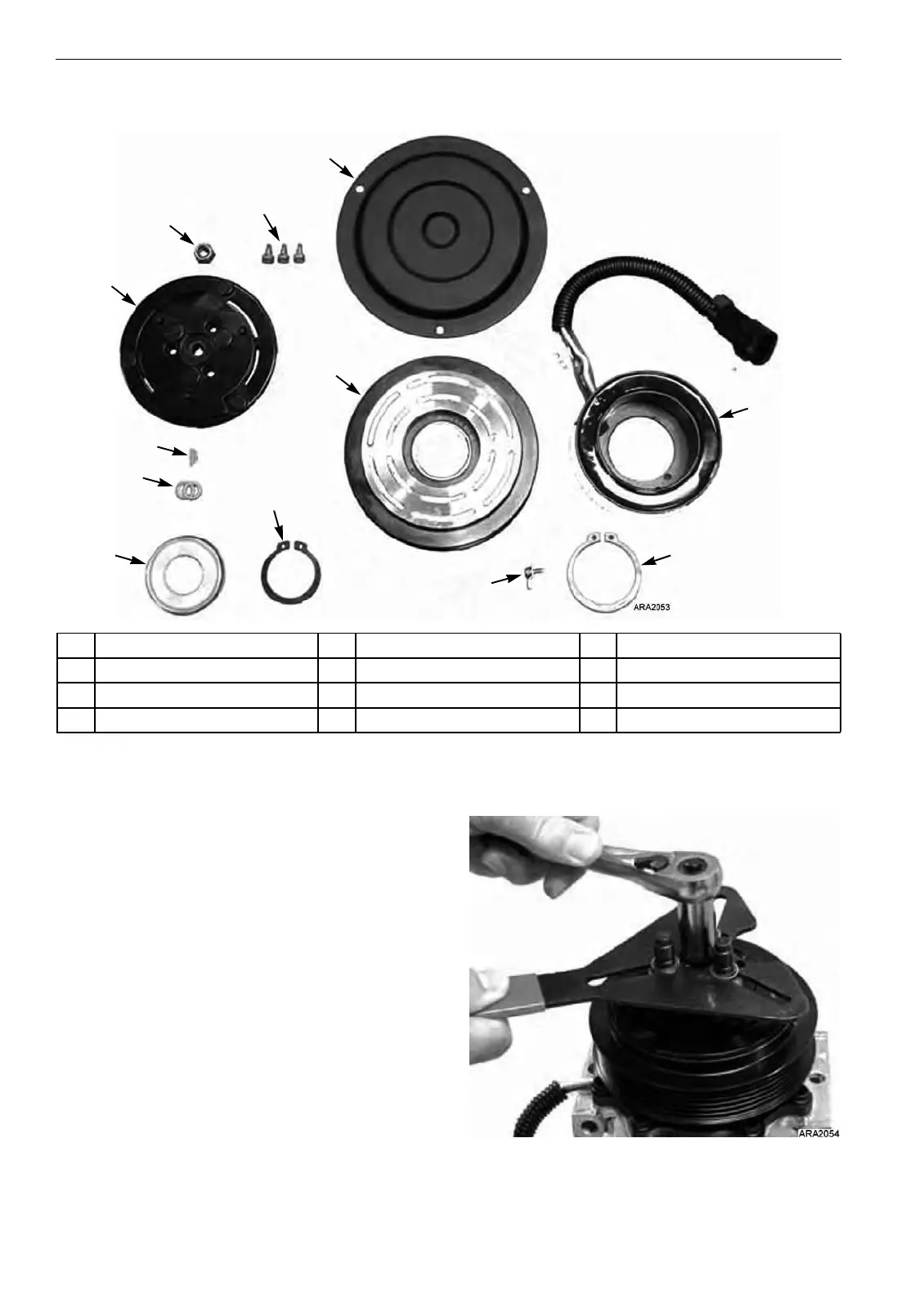

Figure 55: Armature Nut Removal –
Wobble Compressor
1. Shaft Nut 5. Shaft Key 9. Bearing Dust Cover (Optional)
2. Dust Cover Screws (Optional) 6. Pulley 10. Snap Ring
3. Dust Cover (Option) 7. Field Coil 11. Lead Wire Clamp
4. Armature Plate 8. Armature Shims 12 Coil Snap Ring
Figure 54: Clutch Components – Wobble Type Compressor
1
2
3
4
6
5
7
8
9
10
11
12
