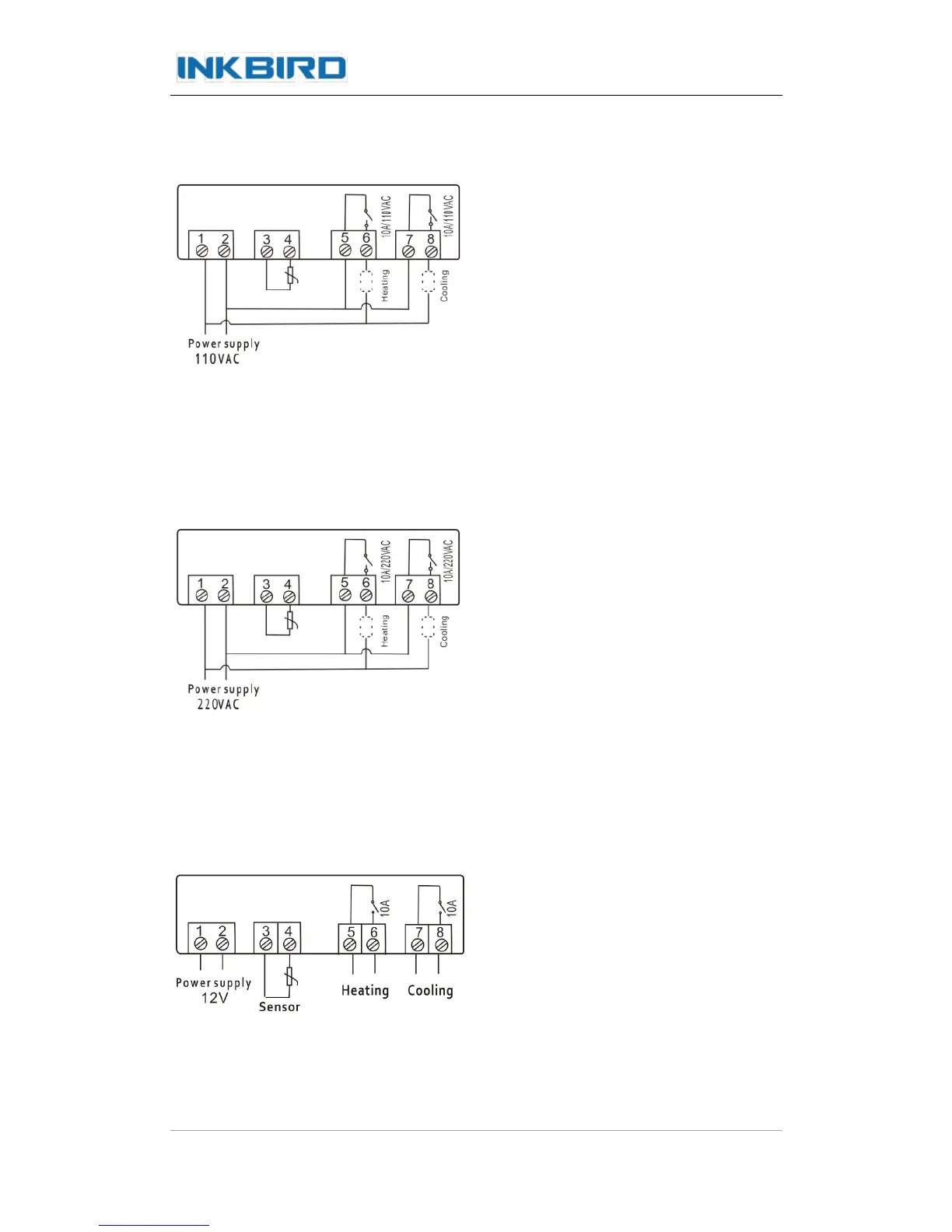

3. Wiring Diagram
3.1 ITC-1000F-110V
Note:
 Strictly distinguish interface of relay,sensor and power
 Strictly distinguish connection of sensor and power
 Sensor down-lead and power wire should be kept a proper distance
3.2 ITC-1000F-220V
Note:
 Strictly distinguish interface of relay,sensor and power
 Strictly distinguish connection of sensor and power
 Sensor down-lead and power wire should be kept a proper distance
3.3 ITC-1000F-12V
Note:
 Strictly distinguish interface of relay,sensor and power
 Strictly distinguish connection of sensor and power
 Sensor down-lead and power wire should be kept a proper distance
