BATTERY REPLACEMENT
6 3150e
On some Asian and European vehicles the DLC is located
behind the “ashtray” (the ashtray must be removed to access
it) or on the far left corner of the dash. If the DLC cannot be
located, consult the vehicle’s service manual for the location.
BATTERY REPLACEMENT
Replace batteries when the battery symbol is visible on display
and/or the 3 LEDS are all lit and no other data is visible on screen.
1. Locate the battery cover on the back of the Diagnostic Tool.
2. Slide the battery cover off (use your fingers).
3. Replace batteries with three AA-size batteries (for longer life, use
Alkaline-type batteries).
4. Reinstall the battery cover on the back of the Diagnostic Tool.

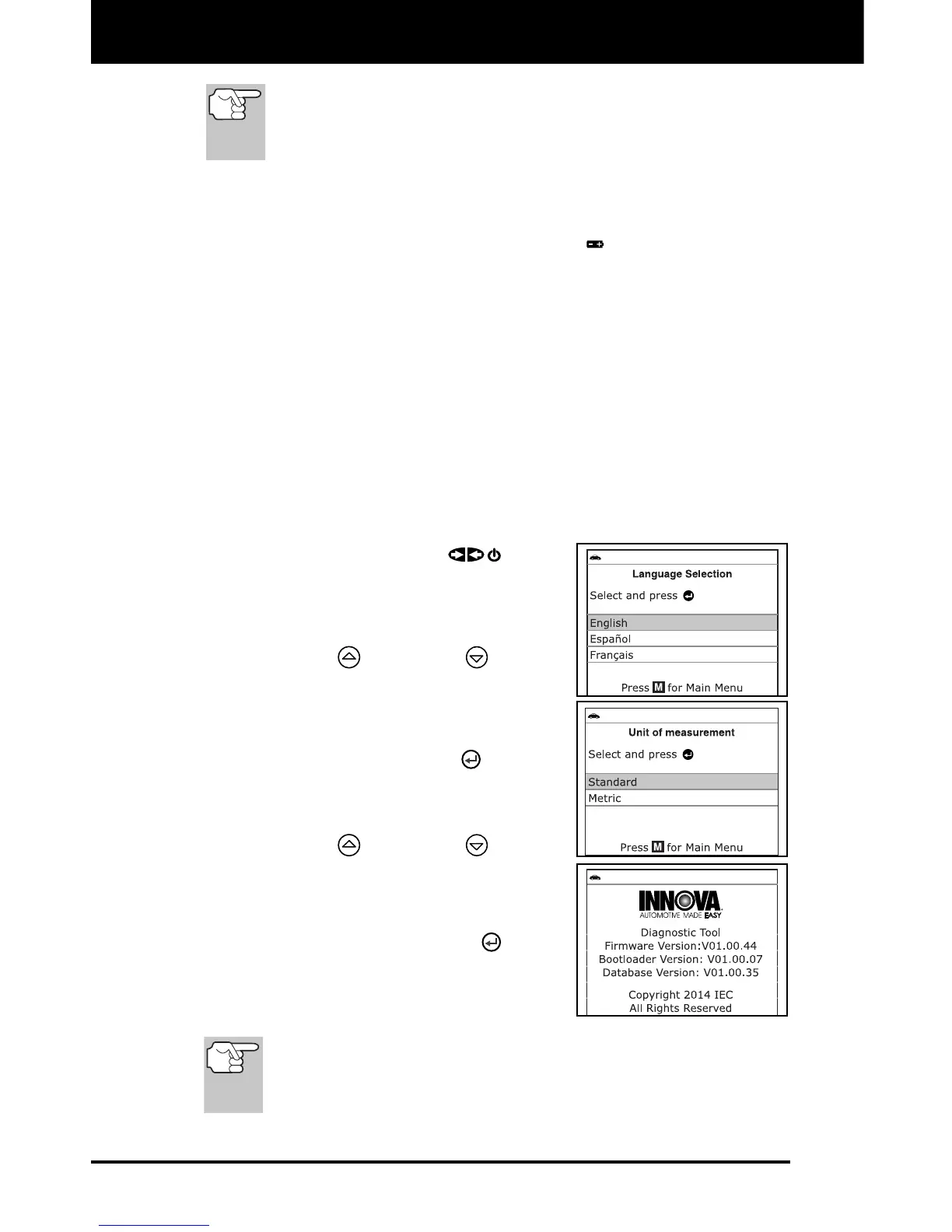

Adjustments After Battery Installation
The first time the Diagnostic Tool is turned on, you must select the
desired display language (English, French or Spanish) and unit of
measurement (Standard or metric) as follows:
1. Press the POWER/LINK
button
to turn the Diagnostic Tool “ON.”
The Select Language screen dis-
plays.
2. Use the UP
and DOWN buttons,
as necessary, to highlight the desired
display language.
3. When the desired display language is
selected, press the ENTER
button to
confirm your selection.
The Select Unit screen displays.
4. Use the UP
and DOWN buttons,
as necessary, to highlight the desired
unit of measurement.
5. When the desired unit of measurement
is selected, press the ENTER
button
to confirm your selection.
The Diagnostic Tool’s Firmware
Version screen displays.
After the initial language and unit of measurement selections
are performed, these, as well as other settings, can be
changed as desired. Proceed to “ADJUSTMENTS AND
SETTINGS” on page 126 for further instructions.
