2 Installation
- 9 -
2 Installation
2.1 Installation Environment
Item Specications
Ambient
temperature
Running: -5-55° C, storage: -25-75° C
Relative
humidity
Running: 5-95%RH (non-condensing)
Vibration
Frequency
(Hz)
Acceleration
(m/s
2
)
One-way
amplitude
(mm)
Ten times
in each
of the X,
Y and Z
direction
for 80
minutes
When DIN rail is
installed
10-57 -- 0.035
57-150 4.9 --
When PLC
is directly
installed
10-57 -- --
57-150 9.8 0.075
Working
environment
Do not use the PLC in environments with strong erosive and
ammable gases or conductive dust.
Elevation Below 2000m
2.2 Installation Position and Space

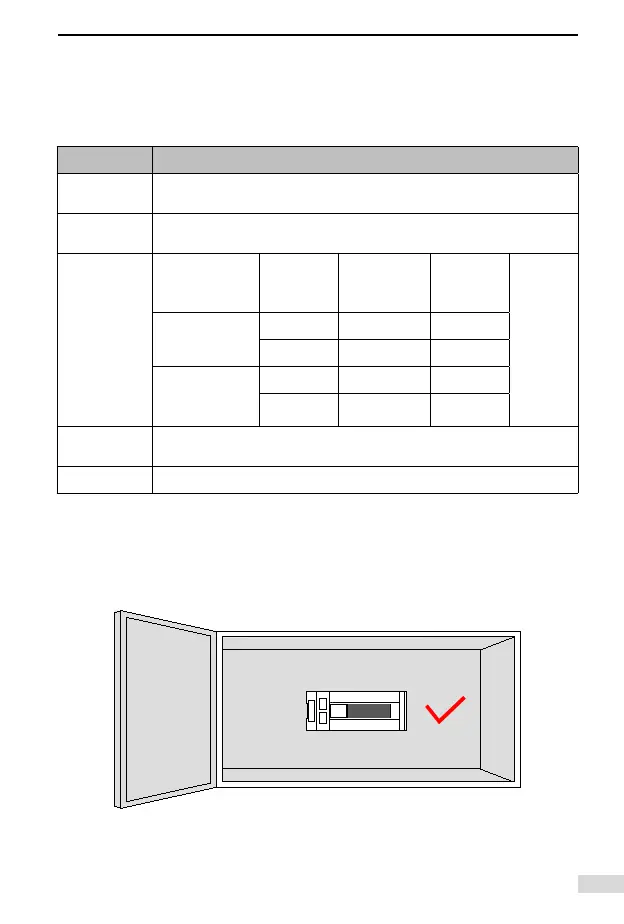

The PLC should be installed in the correct position horizontally as
shown in the following gure.
