3 Wiring
- 19 -
NOTE
The preceding 󶍾gure takes terminal layout of H
3U
-
1616MT/R as an example. The wiring of other models is
subject to the actual terminal layout

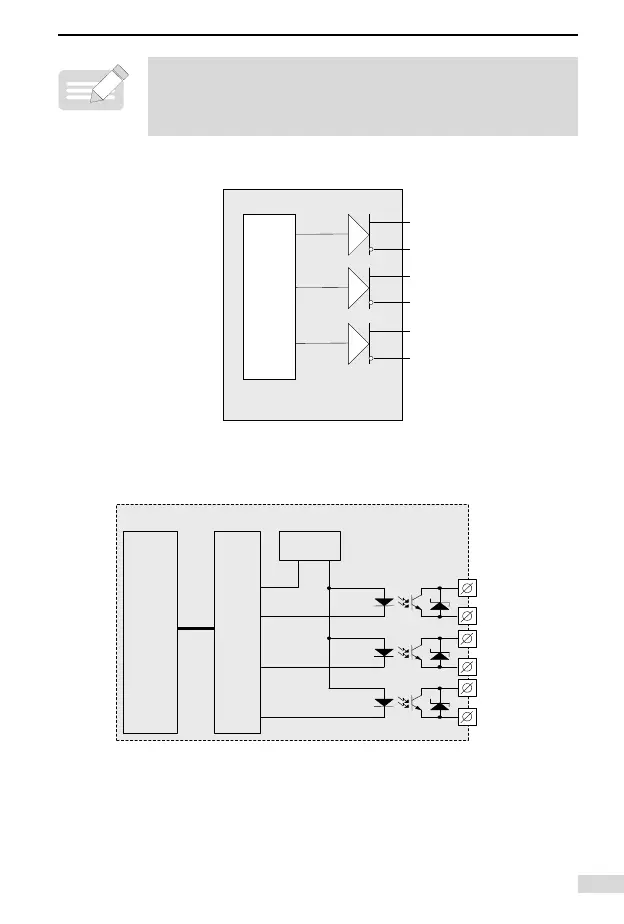

3.3.3 Wiring of Hi-Speed Di󶍽erential Outputs
FP1+
FP1
RP1+
FP1-
RP1
RP1-
CPU
in the
PLC
Interior of the PLC
3.3.4 Wiring of Normal Transistor Zero-Clearing NPN
Outputs
DC5 V power supply
Logic processing circuit
Equivalent circuit in the PLC
Output driving circuit
CLR0+
CLR0-
CLR1+
CLR1-
CLR2+
CLR2-
The normal transistor zero-clearing NPN output is the motion control
pin of H
3U
-0808PMRTA. It is designed for error resetting signal of servo.
It is generally used for original point returning and electronic cam
synchronization signal output.
