Inovance IS580T040 User Manual

7 ISMG Servo Motor
- 61 -
7�2 Physical Appearance and Mounting Dimensions
7�2�1 ISMG1 (200 x 200 Base/Force Ventilated)

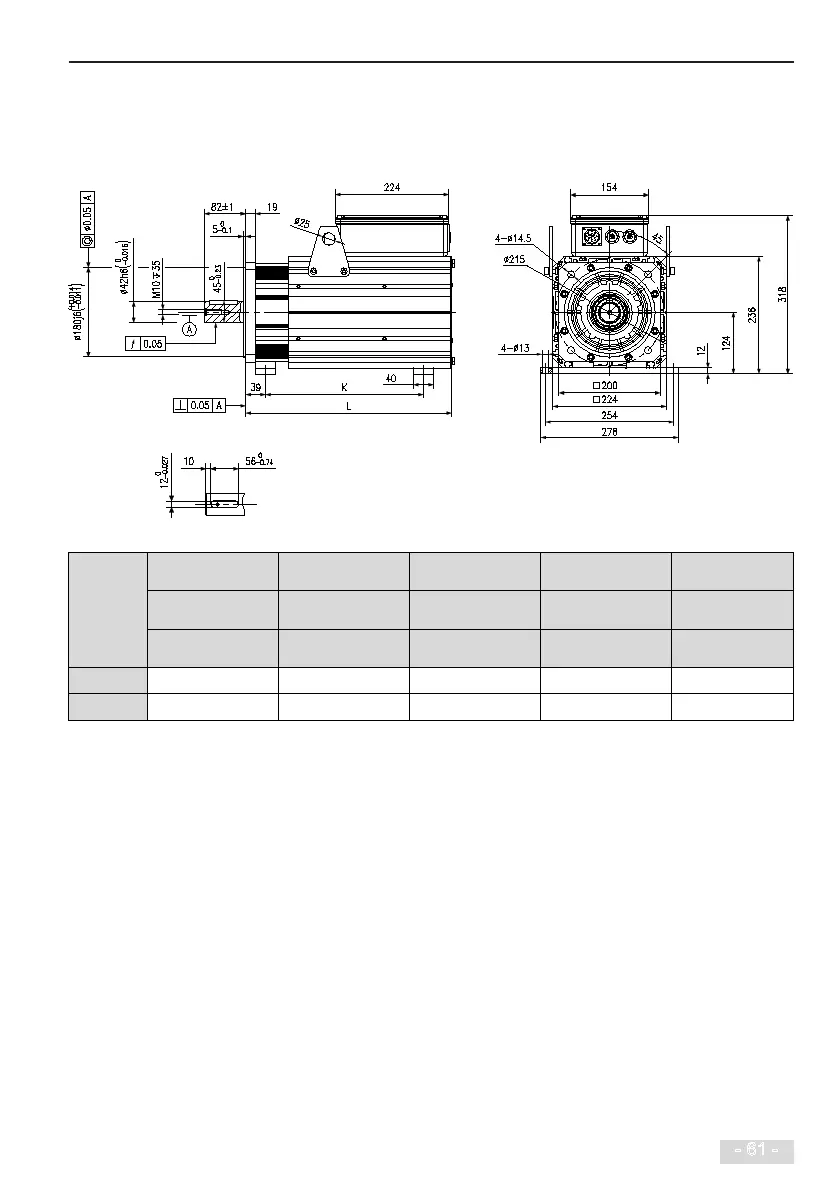

Figure 7-1 Physical appearance and mounting dimensions of the ISMG1 (200 x 200 base/force ventilated)
Standard configuration: A-type round-end flat key 12 x 8 x 56
Refer to GB/T 1096.
Table 7-1 Mounting dimensions of ISMG1 (200 x 200 base/force ventilated)
Servo Motor
Model
ISMG1-95C15CD-
R131FA
ISMG1-14D15CD-
R131FA
ISMG1-17D15CD-
R131FA
ISMG1-22D15CD-
R131FA
ISMG1-30D15CD-
R131FA
ISMG1-11D17CD-
R131FA
ISMG1-16D17CD-
R131FA
ISMG1-20D17CD-
R131FA
ISMG1-24D17CD-
R131FA
ISMG1-34D17CD-
R131FA
ISMG1-12D20CD-
R131FA
ISMG1-18D20CD-
R131FA
ISMG1-23D20CD-
R131FA
ISMG1-28D20CD-
R131FA
ISMG1-41D20CD-
R131FA
K 285 312 354 396 471
L 375 410 445 480 550

Inovance IS580T040 Specifications

General

Model	IS580T040
Series	IS580
Type	Servo Drive
Protection Class	IP20
Control Mode	Torque, Speed, Position
Communication Protocol	CANopen
Feedback	Incremental Encoder, Absolute Encoder
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
