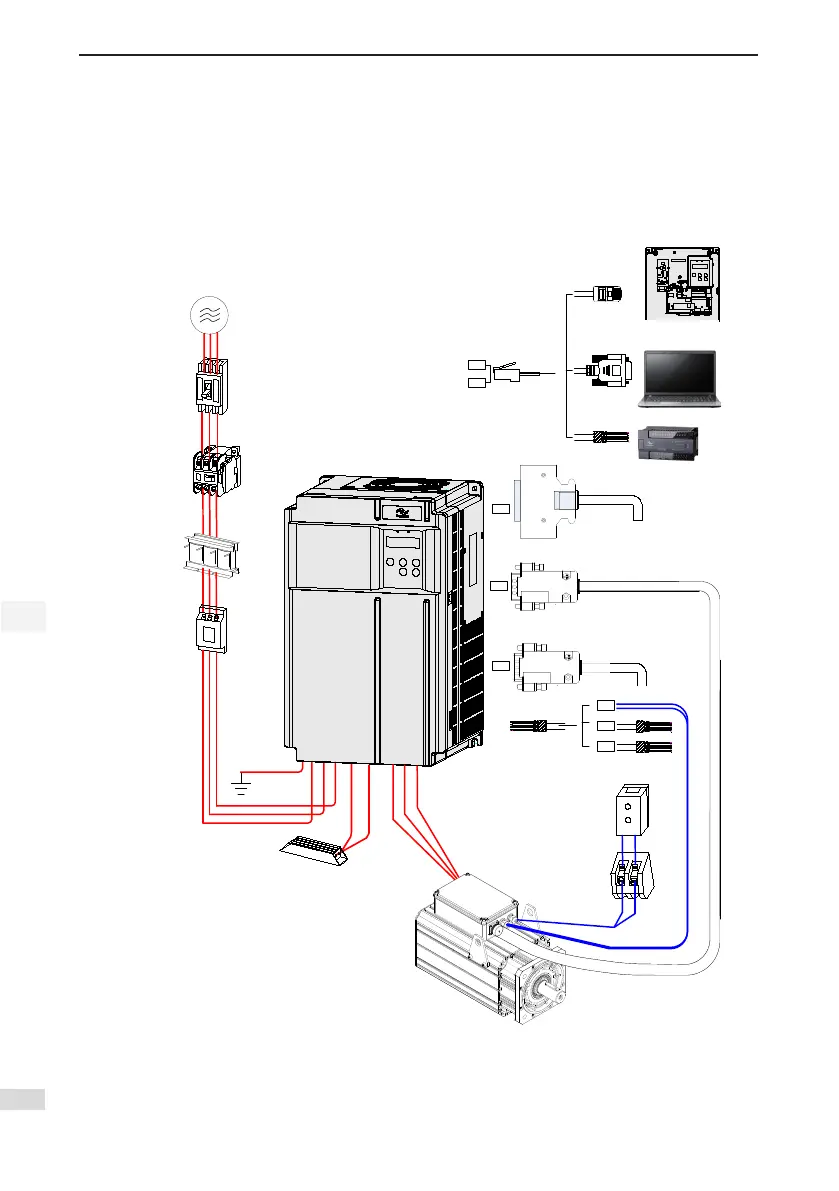

Circuit breaker
for wiring
Noise filter
Electromagnetic
contactor
Turn ON/OFF power of
the servo drive. Install
a surge suppressor
when using this
contactor
.
Three-phase
380 VAC
AC reactor
Regenerative resistor
Connect an external regenerative
resistor between BR and (+) when
bus capacitance is insufficient.
Servo motor main
circuit cable
(prepared by user)
Servo motor encoder cable
Servo drive control signal cable
(prepared by user)
Servo drive to PC communication cable
Note 1
CN1
CN2
CN4
CN3
Fully closed-loop
external encoder cable
(prepared by user)
CN5
Analog I/O cable
(prepared by user)
R S
T
U V
W
BR
(+)
220
VAC
PTC cable
Electromagnetic
contactor
Fan power
Used for forced
ventilation motor
CN8
CN7
CN6
(Note)
Communication cable for
multi-drive parallel connection
Servo drive to PLC communication cable
