INSIGHT DA025 - 页面 13

10
NOTE: WRENCH TIGHTEN SCREWS.

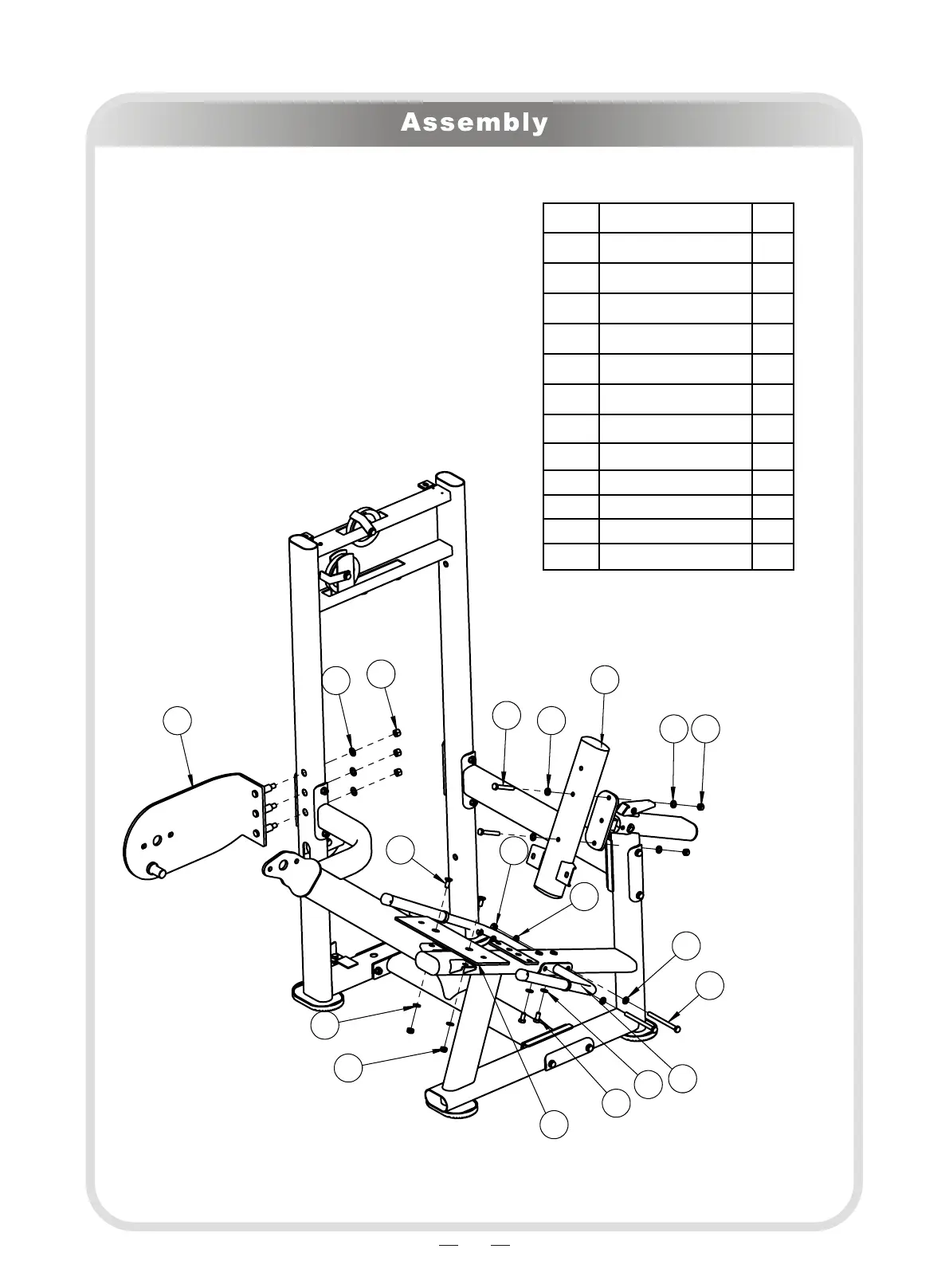

STEP 2 | USER FRAME INSTRUCTIONS & NOTES
89
90
74
92
92
92
92
92
73
80
88
61
88
92
88
11
30
9
5
ITEM NO DESCRIPTION QTY
2
2
1
1
1
1
2
2
3
6
3
12
Hex Bolt M10*125
Nylon Lock Nut M10
Nylon Lock Nut M12
Flat Washer
73
61
11
30
9
5
74
80
88
89
90
92
Hex Bolt M10*20
Hex Bolt M10*70
Flat Washer
Flat Head Cap Screw M10*25
Main Bracket
Back pad support
handle
Seat Pad Plate
