INSIGHT DA025 - Assembly Steps

9

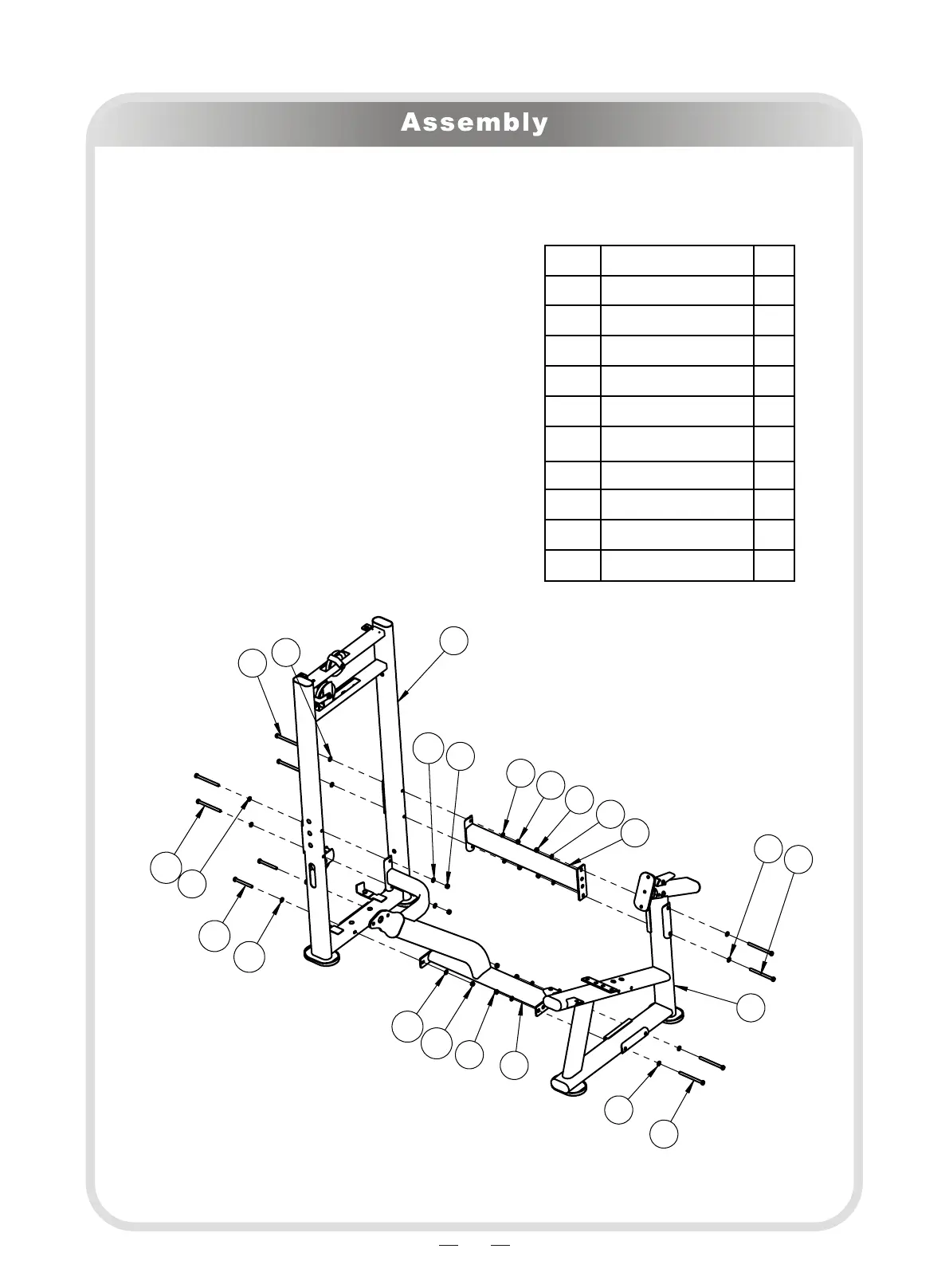

STEP 1 | USER FRAME INSTRUCTIONS & NOTES
NOTE: WRENCH TIGHTEN SCREWS.
ITEM NO DESCRIPTION QTY
79
80
81
88
89
92
2
2
2
4
10
18
Hex Bolt M10*95
Hex Bolt M10*125
Hex Bolt M10*130
Nylon Lock Nut M10
Nylon Lock Nut M12
Flat Washer
79
92
92
88
81
81
92
92
92
92
92
92
88
88
88
88
92
80
89
1
4
3
2
1 1
1
1
1
2
3
4
Weight Stack Frame
Standing Main Frame
Top Frame
Seat Support
