G SERIES PILOT’S GUIDE .
INSIGHT INSTRUMENT CORPORATION BOX 122, FORT ERIE, ONTARIO, L2A 5M6
12

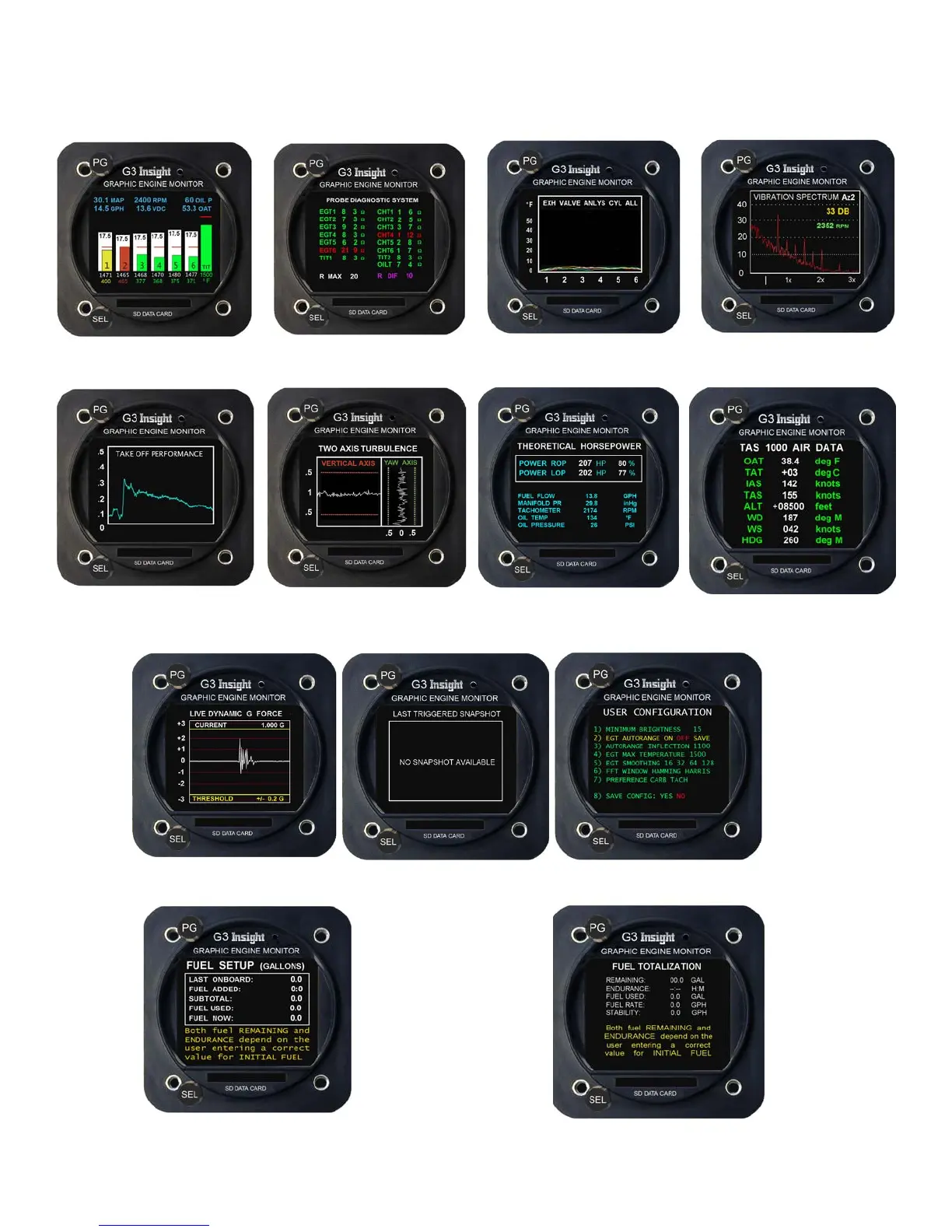

G3 and G4 Screens In Order
1 - Main Screen 2 - Probe Diagnostic Screen
3 - EGT Periodic Temperature
Variation Screen
4 - Engine Vibration Screen
5 - Take-Off Performance Screen 6 - Turbulence Screen
7 - Theoretical Horsepower Screen
11 - User Configuration Screen
(Defaults to fuel function screen
when total fuel is set)
13 - Fuel Function Screen
9 - Dynamic G-Force Screen
10 - Dynamic Snapshot Screen
8 - Air Data Screen
12 - Enter Total Fuel Screen
A G4 single is exactly the same as a G3 only with a bigger display and different knob locations!
