INSIGHT G SERIES User Manual

G SERIES PILOT’S GUIDE .
INSIGHT INSTRUMENT CORPORATION BOX 122, FORT ERIE, ONTARIO, L2A 5M6
16

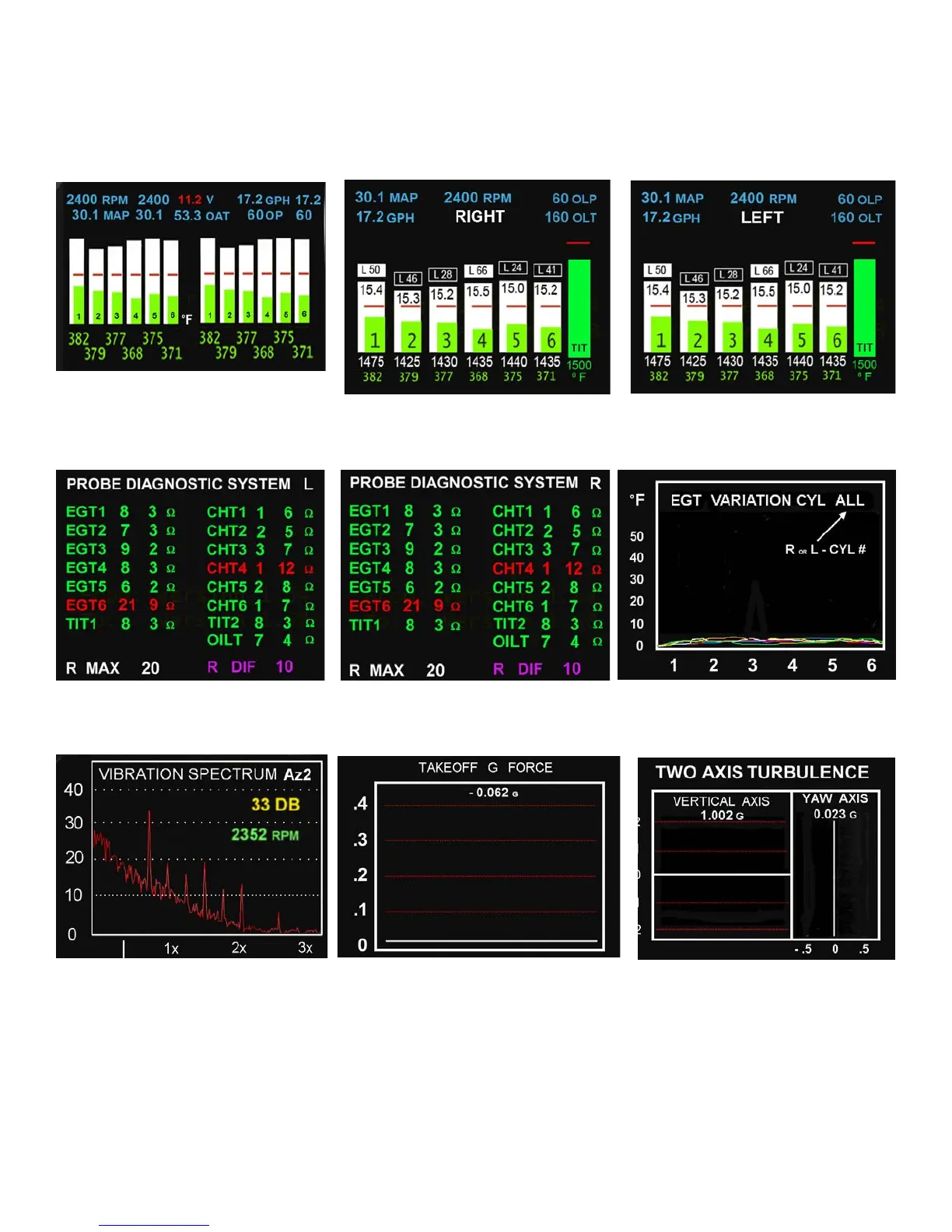

G4 Twin Screens In Order PG 1
1- Twin engine page
From any page push and hold SEL
knob to return to Twin page
2- Turn SEL to right for right
engine
Tap SEL to clear lean boxes
3- Turn SEL to left for
left engine
Tap SEL to clear lean boxes
4- Left engine probe page
5- Right engine probe page
6- EGT Variation page
Turn SEL knob to view all cylinders on
right and left engine
7- Vibration spectrum page
PUSH SEL knob to view all vibration
pages on right and left engine
There are 6 screens per engine to
examine, each of the primary axis (x,
y and z) and an averaged version of
each.
8- Takeoff G Force page
9- Turbulence
G Force page
