NS-19D220NA16/NS-19D220MX16 Insignia 19" 720p 60Hz LED TV
www.insigniaproducts.com

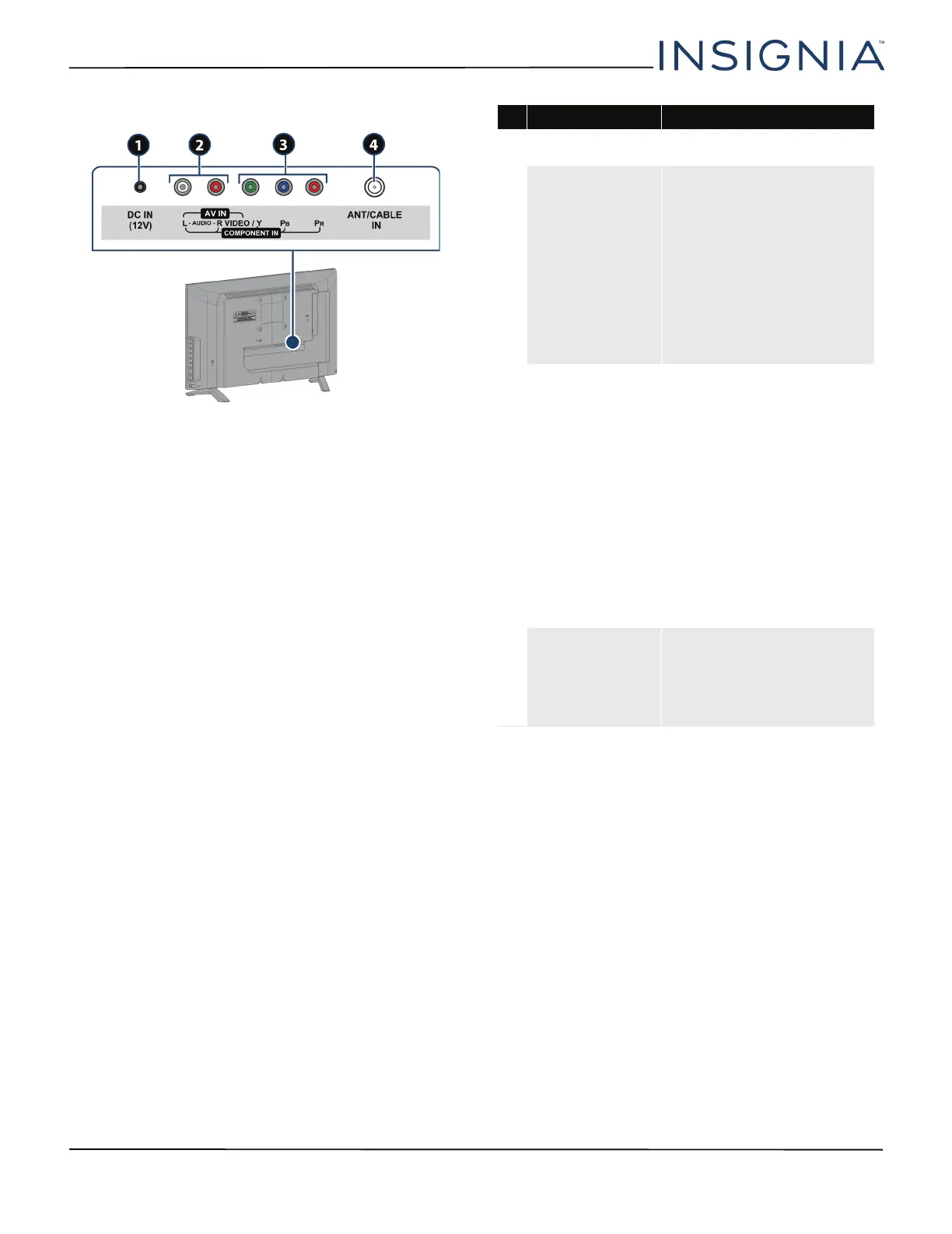

Back jacks
# Item Description
1 DC IN (12V)
Plug the AC power adapter into
this connector.
2
L and R AUDIO
Connect the audio for a
component video device to
these jacks. For more
information, see Component
video (better) on page 14, 19, or
22.
OR
Connect the audio for an AV
device to these jacks. For more
information, see AV (composite
video) (good) on page 15, 20,
or 23.
3
VIDEO / Y, P
B, PR
OR
VIDEO / Y
The component video and AV
jacks are shared. You can
connect only one component
video or AV device at a time.
Connect the video for a
component video device to the
VIDEO / Y, P
B, and PR jacks. For
more information, see
Component video (better) on
page 14, 19, or 22.
OR
Connect the video for an AV
device to the VIDEO / Y jack. For
more information, see AV
(composite video) (good) on
page 15, 20, or 23.
4
ANT/CABLE IN
Connect an antenna or cable TV
to this jack. For more
information, see Coaxial (good)
on page 16 or Connecting an
antenna or cable TV (no box) on
page 17.
