TV components
This section contains information about:
•Package contents
•Front
•Side jacks
•Back jacks
• Remote control
Package contents
•24" LED TV
• Remote control and batteries (2 AAA)
•TV stands (2)
• TV stand screws (2)
• Quick Setup Guide
• Important Information

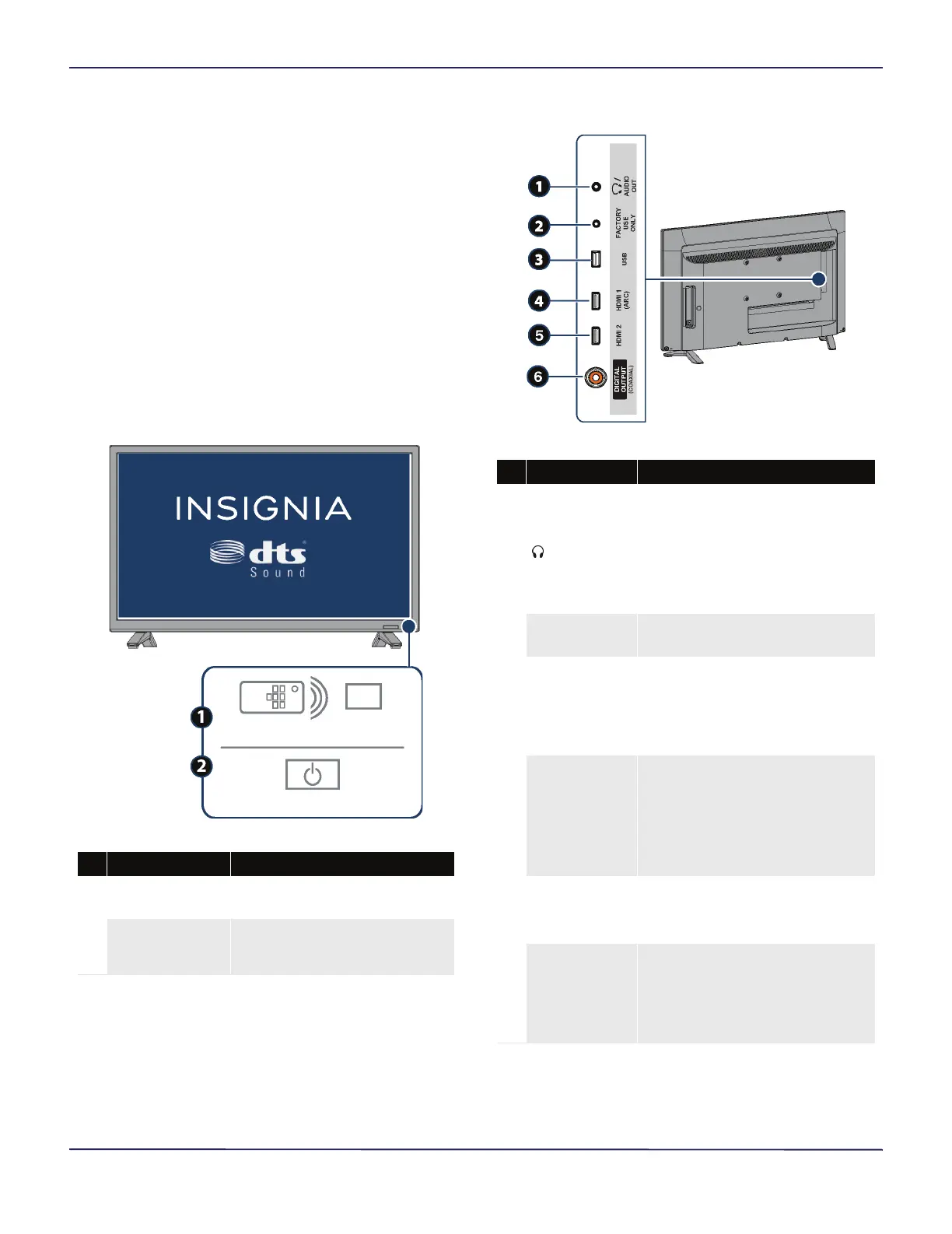

Front
Side jacks
# Item Description
1
Remote control
sensor
Receives signals from the remote
control. Do not block.
2
Power indicator
Turns off when your TV is on.
Lights red when your TV is off
(standby mode).
# Item Description
1 /AUDIO OUT
Connect headphones, a soundbar,
analog speaker system, or a home
theater system to this jack to listen
to TV audio through external
speakers. For more information, see
Connecting headphones on
page 24 or Analog audio on
page 26.
2
FACTORY USE
ONLY
Do not connect anything to this
jack.
3 USB
Connect a USB flash drive to this
jack to view compatible JPEG
picture files. For more information,
see Connecting a USB flash drive on
page 23 and “Using a USB flash
drive” on page 40.
4
HDMI 1 (ARC)
Connect an HDMI device to this
jack. For more information, see
HDMI (best) on page 14, 18, or 20 or
Connecting a computer on page 22.
OR
Connect an ARC-enabled home
theater receiver to this jack.
5 HDMI 2
Connect an HDMI device to this
jack. For more information, see
HDMI (best) on page 14, 18, or 20 or
Connecting a computer on page 22.
6
DIGITAL
OUTPUT
(COAXIAL)
Connect a soundbar, digital speaker
system, or home theater system to
this jack to listen to TV audio
through external speakers. For
more information, see Digital audio
on page 25.
