Insignia NS-24D310MX17 User Manual

15
24" 720p 60Hz LED TV
www.insigniaproducts.com
AV (good)
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the VIDEO jack and L and R AUDIO jacks on the back of your TV and to the
AV OUT jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to highlight AV, then press ENTER.
Notes
Cables are often color-coded to match color-coded jacks.
Important
When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.

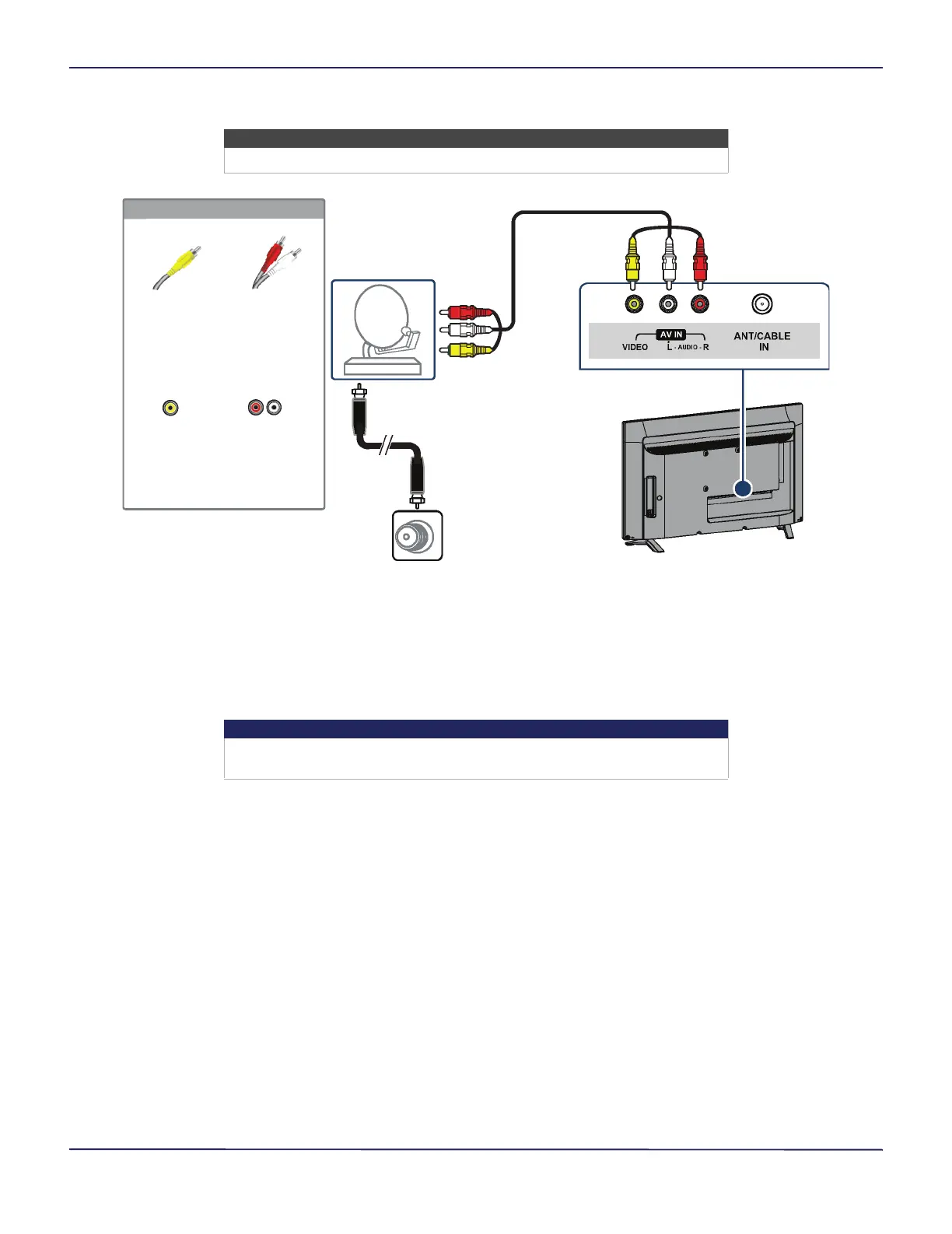

Cable or
satellite box
AV cable
Back of TV
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
On your TV
Cable
wall jack

Insignia NS-24D310MX17 Specifications

General

Brand	Insignia
Model	NS-24D310MX17
Category	LED TV
Language	English
