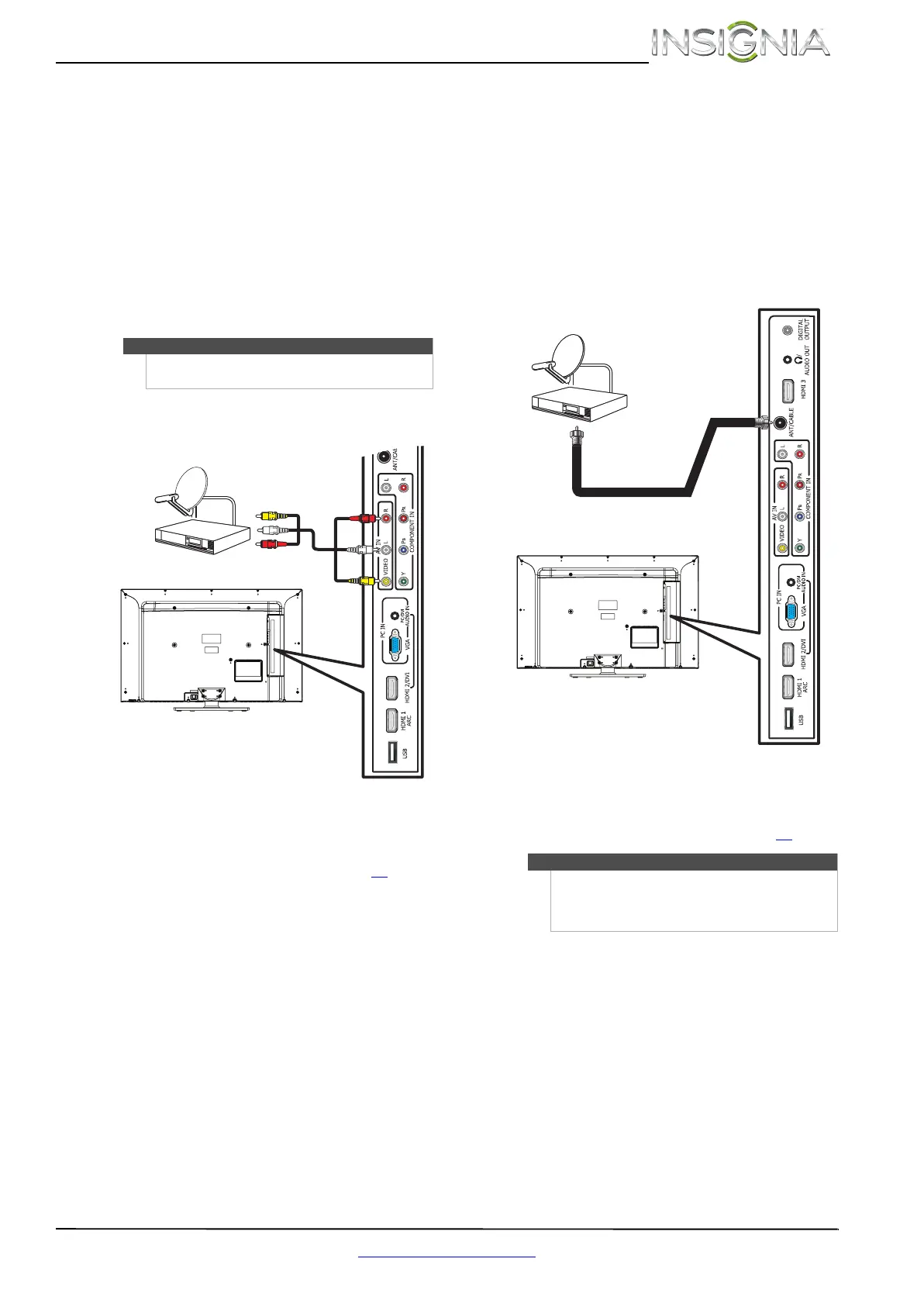

Using composite video (good)
To connect a cable or satellite box using
composite video:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable or satellite
box.
3 Connect an AV cable (not provided) to the
AV IN VIDEO jack and AV IN L /R audio jacks on
the side of your TV and to the composite video
and audio out jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
5 Go through the Setup Wizard on page 19
.
Using coaxial (good)
To connect a cable or satellite box using coaxial:
1 Make sure that your TV’s power cord is
unplugged, and all connected equipment is
turned off.
2 Connect the incoming cable from the cable wall
jack to the cable-in jack on the cable or satellite
box.
3 Connect a coaxial cable (not provided) to the
ANT/CABLE jack on the side of your TV and to
the coaxial out jack on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet,
turn on your TV, then turn on the cable or
satellite box.
5 Go through the Setup Wizard on page 19
.
Note
When you connect the audio using the AV IN L/R
audio jacks, the audio output is analog.
Cable or satellite box
AV cable
Cables are often color-coded
to match color-coded jacks.
Side of TV
Notes
• Use a coaxial cable to eliminate interference and
noise from radio waves.
• Do not bundle the coaxial cable with the power
cord or other cables.
Cable or satellite box
Coaxial cable
Side of TV
To Next Page
