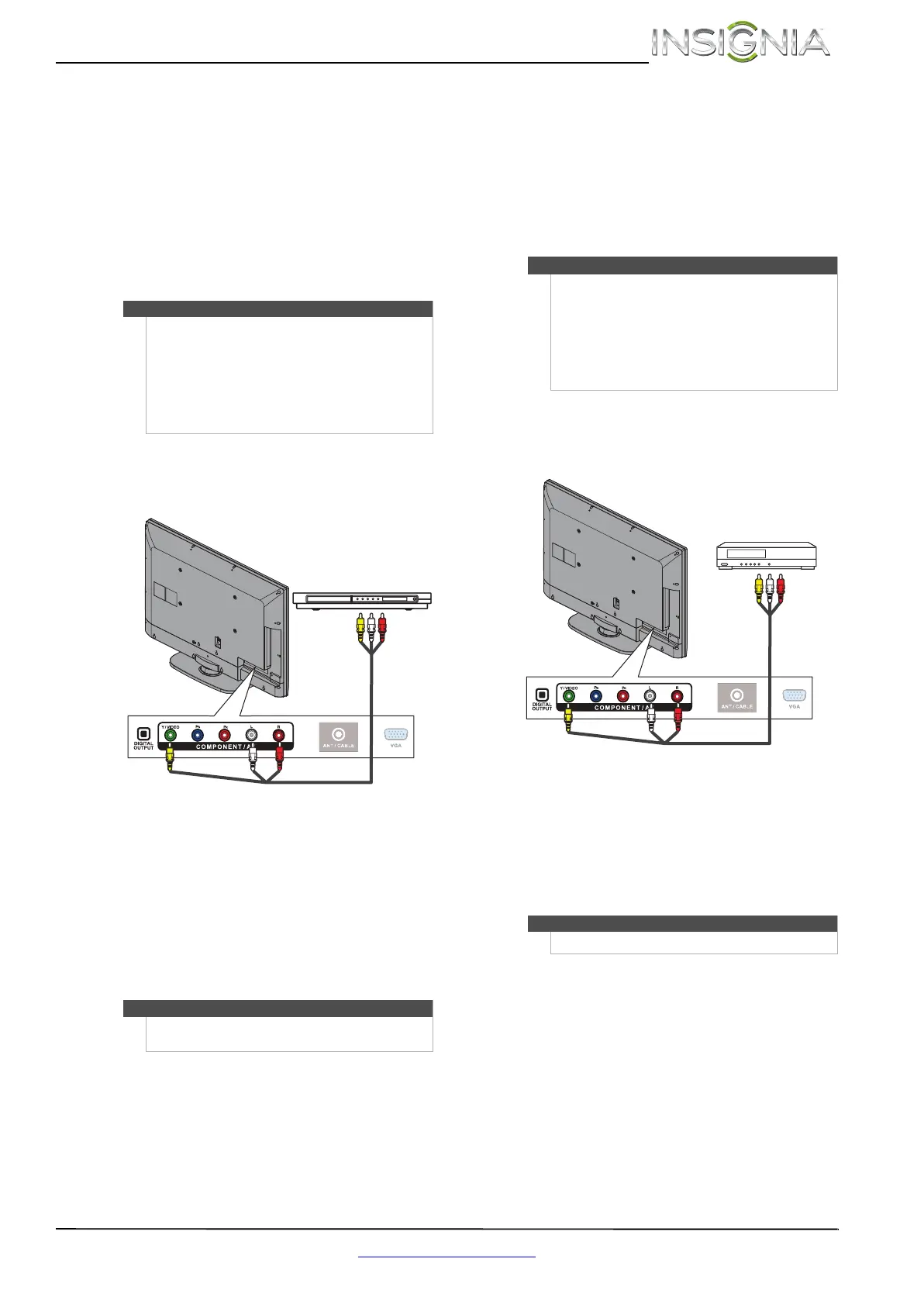

Using composite video (good)
To connect a DVD or Blu-ray player using
composite video:
1 Make sure that your TV’s power cord is
unplugged and the DVD or Blu-ray player is
turned off.
2 Connect an AV cable (not provided) to the
COMPONENT/AV Y/Video jack and
L and R audio jacks on the back of your TV and
to the AV OUT jacks on the DVD or Blu-ray
player.
3 Plug your TV’s power cord into a power outlet,
then turn on your TV.
4 Turn on the DVD or Blu-ray player, then set it to
the correct output mode. For more information,
see the documentation that came with the
player.
5 Press INPUT to open the Input Source list.
6 Press
S or T to select Component or AV, then
press ENTER.
Connecting a VCR
To connect a VCR:
1 Make sure that your TV’s power cord is
unplugged and the VCR is turned off.
2 Connect an AV cable (not provided) to the
COMPONENT/AV Y/VIDEO and L and R audio
jacks on the back of your TV and to the AV OUT
jacks on the VCR.
3 Plug your TV’s power cord into a power outlet,
then turn on your TV and the VCR.
4 Press INPUT to open the Input Source list.
5 Press
S or T to select Component or AV, then
press ENTER.
6 Insert a videotape in the VCR, then press PLAY
on the VCR.
Note
•The L and R audio jacks provide the audio
connection for a component video device
connected to the COMPONENT/AV Y/VIDEO,
P
B, and PR video jacks or for a composite video
device connected to the
COMPONENT/AV Y/VIDEO jack.
• When you connect the audio using the
L and R audio jacks, the audio output is analog.
Notes
You can also press VIDEO to select the DVD or Blu-ray
player.
DVD or Blu-ray player
Cables are often color-coded to match
color-coded jacks.
Note: The yellow video connector on
the AV cable connects to the green
COMPONENT/AV Y/VIDEO jack.
AV cable
Back of TV
Note
•The L and R audio jacks provide the audio
connection for a component video device
connected to the COMPONENT/AV Y/VIDEO,
P
B, and PR video jacks or for a composite video
device connected to the
COMPONENT/AV Y/VIDEO jack.
• When you connect the audio using the L and R
audio jacks, the audio output is analog.
Note
You can also press VIDEO to select the VCR.
VCR
Cables are often color-coded to match
color-coded jacks.
Note: The yellow video connector on
the AV cable connects to the green
COMPONENT/AV Y/VIDEO jack.
AV cable
Back of TV
